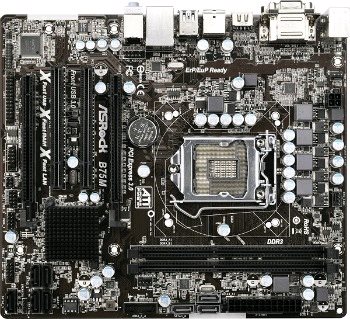

    MB ASrock B75M R2.0 (1155)

    MB ASrock B75M R2.0 (1155)

    Vypredané

    ASRock B75M R2.0, B75, DualDDR3-1600, SATA3, SATA2, HDMI, GBLAN, mATXZobraziť viac
    Produkt je vyradený !

    V našej ponuke nájdete podobné modely. S výberom pomôžeme.

    Kód tovaru

    156164

    PN kód

    B75M R2.0

    Výrobca
    Záruka

    24 mesiacov

    Popis produktu

    MB ASrock B75M R2.0 (1155)

    CPU
    - Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package
    - Supports Intel® Turbo Boost 2.0 Technology
    - Supports Hyper-Threading Technology

    Chipset
    - Intel® B75
    - Supports Intel® Small Business Advantage
    - Supports Intel® Rapid Start Technology and Smart Connect Technology
    *Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

    Memory
    - Dual Channel DDR3 memory technology
    - 2 x DDR3 DIMM slots
    - Supports DDR3 2200(OC)***/1600/1333/1066 non-ECC, un-buffered memory
    - Max. capacity of system memory: 16GB*
    - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    **DDR3 1600 with Intel® Ivy Bridge CPU, DDR3 1333 with Intel® Sandy Bridge CPU.
    ***DDR3 2200(OC) is only supported with Intel® Core™ i7 3770K.

    BIOS
    - 64Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 1.1 Compliance Wake Up Events
    - Supports jumperfree
    - SMBIOS 2.3.1 Support
    - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
    Audio, Video and Networking

    Graphics
    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU
    - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU
    - Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU
    - Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU
    - Multi VGA Output options: D-Sub, DVI-D and HDMI
    - Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
    - Supports DVI with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
    - Supports HDCP function with DVI and HDMI ports
    - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

    *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    **Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.
    ***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.

    Audio
    - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

    LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111E
    - Supports Wake-On-LAN
    - Supports LAN Cable Detection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE

    Slots
    - 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
    - 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)
    - 2 x PCI slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™

    *PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.

    Storage
    - 1 x SATA3 6.0 Gb/s connector by Intel® B75, supports NCQ, AHCI and Hot Plug functions
    - 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions

    USB 3.0
    - 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to 5Gb/s
    - 1 x Front USB 3.0 header (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s

    Connector
    - 5 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions
    - 3 x SATA3 6.0 Gb/s connectors
    - 1 x IR header
    - 1 x CIR header
    - 1 x Print port header
    - 1 x COM port header
    - 1 x Chassis Intrusion header
    - 1 x CPU Fan connectors (4-pin)
    - 1 x Chassis Fan connector (4-pin)
    - 1 x Power Fan connector (3-pin)
    - 24 pin ATX power connector
    - 4 pin 12V power connector
    - Front panel audio connector
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
    - 1 x USB 3.0 header (supports 2 USB 3.0 ports)

    Rear Panel
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 4 x Ready-to-Use USB 2.0 Ports
    - 2 x Ready-to-Use USB 3.0 Ports
    - 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Line in / Front Speaker / Microphone

    Unique Feature
    - ASRock Extreme Tuning Utility (AXTU)
    - ASRock Instant Boot
    - ASRock Instant Flash
    - ASRock APP Charger
    - ASRock XFast USB
    - ASRock XFast LAN
    - ASRock XFast RAM
    - ASRock Crashless BIOS
    - ASRock OMG (Online Management Guard)
    - ASRock Internet Flash
    - ASRock UEFI System Browser
    - ASRock Dehumidifier Function
    - Hybrid Booster:
    - ASRock U-COP
    - Boot Failure Guard (B.F.G.)
    - Combo Cooler Option (C.C.O.)
    - Good Night LED

    Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM

    Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables

    Hardware Monitor
    - CPU Temperature Sensing
    - Chassis Temperature Sensing
    - CPU/Chassis/Power Fan Tachometer
    - CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
    - CPU/Chassis Fan Multi-Speed Control
    - CASE OPEN detection
    - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

    Form Factor
    - Micro ATX Form Factor: 9.6-in x 8.4-in, 24.4 cm x 21.3 cm
    - All Solid Capacitor design

    OS
    - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

    Certifications
    - FCC, CE, WHQL
    - ErP/EuP Ready (ErP/EuP ready power supply is required)
