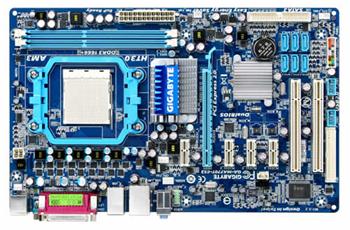

MB Gigabyte GA-MA770T-ES3 (AM3)

MB Gigabyte GA-MA770T-ES3 (AM3)

Popis produktu:
Revolution energy saving design with Easy Energy Saver technology
Supports AMD AM3 Phenom II/ Athlon II processors
Solid capacitors design for CPU VRM
Dual Channel DDR3 1666+ for remarkable system performance
Ultimate graphics performance with PCI-E 2.0 x16 interface
Integrated SATA 3Gb/s with RAID function
Features high speed Gigabit Ethernet connection
Home theater quality 6/8-channel High Definition Audio
Patented DualBIOS with dual hardware BIOS protection
Compatible with Window 7 to deliver the best operation experience
Meet European Union EuP(Energy-using Products) requirement

Specifications

CPU Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor

Hyper Transport Bus 5200 MT/s

Chipset North Bridge: AMD 770
South Bridge: AMD SB710

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note1)
Dual channel memory architecture
Support for DDR3 1666(OC)/1333/1066 MHz memory modules
Support ECC memory modules (Note 2)

Audio Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel (Note 3)
Support for S/PDIF In/Out
Support for CD In

LAN Realtek 8111D chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIE_16)
(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
4 x PCI Express x1 slots
2 x PCI slots

Storage Interface South Bridge:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1 and RAID 0+1
iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Integrated in the South Bridge:

Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x clearing CMOS jumper

Back Panel Connectors 1 x PS/2 keyboard port or PS/2 mouse port
1 x parallel port
1 x serial port
1 x coaxial S/PDIF Out connector
8 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE IT8720 chip

H/W Monitoring System voltage detection:

CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU fan speed control (Note 4)

BIOS 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 5)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Support for Easy Energy Saver

Bundle Software Norton Internet Security (OEM version)

Operating System Support for Microsoft® Windows Vista/XP

Form Factor ATX Form Factor; 30.5cm x 19.0cm

Note (Note 1) Due to Windows® XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Use of a CPU that supports ECC is required if you wish to install ECC memory.
(Note 3) To enable 7.1-channedl audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 4) Whether the CPU/ system fan speed control function is supported will depend on the CPU/ system cooler you installed.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Remark Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
