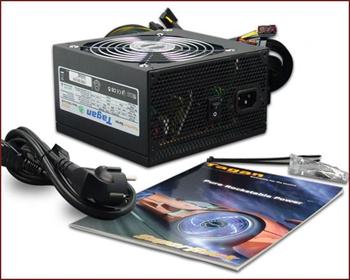

Tagan TG500-U33II 500W SuperRock

Tagan TG500-U33II 500W SuperRock

• Compliant with ATX12V Ver. 2.3 and downward versions
• Universal AC Input Voltage
• Active Power Factor Correction (PF) > 0.95 at full load
• >80% efficiency means power supply produces less heat and emits less noise; an economical and ecological solution
• Two independent +12V rails provide different devices individual power thus making the system stable
• Universal motherboard compatibility due to 20+4 pin main power as well as 4-pin & 8-pin +12V power connectors
• 6 Pin & 6+2 Pin PCI Express connectors support NVIDIA SLI and ATI Crossfire graphic cards
• Total 10 IDE and SATA hard disk connectors available for top usage
• Thermal fan control automatically adjusts fan speed thus controlling the temperature inside the power supply (Fan speeds up when temperature rises)
• Internal OVP (Over Voltage Protection) and OCP (Over Current Protection) functions help to eliminate sudden power surge which cause damages to peripherals
• The demonstrated MTBF shall be 100,000 hours of continuous operation at 25°C, full load and nominal line
• High durability due to Japanese brand capacitor allowing reliable high temperatures of up to 105°C

* rozměry: 150 x 86 x 140
* hmotnost: 1,9 kg
* vatáž: 500
* počet ventilátorů: 1
* počet 12v větví: 2

baleno v krabici s příslušenstvím.

CABLE TABLE
Model TG500-U33

Main board (20+4 P) 1 on board 12 V1 550 mm
ATX12 V / EPS12 V (4+4 P) 1 on board 12 V1 12V2 550 mm
Molex (4 P)*3 + FDD (4 P)*1 1 on board 12 V1 500+150+150+150
Molex (4P)*3 1 on board 12 V1 500+150+150 mm
SATA (5 P)*4 2 on board 12 V1 500+150+150+150
PCI-E (6+2 P) + PCI-E (6 P) 1 on board 12 V2 500+150 mm
