Thermaltake Expressar RCS100 VG40031N2Z

Thermaltake Expressar RCS100 VG40031N2Z

- Utilize micro compressor and refrigerant to cool PC, to maximize over-clocking limitation and performance.
- 20oC cooler than liquid cooling System

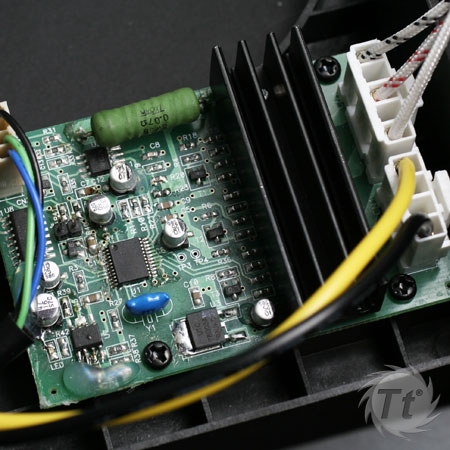

- Equipped with intelligent IC controller to prevent condensation
- Thermal resistance can be <0.02 oC/W under 100% loading.
- High performance micro compressor uses standard 12V power
- Small, low noise, high performance technology.

Compatible Motherboards List

MSI P45 Diamond / P45 Platinum / P45D3 Platinum / P7N Diamond (Only for one VGA card plug in 4th slot) / P7N2 Diamond (Only for one VGA card plug in 4th slot) / X48C Platinum (Only for one VGA card plug in 4th slot)
Gigabyte EP45-DQ6 / EP45T Extreme (DDR3) / EP45 Extreme (DDR2) / X48T-DQ6 (DDR3) / X48-DQ6 (DDR2)
Asus Blitz Formula / P5Q / P5QC / P5Q Pro / P5Q Deluxe / P5E Deluxe

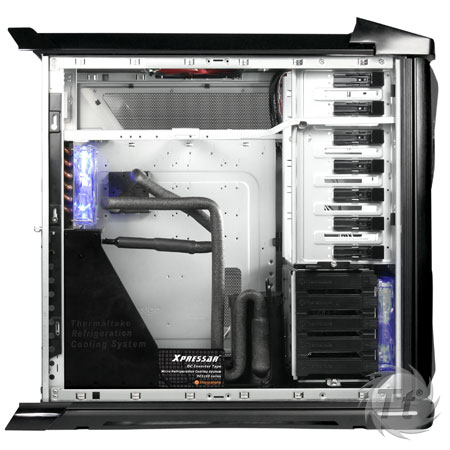

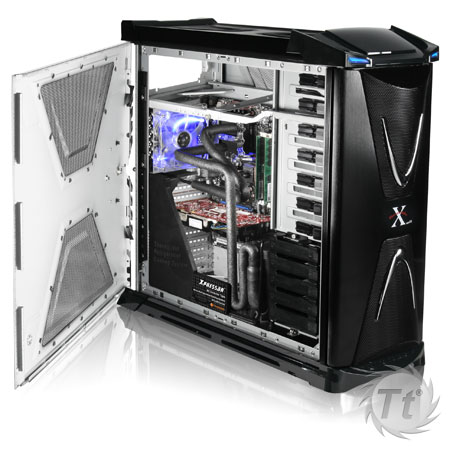

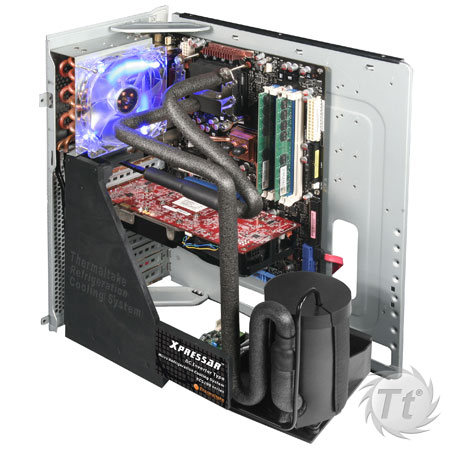

R.C.S(Refrigeration Cooling System) Structure
The Xpressar™ is a micro vapor-compression refrigeration system. The vapor-compression refrigeration system has been the most widely used method for air-conditioning of large public buildings, private residences, hotels, hospitals, theaters, restaurants and automobiles. It uses a circulating liquid refrigerant as the medium which absorbs and removes heat from the space to be cooled and subsequently rejects that heat elsewhere.


Model VG40031N2Z Compatibility Guideline

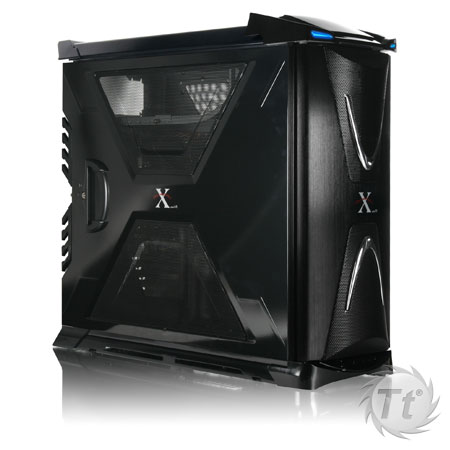

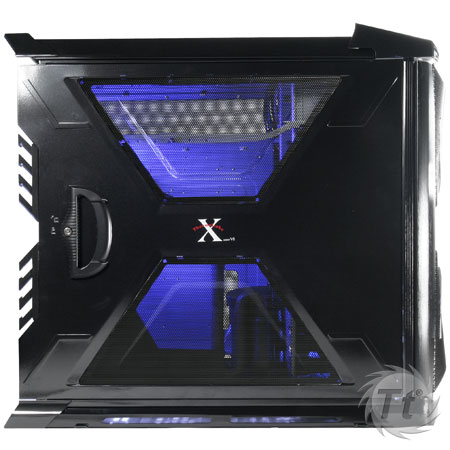

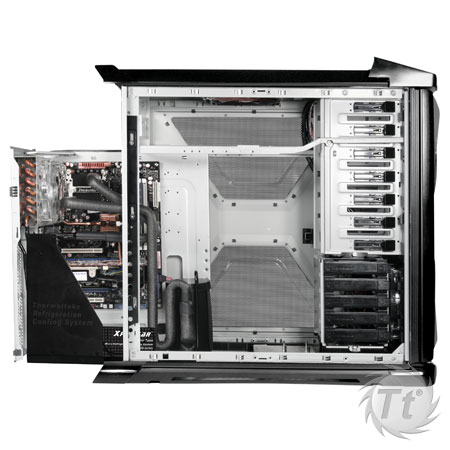

Case Type Super Tower (Xaser VI all black VG4000BNSA)
Dimension (W*D*H) 605 x 250 x 660 mm 23.8 x 9.8 x 26.0 inch
Net Weight / Gross Weight 22.2 kg ; 48.9 lb / 29.9 kg ; 65.9 lb
Window side panel No
Sliding motherboard tray Yes
Cable management Yes
Sliding hood Yes
Adjustable PSU bridge Yes
Material Front door: Aluminum / Chassis: 1.0mm SECC
Color Chassis color: Black / Metal mesh : Black

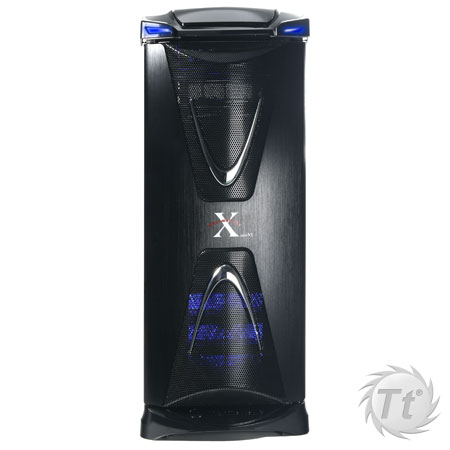

Cooling System Front (intake)
140 x 140 x 25mm blue LED fan, 1000rpm,   16dBA or 120 x 120 x25 mm fan (optional)

Top (exhaust)
140 x 140 x 25mm TurboFan, 1000rpm,   16dBA or 120 x 120 x25 mm fan (optional)

Bottom (intake)
Two 140 x 140 mm fans (optional)   or two 120 x 120 x25 mm fan (optional)

VGA (intake)
140 x 140 x 25mm TurboFan, 1000rpm,   16dBA or 120 x 120 x25 mm fan (optional)

Motherboards 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX)
Drive Bays
-5.25" Drive Bay
-3.5" Drive Bay
-3.5" Drive Bay (Hidden)
7
1 (Convertable from one 5.25" drive bay)
5

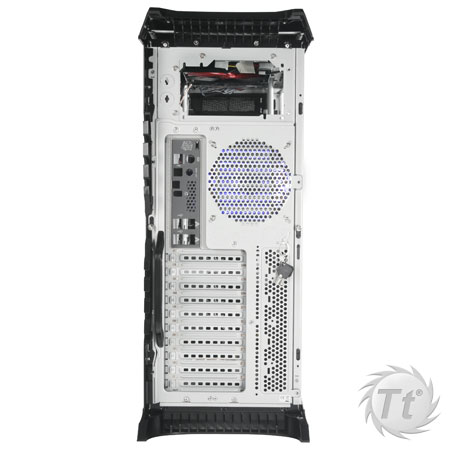

Front I/O e-SATA connector x 2, USB2.0 x 4, IEEE 1394 Firewire x 1, HD Audio
Expansion Slots 10
Refrigeration Cooling System Application  Refrigeration Cooling System

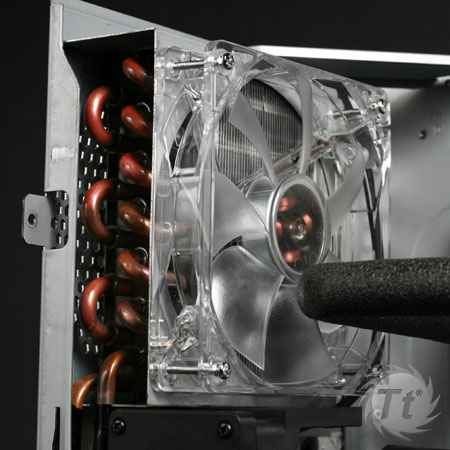

Performance condenser
(A) Dimension of condenser: (L) 134 x (W) 120 x (T) 47 mm
(B) 120mm blue LED silent fan (1600 RPM)

Micro compressor
(A) Type: DC Inverter Type Rotary Compressor
(B) Operating voltage: DC 12V
(C) Speed Controlled Type: PWM
(D) Connector: 4-pins
(E) Power Consumption: 50 Watts (Max.)

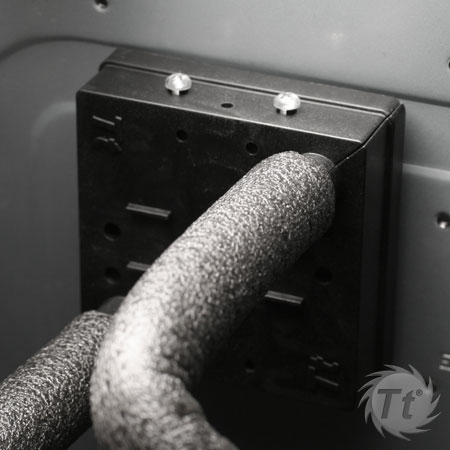

All copper cold plate: For Intel LGA775 and LGA1366

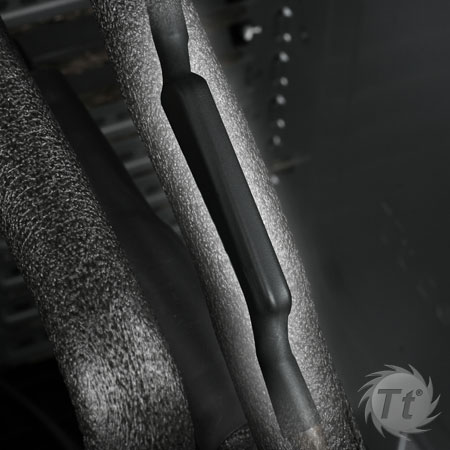

Tube: All copper tube
Refrigerant: R134a (Industry Standard)


Recommended PSU Based on system hardware configuration + additional 100W
Recommended Thermaltake PSU W0132 (1000W), W0131 (850W)
