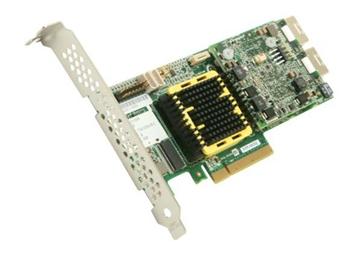

Adaptec RAID 5805Z

Adaptec RAID 5805Z

The Series 5Z family of high-performance Adaptec Unified Serial® (SATA/SAS) raid adapters offers both high I/O transaction and high bandwidth processing for use with cost-effective, high-capacity SATA drives or high-performance SAS drives.

The Adaptec RAID 5405Z utilizes industry-leading dual core RAID on Chip (ROC),  512MB DDR2 cache, and connectivity with the latest x8 PCI-Express to deliver over 250,000 I/Os 1.2GBs. Using SAS expanders, it can connect up to 256 SATA/SAS devices.

The Adaptec RAID 5405Z supports a broad range of operating systems, compatibility with more than 300 third-party devices, and full integration with Adaptec Storage Manager™ for centralized management of all Adaptec raid adapters on the network.

Zero-Maintenance Cache Protection – Save Thousands of Dollars in Data Center Costs
Adaptec Series 5Z adapters introduce Zero-Maintenance Cache Protection, a revolutionary advancement that maximizes performance and extends power savings by protecting adapter cache without battery backup units and without incurring monitoring, maintenance, replacement or disposal costs. During a system power loss, the flash memory-based cache protection can preserve data for up to 10 years.

Intelligent Power Management - Reduce Power by up to 70%
Adaptec Intelligent Power Management slashes storage power and cooling costs by spinning down idle disks and providing a lower power mode for active disks.


Highlights

Zero-Maintenance Cache Protection
Intelligent Power Management
4 internal ports
MD2 – Low profile form factor
1.2GHz Dual Core RAID on Chip (ROC)
8-Lane PCI-Express bus interface
0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD
Support for Hybrid SSD/HDD RAID 1, 10
512MB DDR2 cache
4GB NAND flash for cache protection
1 SFF-8087 (int.) connectors
Up to 256 SATA or SAS drives using SAS expanders
Adaptec Storage Manager, Copyback Hot Spare management features
RoHS compliant
3 year warranty
