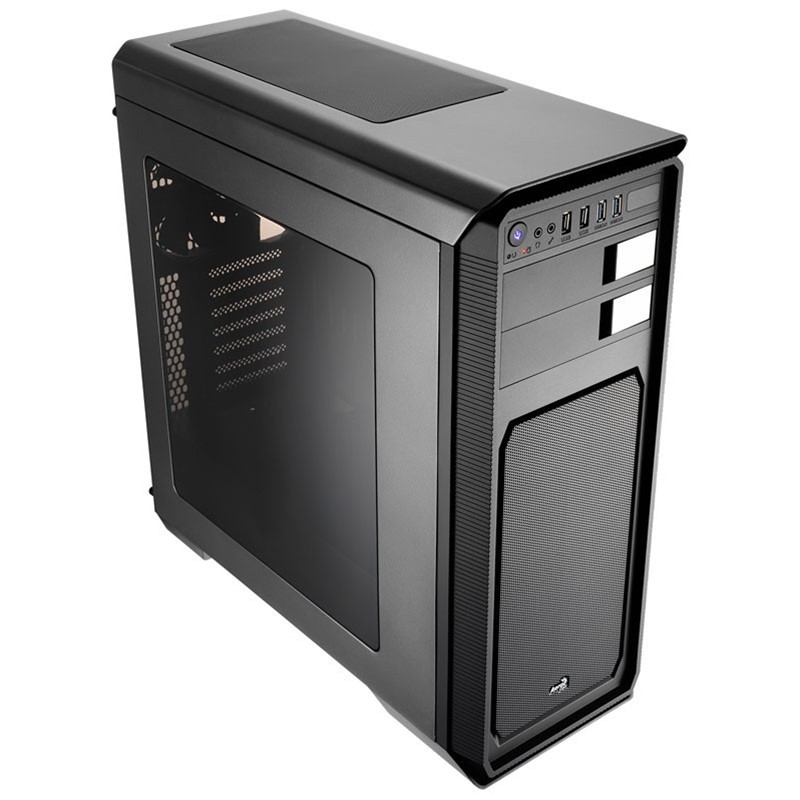

AEROCOOL Aero-800 Gray

AEROCOOL Aero-800 Gray

SPECIFICATION

Model Name Aero-800
Case Type Mid Tower
Steel Thickness 0.55mm
Motherboards ATX / micro ATX / mini-ITX
Case Dimensions 200 x 501 x 475.8mm (W x H x D, overall)
5.25” Drive Bays 2 (Exposed)
3.5” Drive Bays 2 (Internal , Compatible With 2.5"HDD/SSD)
2.5” Drive Bays 3 (Internal)
Expansion Slots 7 Slots
GPU Clearance 390mm
I/O Ports USB3.0 x 2 / USB2.0 x 2 / Audio(HD)+Mic
Height limit for CPU coolers 155mm

Air Cooling System
Front : 2 x 120mm Fans or 2 x 140 mm Fans (Included 1 x 120mm LED Fan)
Top : 2 x 120mm Fans (Optional)
Rear : 1 x 120mm fan ( Included 1 x 120mm Black Fan)

Water Cooling System
Front : 120 / 140 / 240 / 280mm Radiator Installation.(MAX. 40mm thickness)
Top : 120 / 240 mm Radiator Installation.(MAX. 32mm thickness)
Rear : 120mm Radiator Installation.

Net Weight 6.15Kg (G.W 7.45 Kg)
Power Supply ATX PSU (Optional)

COOLING SYSTEM

Aero-800 [ Rear ] [ Front ]
Black Edition LED Fan
Grey Edition LED Fan
White Edition LED Fan
Blue Edition  LED Fan


Fan 120 x 120 x 25mm 120 x 120 x 25mm
Rated voltage 12V 12V
Starting voltage 6v 6v
Power consumption 1.92W+-10%Max 3.0W+-10%Max
Rated current 0.12A+-10%Max 0.25A+-10%Max
Speed 1200+-10% R.P.M 1100+-10%R.P.M
Air Flow (CFM) 32.1CFM 36.4CFM
Air Pressure 0.64MM-H2O 1.32 MM-H2O
Noise (dBA) 23.5dBA 26.5dBA
MTBF 300000 hours 200000 hours
