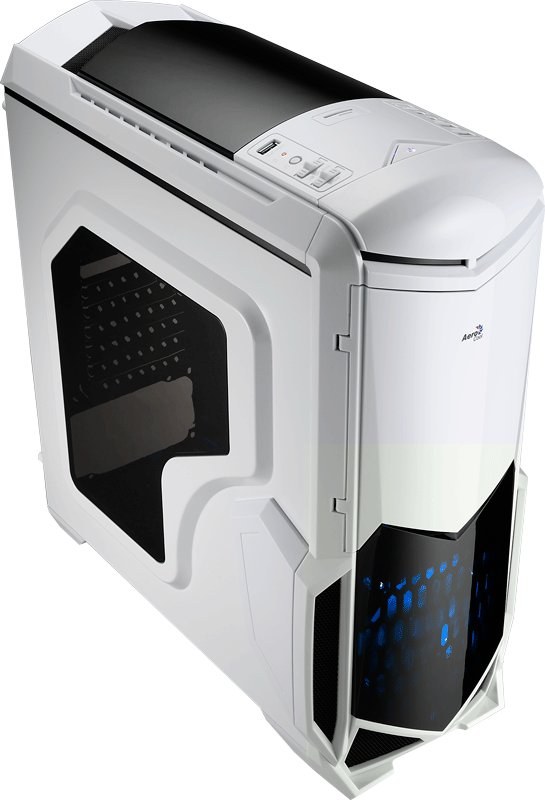

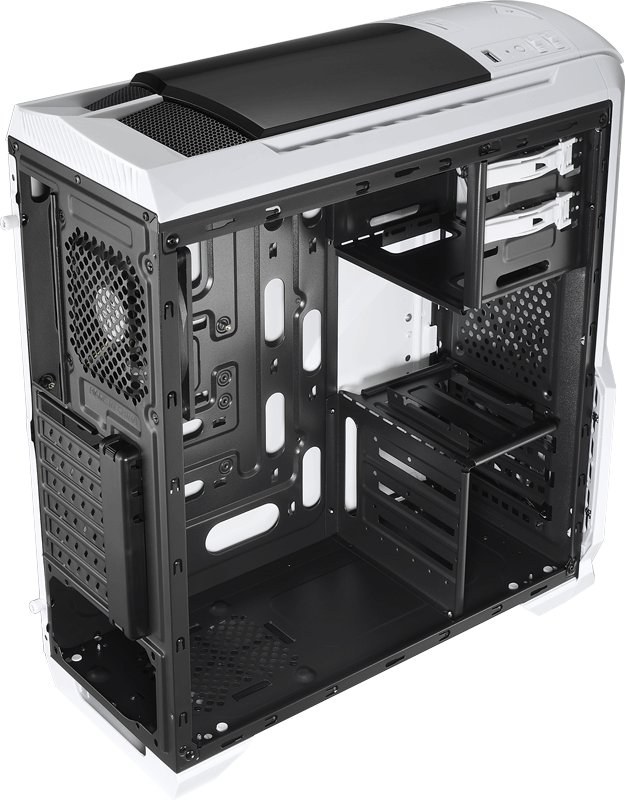

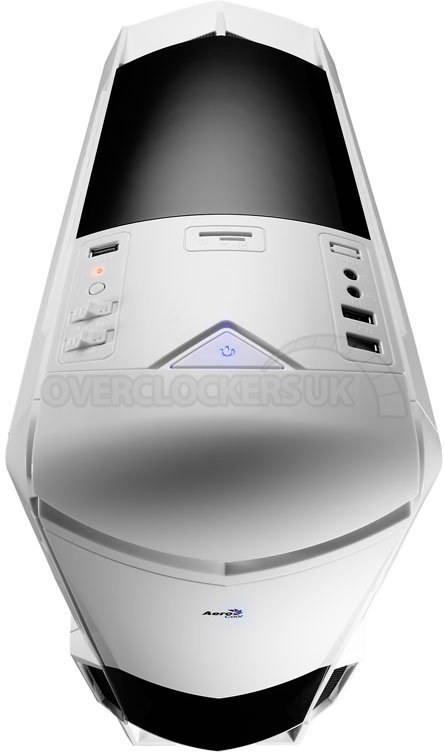

AEROCOOL BattleHawk White

AEROCOOL BattleHawk White

SPECIFICATION

Model Name Battlehawk
Case Type Mid Tower
Steel Thickness 0.5mm
Motherboards ATX / Micro ATX / Mini ITX
Case Dimension 218 x 491 x 455mm (W x H x D, overall)
5.25"Drive Bays 1 (Exposed)
3.5"FDD Drive Bays 1
3.5"Drive Bays 3
2.5"Drive Bays 2
Expansion Slots 7 Slots
GPU Clearance 390mm
I/O Ports 1 x USB3.0 , 2 x USB2.0 , HD Audio + Mic., 2 x Fan Controller, SD Card Reader
Height limit for CPU coolers 155mm
Air Cooling System
Rear : 1 x 120mm Black Fan Included
Front : 2 x 120mm (1 x 120mm LED Fan Included)
Top : 2 x 120mm (Optional)

Net Weight 4.5Kg (GW : 5.64Kg)
Power Supply Standard ATX PS2 (Optional)

COOLING SYSTEM

Battlehawk [ Rear ] [ Front ]
Black Edition  LED Fan
White Edition  LED Fan
Fan 120 x 120 x 25 mm 120 x 120 x 25mm
Rated voltage 12V 12V
Operating Voltage Range 10.8~13.2V 6.0~13.2V
Starting voltage 6V 6V
Rated current 0.12A+-10%Max 0.25A+-10%Max
Power consumption 1.92W+-10%Max 3.0W+-10%Max
Speed 1200+-10%RPM 1100+-10%RPM
Max AirFlow 32.1CFM 36.4CFM
Max Static Pressure 0.64 mm-H2O 1.32mm-H2O
Noise (dBA) 23.5dBA 26.5dBA
MTBF 30,000 hours 20,000 hours
