AirLive Air4G 11N Broadband router

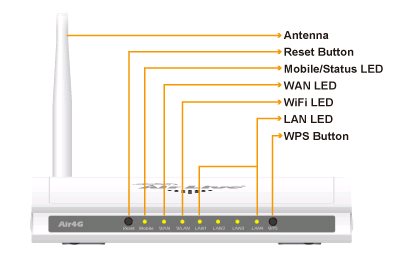

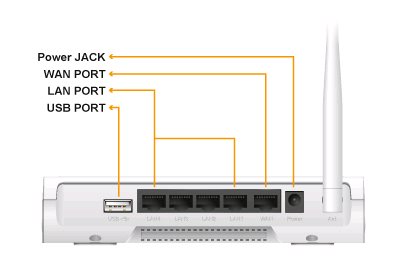

AirLive Air4G Wireless 11n 150Mbps Broadband Router OVERVIEW The Air4G is a wireless router with USB 3G/4G modem port. It supports NAT, routing, firewall, DHCP server and so on. It is managed easily by web UI, UPnP and setup wizard. SPI firewall is embedded in the product, and packet filtering and access control were also implemented inside. It supports various WAN connection approaches to ISP such as static IP, dynamic IP (DHCP client), PPTP, L2TP, PPPoE and 3/4G. It is also compliant to IEEE 802.11b/g/n standard for WLAN. FEATURES • Sharing 4G or 3G Internet Connection Wirelessly • WAN Failover to Guarantee Internet always On-Line • Support more than 500 types of 3G, 3.5G and 4G USB Dongles • High Performance 1T1R 802.11 Wireless N • Support Various WAN Types, NAT, Firewall and QoS • Support Smart Phone Tethering SPECIFICATIONS Model • Air4G 3G/4G WAN • 1 x USB port for 3G/3.5G/4G Dongle Ethernet WAN • 1 x RJ-45 port, 10/100Mbps, auto-MDI/MDIX Ethernet LAN • 4 x RJ-45 port, 10/100Mbps, auto-MDI/MDIX WPS • 1 x WPS button for WPS connection Reset • 1 x Reset Button WLAN Antenna • R-SMA connector with detachable antenna LED Indication • Mobile/WAN/WLAN/ LAN1~LAN4 Wireless LAN (WiFi) • IEEE 802.11n compliance SSID • Broadcast or Hide SSID Channel • Auto-selection, manually Output Power • 11n: 11±1.5dBm • 11g: 14±1.5dBm • 11b:13±1.5dBm Security • WEP, WPA, WPA-PSK, WPA2, WPA2-PSK 3G/4G WAN • PPP (for WCDMA/HSPA) Ethernet WAN • PPPoE, DHCP client, Static IP, PPTP, L2TP WAN Connection • Auto-reconnect, dial-on-demand, manually NAT • Virtual server, special application, DMZ SPI Firewall • IP/Service filter, URL blocking, MAC control DoS Protection • DoS (Deny of Service) detection and protection Routing Protocol • Static route, dynamic route (RIP v1/v2) Management • SNMP, UPnP IGD, Syslog Administration • Web-based UI, remote login, backup/restore setting Operation Temp. • Temp.: 0~40°C (Lab Testing: -5 ~ 45°C) Storage Temp. • Humidity 10%~90% non-condensing • Temp.: -10~70°C • Humidity: 0~95% non-condensing Certification • CE, FCC
