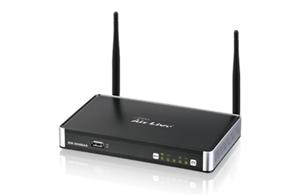

AirLive GW-300NAS b/g/n 300Mbps GigaLAN Router,USB, IPTV Pass through

AirLive GW-300NAS b/g/n 300Mbps GigaLAN Router,USB

   * Support BT HTTP FTP Emule Downloader
   * Support 20K session Fast P2P Connection
   * Support IPTV Pass through
   * Green Router Auto Adjust Power
   * Support 2T2R 300Mbps Wireless Connection
   * Supports QOS and Web Site Blocking

The GW-300NAS is the Wireless 2T2R 300Mbps Giga NAS Router. This product is specifically designed for those who need to have
the file sharing and P2P download services beyond his home and office. It provides a complete solution for internet surfing and broadband sharing. The package content easy installation software that make you easy to setup all of internet and wireless functions in 3 steps.

Support All in one downloader
( BT, Http, FTP, Emule)
The GW300NAS is the all-in-one home network router that combines powerful 802.11n Wi-Fi connectivity with network attached storage (NAS), USB device-sharing, network downloader, Samba Server, FTP server and Green technology in a sleek, compact desktop design.

Support Fast Data Transfer And Fast P2P download Speed
First, there’s the Wireless Access Point, which lets you connect to the network without wires. There's also a built-in 4-port full-duplex 10/100/1000 Switch to connect your wired-Ethernet devices together at up to gigabit speeds. The Router function ties it all together and lets your whole network share a high- speed cable or DSL Internet connection. It also support upto 20K session that allow you to download your p2p file much faster compare to any other router in the market.

Enjoy your AirLive Wireless
Wireless High-Speed 300Mbps lead you to enjoy various applications. Seamlessly work with X-Box360, online game and download application or IPTV streaming.

Install Your Wireless Camera With GW-300NAS
Airlive GW-300NAS meets the demand of bandwidth intensive applications such as HD camera video streaming

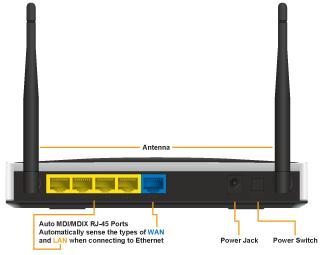

Device Interface
Ethernet WAN
- RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX
Ethernet LAN
- RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX
USB Sharing
- USB 2.0 for file sharing
- USB 2.0 for Printer Sharing
Antenna
- 3 dBi detachable antenna
WPS / USB OFF Button
- For WPS connection and USB storage remove button
Reset Button
- Reset router setting to factory default
LED Indication
- Power/Status / USB/ WAN / LAN1 ~ LAN4/ WiFi
Power Jack
- DC 12V/1.5A switching power adapter

WIFI
Standard
- IEEE 802.11b/g/n compliance
SSID
- SSID broadcast or in stealth mode
Channel
- Auto-selection, manually
Security
- WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
WPS
- WPS (Wi-Fi Protected Setup)
WMM
- WMM (Wi-Fi Multimedia)

Functionality
Ethernet WAN
- PPPoE, DHCP client, Static IP, PPTP, L2TP
WAN Connection
- Auto-reconnect, dial-on-demand, manually
One-to-Many NAT
- Virtual server, special application, DMZ
NAT Session
- Support NAT session
SPI Firewall
- IP/Service filter, URL blocking, MAC control
DoS Protection
- DoS (Deny of Service) detection and protection
Routing Protocol
- Static route, dynamic route (RIP v1/v2)
Storage/File Sharing
- FAT16/FAT32, EXT2, NTFS ( Read only)Samba server, FTP server
Media server
- UPnP AV media server, iTunes server
Scheduling Download management
- FTP
- HTTP
- BitTorrent / emule
Management
- SNMP, UPnP IGD, syslog, DDNS
Administration

Environment & Certification
Package Content
- GW-300NAS, Power adapter, Quick Installation Guide, CD
Package Information
- Device dimension (mm) 185x112x25
- Package dimension (246x210x62mm) SP/MP/ZP
- Package dimension (214x146x69mm) PP
- Package dimension (290x234x100mm) AP
Operation Temp.
- Temp.: 0~40oC, Humidity 10%~90% non- condensing
Storage Temp.
- Temp.: -10~70oC, Humidity: 0~95% non- condensing
Home Networking
- DLNA compliance
EMI Certification
- CE/FCC compliance
RoHS
- RoHS compliance
- Web-based UI, remote login, backup/restore setting
