ARCTIC Freezer i13 X CO

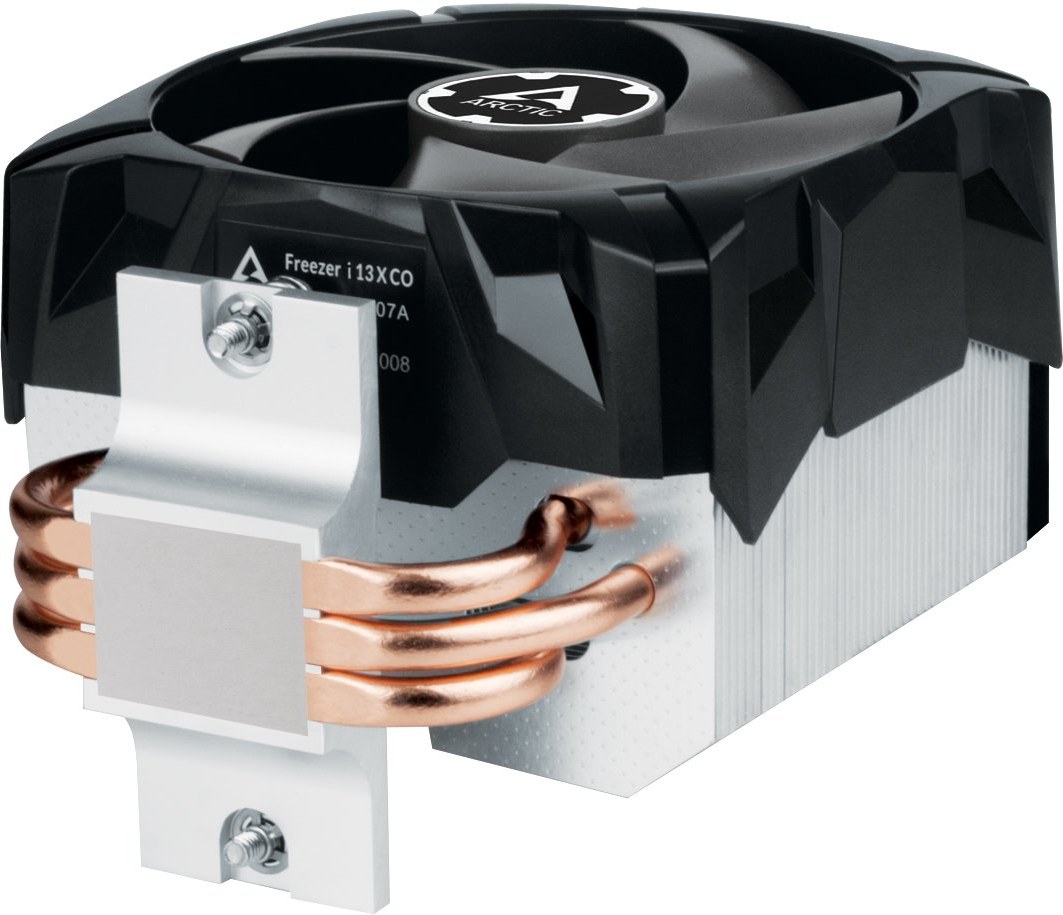

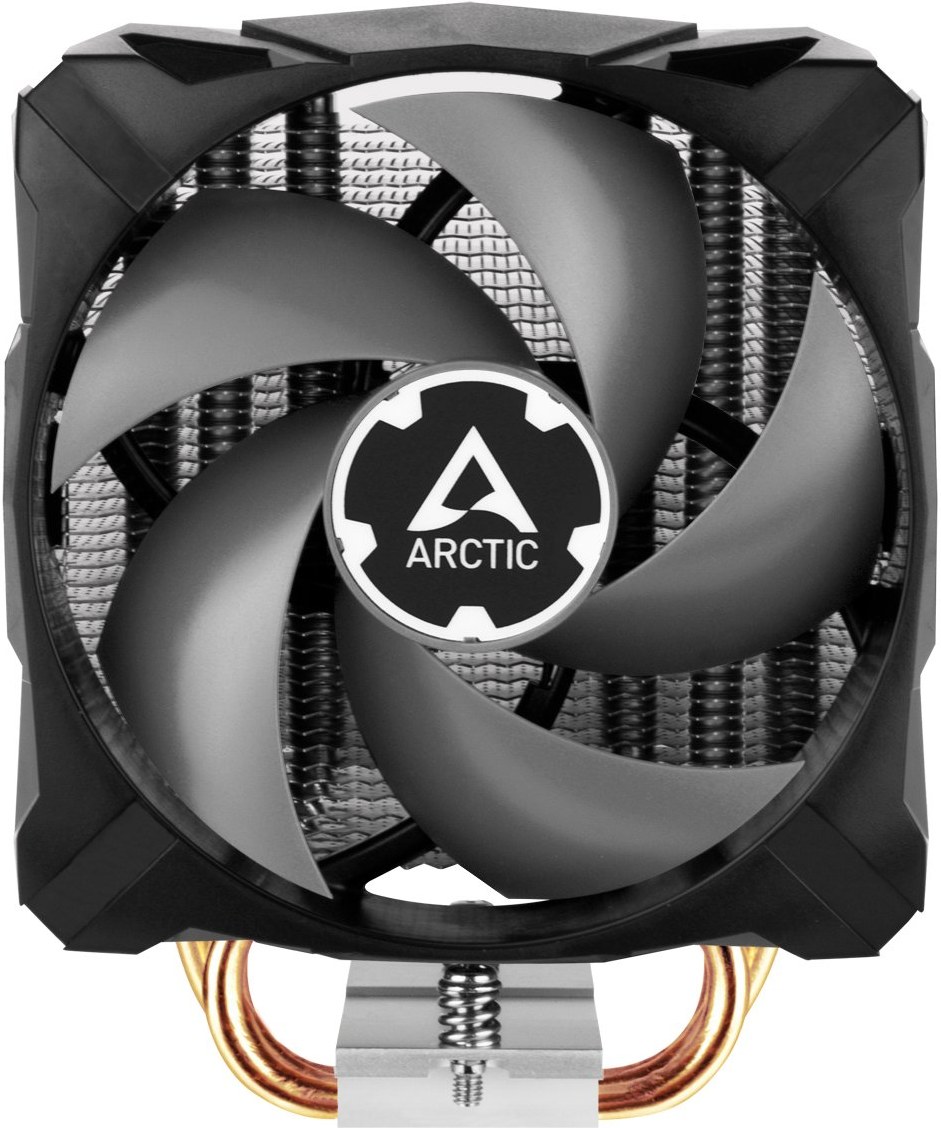

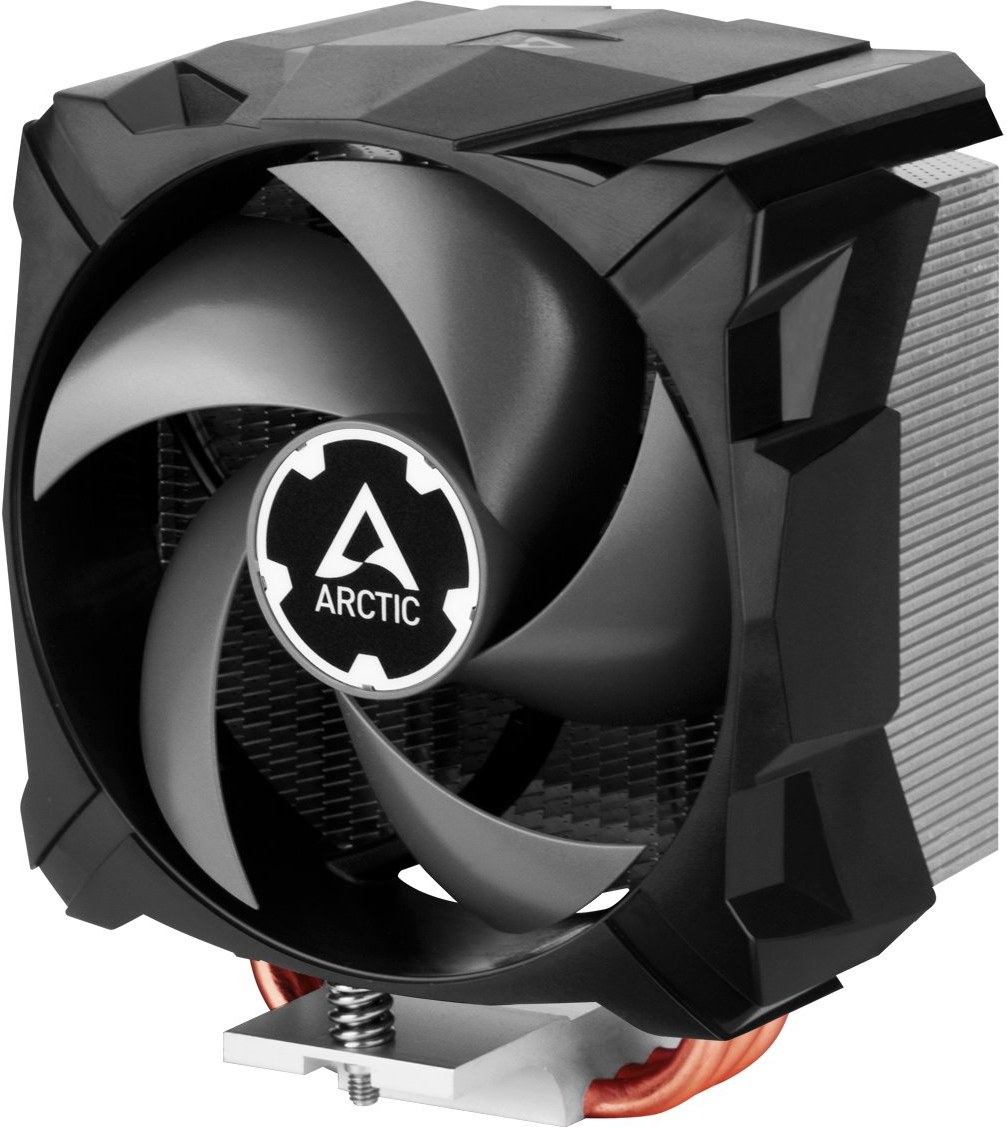

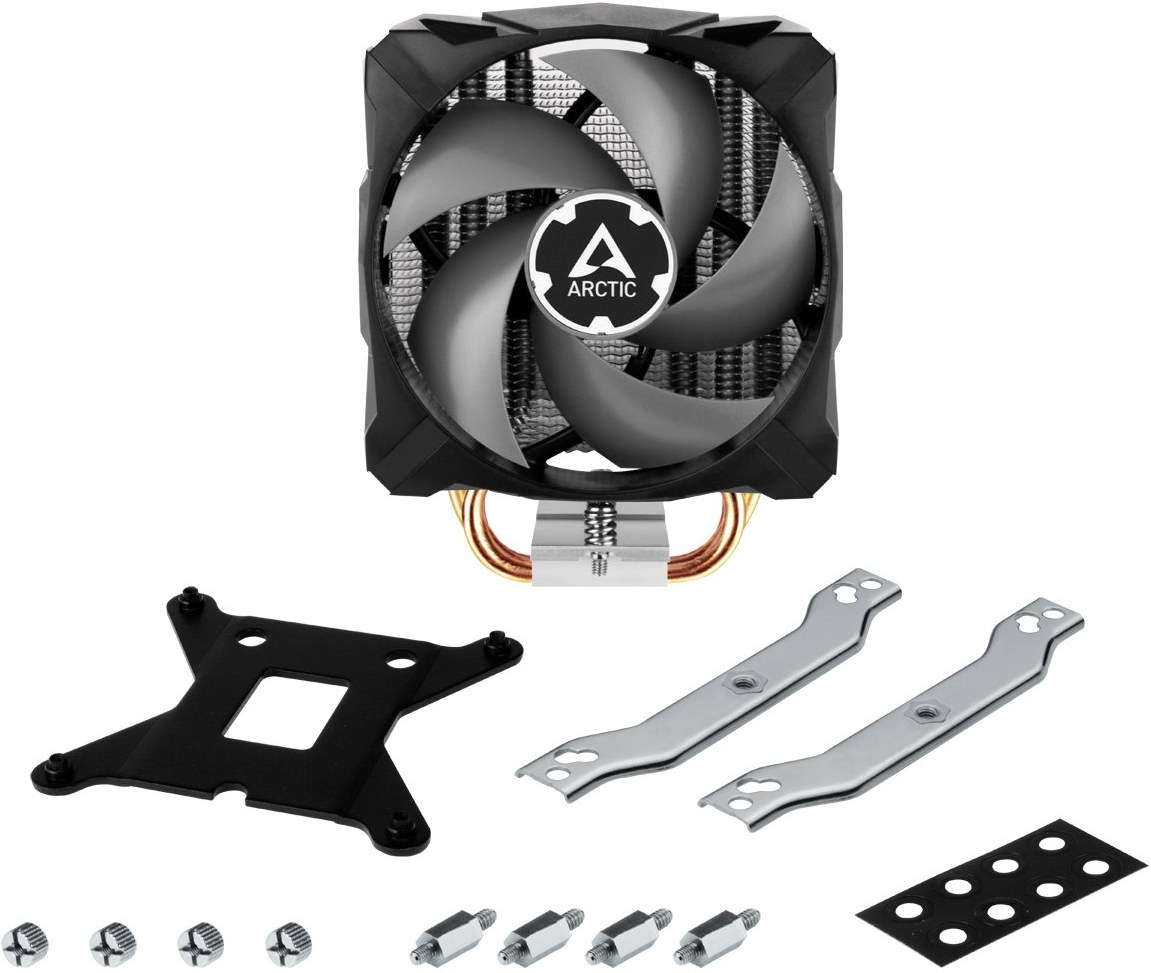

ARCTIC chladič i13 X CO - Kompaktní Intel CPU chladič pro nepřetržitý provoz • bezpečné uchycení • předem nanesená tepelná pasta MX-2 • prodloužená životnost díky nízké teplotě motoru • nižší spotřeba energie a menší vibrace s novými technologie motoru • Ofsetové tepelné potrubí zajišťuje optimální odvod tepla • Směrovaný proud vzduchu pro lepší chlazení Freezer i13 X CO - připraven chladit váš procesor Intel ARCTIC Freezer i13 X CO je kompaktní chladič CPU s jedním ventilátorem 92 mm. Využívá vylepšeného designu chladiče a přepracování rozvodu tepelného potrubí. Ve spojení s ventilátorem, který je optimalizován pro vysoký statický tlak, se ARCTIC podařilo výrazně zlepšit chladicí výkon zařízení Freezer i13 X CO. S použitím dvojitého kuličkového ložiska je navržen pro nepřetržité je proto vhodný i pro nepřetržitý provoz. Je dodáván s předem nanesenou tepelnou směsí ARCTIC MX-2 a má jednoduchý montážní systém. Specifikace Heat Pipe Direct Touch průměr 6 mm x 3 Hliníkové žebrování chladiče x 44 Tloušťka: 0,4 mm Předběžně nanesena tepelná směs MX-2 Rozměry 85,5 (L) x 108,5 (W) x 137 (H) mm Hmotnost 425 g Kompatibilita Intel® 1200, 115x Ventilátor 1 x 92 mm, 300–2000 ot / min (řízeno PWM) Proud / Napětí 0,07 A / 12 V Ložiska Dvojitá kuličková ložiska Hluk na úrovni 0,3 Konektor 4kolíkový konektor ARCTIC Freezer i13 X CO Compact Intel CPU Cooler for Continuous Operation • Secure hold with backplate • Pre-applied MX-2 thermal paste • Extended lifespan thanks to low motor temperature • Lower power consumption and less vibration with new motor technology • Offset heat pipes ensure optimal heat dissipation • Focused airstream for improved cooling performance Here is the Freezer i13 X CO – Ready to cool your Intel CPU The ARCTIC Freezer i13 X CO is a compact CPU cooler with one 92mm fan. It benefits from an improved heatsink design and a reworked heat pipe layout. In conjunction with the fan, which is optimised for high static pressure, ARCTIC was been able to significantly improve the Freezer i13 X CO's cooling performance. With the use of a double ball bearing it is designed for continuous operation and is therefore also suitable for 24/7 operations. It is supplied with pre-applied ARCTIC MX-2 thermal compound and has a simple assembly system. Specifications Heat Pipe Direct Touch Ř 6 mm x 3 Heatsink Aluminium Fins x 44 Thickness: 0.4 mm Thermal Compound MX-2 pre-applied Dimensions 85.5 (L) x 108.5 (W) x 137 (H) mm Weight 425 g Compatibility Intel® 1200, 115x RAM Clearance no limit Fan 1 x 92 mm, 300–2000 RPM (Controlled by PWM) Current/Voltage 0.07 A/12 V Bearings Double Ball Bearing Noise Level 0.3 Sone Connector 4-pin connector Small Footprint for optimal Compatibillity The Freezer i13 X CO combines a compact advanced heat sink design with 3 direct touch heat pipes. In combination with the fan designed for static pressure, an optimal cooling performance is achieved despite the comparatively small dimensions. The Freezer i13 X CO has an installation height of only 137 mm and there are no limitations in RAM compatibility. Pre-applied MX-2 Thermal Paste Pre-applied, high-performing MX-2 thermal paste ensures quick and clean assembly. Longer Lifespan thanks to its Low Motor Temperature The Freezer i13 X CO uses a fan motor newly developed by ARCTIC. This runs less audibly and more efficiently, so that the temperature of the coils is 20 °C lower than with conventional motors. This increases the lifespan of the fans considerably, allowing ARCTIC to grant a 6-year warranty period for the Freezer i13 X CO. Offset Heat Pipes enable Optimal Heat Dissipation The direct touch heat pipes attached to the Freezer i13 X CO and an optimised design of the 44 cooling fins together ensure that the heat from the CPU can be ideally removed and released into the air. P-fan for Increased Performance Inspired by the P-series, the Freezer i13 X CO’s fan benefits from all of the advantages of P-fans: • High static pressure for increased cooling performance • Broad RPM range • Lower power consumption • Less vibration • PWM for synchronous fan control For additional information about the P-fans, we recommend our FAQ. Double Ball Bearing for Continous Operation The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential. Direct Touch Heat Pipes The Freezer i13 X CO uses direct touch heat pipes. This ensures that the heat to be dissipated is transferred directly to the heat pipes without an additional material layer, and transported into the heatsink via the pipes. More Cooling Capacity with Freezer i13 X CO The ARCTIC Freezer i13 X CO sets new standards in cooling. Proven to outperform its predecessor in cooling capacity. More Efficient and Whisper Quiet In addition to operating more quietly, even at maximum speed, the Freezer i13 X CO’s built-in fan motor is also much more efficient. The power consumption was reduced from 0.18 A to 0.07 A, which corresponds to an effective savings of 60 % in power consumption. ARCTIC engineers were also able to reduce the volume by 40 %, allowing the Freezer i13 X CO to run at a whisper-quiet 0.3 sone when at maximum speed. Multilingual Manuals ARCTIC offers a regularly updated user manual in many languages conveniently at your fingertips anywhere and anytime. Put the QR code sticker in an easy-to-reach place and never again waste time searching for product instructions.
