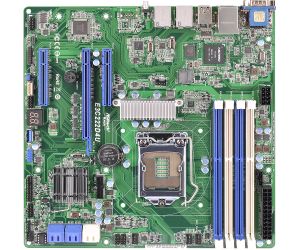

ASRock E3C222D4U, C222, 4xDDR3, 2xSATA3 RAID, 2+1 GLAN, uATX

ASRock E3C222D4U

Specifications

MB Physical Status
Form Factor - uATX
Dimensions - 9.6" x 9.6'' (24.4 cm x 24.4 cm)
Processor System
CPU - Supports Intel® Xeon® E3-1200 v3/v4 and 5th/4th Generation Core™ i3/Pentium®/Celeron® Processors (Socket 1150)
Socket - Single Socket LGA 1150
Chipset - Intel® C222
System Memory
Capacity - 4 DIMM slots
Type - Dual Channel memory technology
- Supports DDR3 1600/1333 ECC DIMM
Voltage - 1.5V, 1.35V
Expansion Slot
PCIe 3.0 x 16 - 1 slots (PCIE6: x16/x8 switch with PCIE4)
PCIe 3.0 x 8 - 1 slot (PCIE4: x0/x8 switch with PCIE6)

PCIe 2.0 x 8 - 1 slot (PCIE7: x4)
Storage
SATA Controller - C222: 2 x SATA3 6Gb/s, 4 x SATA2 3Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage
Ethernet
Interface - 1000 /100 /10 Mbps
LAN Controller - 2 x RJ45 by Intel® i210 + Intel® i217
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller - ASPEED AST2300
IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI
Graphics
Controller - ASPEED AST2300
VRAM - DDR3 16MB
Output - Supports D-Sub with max. resolution up to 1920x1200 @60Hz
Rear Panel I/O
VGA Port - 1 x D-Sub
USB 2.0 Port - 4
Lan Port - 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port - 1 (COM1)
UID Button/UID LED - 1
Internal Connector
COM Port Header - 1
Auxiliary Panel Header - 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED)
TPM Header - 1
IPMB Header - 1
Buzzer - 1
Fan Header - 1x CPU Fan, 4x system Fan (4-pin)
ATX Power - 1 (24-pin) + 1 (8-pin)
USB 3.0 Header - 1 (support 1 USB 3.0)
USB 2.0 Header - 1 (support 2 USB 2.0)
Type A USB 3.0 Port - 1
Front Panel - 1
BMC_SMBUS - 1
System BIOS
BIOS Type - 64Mb AMI UEFI Legal BIOS
BIOS Features - Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing
- Card Side Temperature Sensing
Fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS Microsoft® Windows®
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5(32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare® ESXi 5.5
Environment
Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
