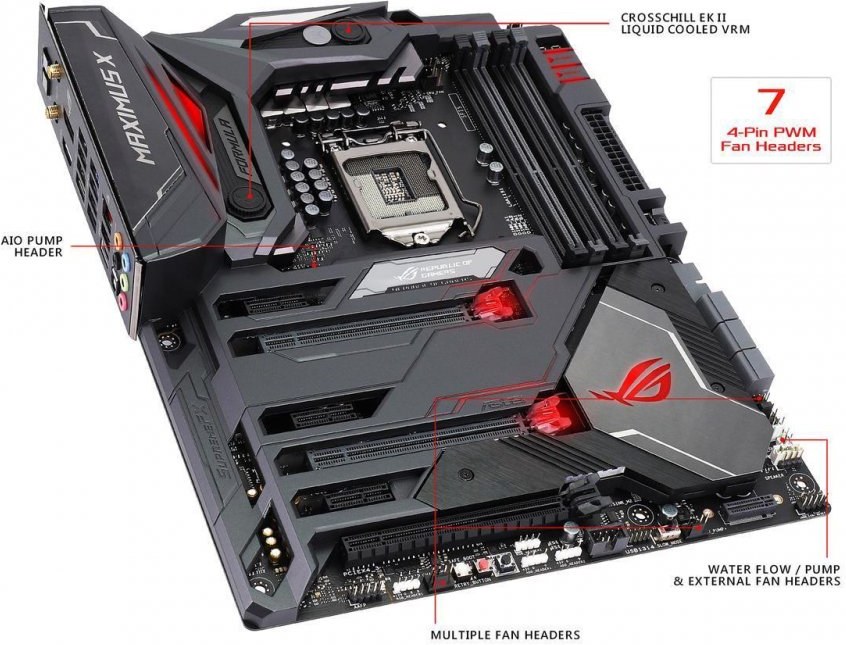

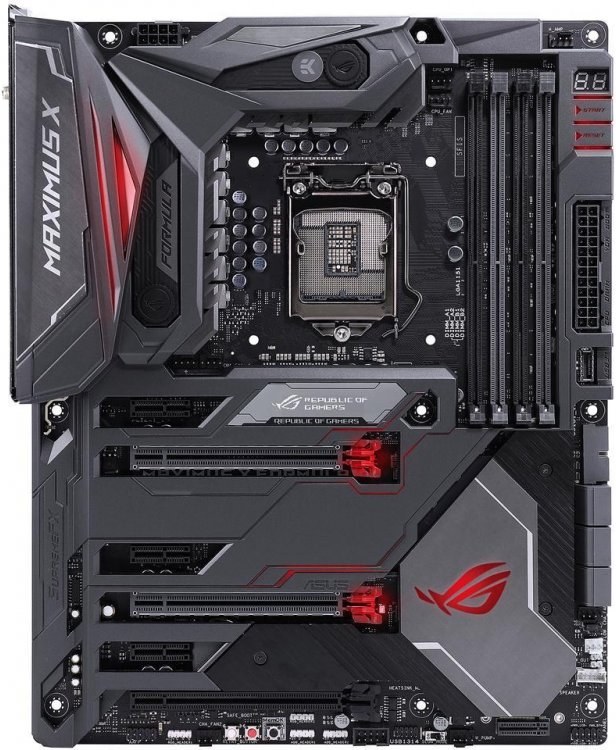

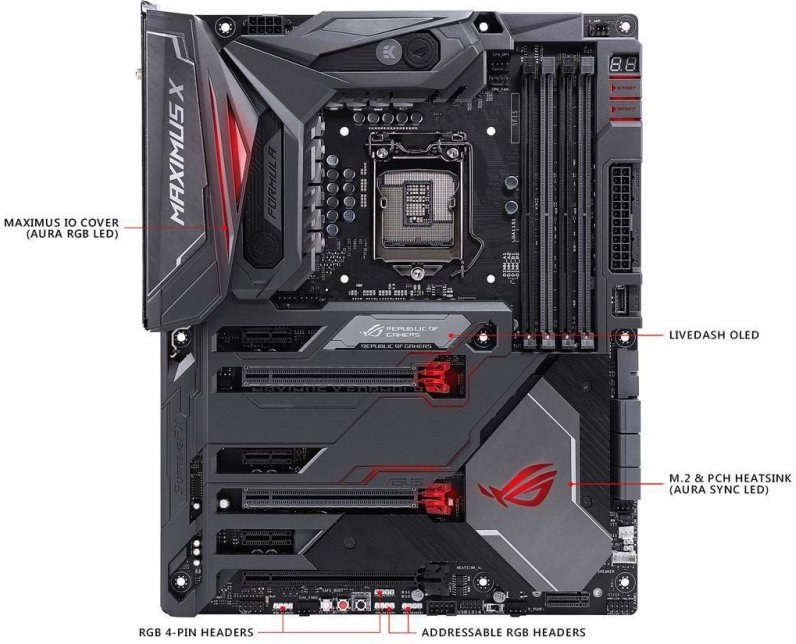

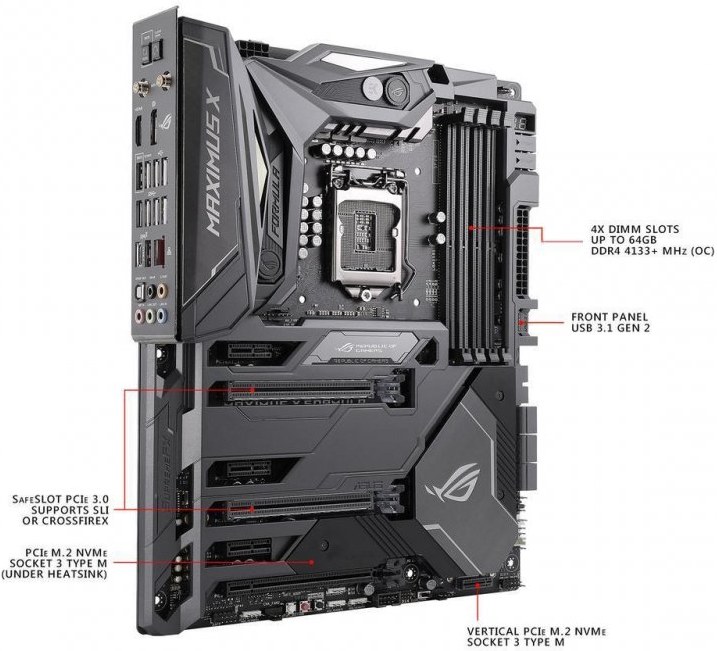

ASUS MAXIMUS X FORMULA

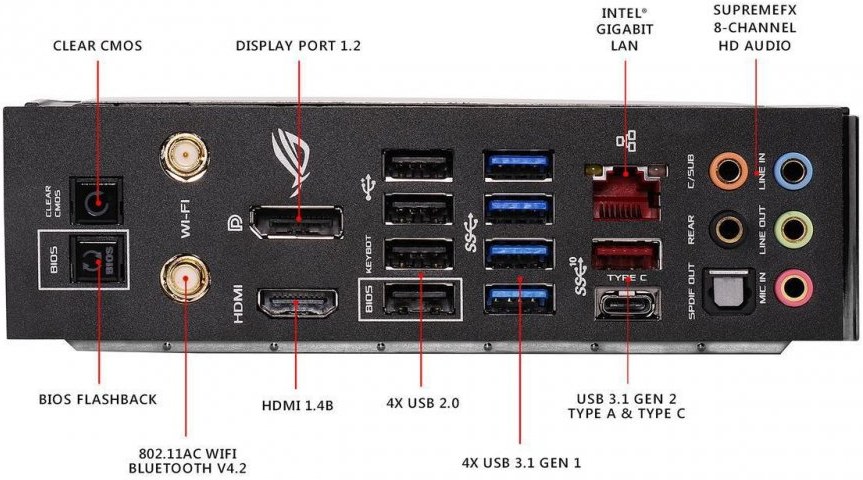

Technické specifikace: Formát: ATX (30,5 x 24,4 cm ) CPU: Intel® Socket 1151 for 8th Generation Core™ Processors (turbo boost 2.0) Čipová sada: Intel® Z370 Operační paměť: 4 x DIMM, max. 64GB DDR4 až 4000 MHz (přetakt.),NON-ECC, XMP Lan: Intel® I219V/ Anti-surge LANGuard/ ROG GameFirst IV Bezdrátová síť:Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.2 Zvuk: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 Grafická karta: V závislosti na CPU Úložný prostor: -1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode) -1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) -6 x SATA 6Gb/s port(s) -Support Raid 0, 1, 5, 10 -Supports Intel® Smart Response Technology -Intel® Rapid Storage Technology supports -Intel® Optane™ Memory Readyd Rozšiřující sloty: -2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4) -1 x PCIe 3.0/2.0 x16 (x4 mode, black) -3 x PCIe 3.0/2.0 x1 Externí porty: -1 x DisplayPort -1 x HDMI -1 x LAN (RJ45) port(s) -1 x USB 3.1 Gen 2 (red)Type-A -1 x USB 3.1 Gen 2 (black)USB Type-CTM -4 x USB 3.1 Gen 1 (blue) -4 x USB 2.0 -1 x Optical S/PDIF out -5 x Audio jack(s) -1 x Clear CMOS button(s) -1 x USB BIOS Flashback Button(s) -1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module Interní porty: -2 x Aura Addressable Strip Header(s) -2 x Aura RGB Strip Headers -1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) -1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) -1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) -1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) -6 x SATA 6Gb/s connector(s) -1 x CPU Fan connector(s) (1 x 4 -pin) -1 x CPU OPT Fan connector(s) (1 x 4 -pin) -3 x Chassis Fan connector(s) (3 x 4 -pin) -1 x H_AMP fan connector -1 x W_PUMP+ connector (1 x 4 -pin) -1 x AIO_PUMP connector (1 x 4 -pin) -1 x 24-pin EATX Power connector(s) -1 x 8-pin ATX 12V Power connector(s) -1 x Front panel audio connector(s) (AAFP) -1 x System panel(s) (Q-Connector) -1 x MemOK! button(s) -1 x Slow Mode switch(es) -1 x Reset button(s) -1 x LN2 Mode jumper(s) -1 x Safe Boot button -1 x ReTry button -1 x EXT_Fan header -1 x W_IN header -1 x W_OUT header -1 x W_FLOW header -1 x Thermal sensor connector -1 x Start button -1 x USB 3.1 Gen 2 front panel connector Příslušenství: -User's manual -1 x ROG logo plate sticker -6 x SATA 6Gb/s cable(s) -1 x M.2 Screw Package -1 x CPU installation tool -1 x Supporting DVD -1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) -1 x SLI HB BRIDGE(2-WAY-M) -1 x ROG big sticker -1 x Q-Connector -1 x M.2 bracket -1 x Extension Cable for RGB strips (80 cm) -1 x Extension cable for Addressable LED -1 x ROG coaster(s) -1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable Bios: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 6.0... Více na stránkách https://www.asus.com/Motherboards/ROG-MAXIMUS-X-FORMULA/specifications/
