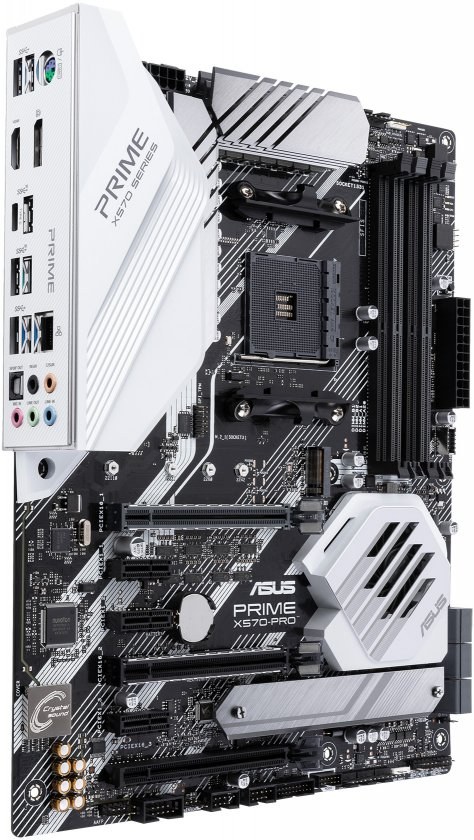

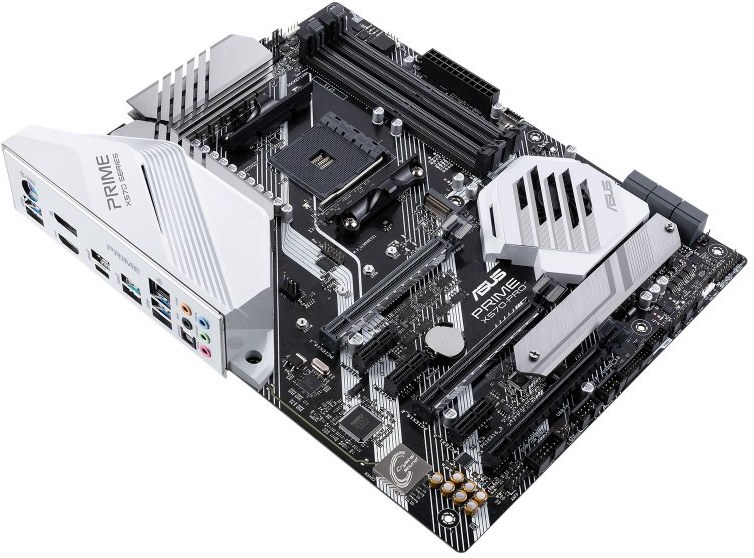

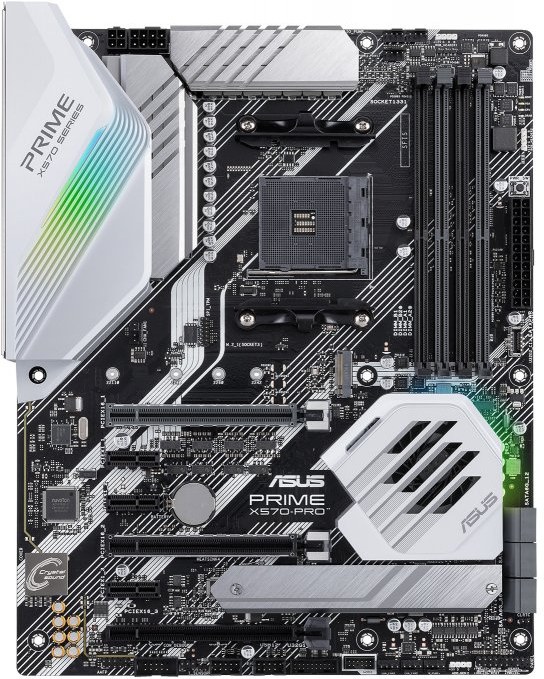

ASUS PRIME X570-PRO

Chipset: AMD X570 Rozměrový formát: ATX ( 30.5 cm x 24.4 cm ) Podpora pro procesory: 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Patice procesoru: AM4 Pozice na paměti: *3rd Gen AMD Ryzen™ Processors *4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *2nd Gen AMD Ryzen™ Processors *4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory *2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors *4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU. Grafická karta: *HDMI 2.0b maximální rozlišení 4096 x 2160 @ 60 Hz *DisplayPort 1.2 maximální rozlišení 4096 x 2160 @ 60 Hz Zvuková karta: Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 Síťová karta: Intel® I211-AT Rozšiřující sloty: *3rd Gen AMD Ryzen™ Processors *2 x PCIe 4.0 x16 (x16 or dual x8) *2nd Gen AMD Ryzen™ Processors *2 x PCIe 3.0 x16 (x16 or dual x8) *2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors *1 x PCIe 3.0 x16 (x8 mode) *AMD X570 chipset *1 x PCIe 4.0 x16 (max at x4 mode) *3 x PCIe 4.0 x1 RAID řadič: Raid 0, 1, 10 SATA: 6 x SATA 6Gb/s port(s) M.2: *3rd Gen AMD Ryzen™ Processors : *1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support *2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : *1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support *AMD X570 chipset : *1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support USB: *3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : *4 x USB 3.2 Gen 1 port(s) (4 na zadním panelu, blue, Type-A) *AMD X570 chipset : *1 x USB 3.2 Gen 2 front panel connector port(s) *AMD X570 chipset : *4 x USB 3.2 Gen 2 port(s) (4 na zadním panelu, teal blue, 3 x Type-A+1 x Type-C) *AMD X570 chipset : *2 x USB 3.2 Gen 1 port(s) (2 na základní desce) *AMD X570 chipset : *4 x USB 2.0 port(s) (4 na základní desce) Interní porty: *2 x Aura RGB Strip Headers *1 x Addressable Gen 2 header(s) *2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode) *1 x SPI TPM header *1 x COM port(s) connector(s) *6 x SATA 6Gb/s connector(s) *1 x CPU Fan connector(s) (1 x 4 -pin) *1 x CPU OPT Fan connector(s) (1 x 4 -pin) *3 x Chassis Fan connector(s) (3 x 4 -pin) *1 x PCH_FAN (1 x 4 -pin) *1 x AIO_PUMP connector (1 x 4 -pin) *1 x 24-pin EATX Power connector(s) *1 x 8-pin ATX 12V Power connector(s) *1 x 4-pin ATX 12V Power connector(s) *1 x Front panel audio connector(s) (AAFP) *1 x System panel(s) *1 x Power-on button(s) *1 x Clear CMOS jumper(s) *1 x Node Connector(s) *1 x Water Pump header (4-pin) *1 x T_Sensor Connector *1 x USB 3.2 Gen 2 (up to 10Gbps) connector *1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Externí porty: *1 x PS/2 keyboard/mouse combo port(s) *1 x DisplayPort *1 x HDMI *1 x LAN (RJ45) port(s) *1 x Optical S/PDIF out *5 x Audio jack(s) *4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A *3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) *1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) BIOS: UEFI AMI BIOS, 256 Mb Flash ROM Příslušenství: *User's manual *2 x SATA 6Gb/s cable(s) *1 x M.2 Screw Package *1 x Supporting DVD *1 x Q-connector(s) (1 in 1) *1 x Extension cable for Addressable LED https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
