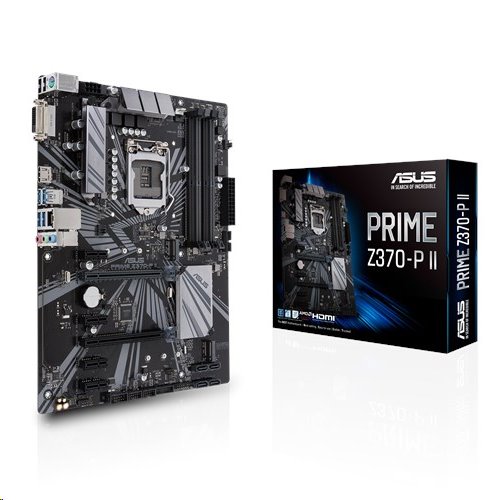

ASUS PRIME Z370-P II soc.1151 Z370 DDR4 ATX M.2 USB3.1 DVI HDMI

ASUS PRIME Z370-P II soc.1151 Z370 DDR4 ATX M.2 USB3.1 DVI HDMI

Základná doska Intel LGA-1151 ATX s LED osvetlením, DDR4 4000MHz, Duálnym M.2, podporou Intel Optane Memory, HDMI, SATA 6Gb/s, USB 3.1 Gen 1
Pripravená pre 9. a 8. generáciu procesorov Intel® Core™, Pentium® Gold a Celeron® na pätici 1151
Vylepšené riešenie napájania: Špičkové komponenty poskytujú lepšiu energetickú účinnosť
ASUS OptiMem: Pozorné smerovanie stôp a trás pre zachovanie integrity signálu pre lepšie pretaktovanie pamäte
5X Protection III: Viac bezpečnostných záruk pre kompletnú ochranu
Fan Xpert 4 Core: Flexibilné ovládacie prvky pre dokonalé chladenie či tichý chod
Ultra rýchle pripojenie: Duálna natívna podpora M.2 a NVMe PCIe RAID pre rýchle ukladacie rýchlosti
Podpora Intel Optane memory: Najnovšie technológie vysokorýchlostného ukladania dát.

Procesor
Intel® Socket 1151 for 8th/9th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list

Čipová sada
Intel® Z370

Pamäť
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.

Grafika
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Podpora viacerých grafických procesorov
Supports AMD CrossFireX™ Technology

Rozširujúce zásuvky
1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1

Úložný priestor
Intel® Z370 Chipset :
2 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card**

LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

ASUS LAN Guard
Zvuk
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Zásuvky USB
Intel® Z370 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue)
Intel® Z370 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )

Špeciálne funkcie
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 9 Phase digital power design
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Zadné vstupné a výstupné porty
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s)

Interné vstupy a výstupy
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x AIO PUMP Header

Príslušenstvo
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD

BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.1, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Spravovateľnosť
WfM 2.0, DMI 3.1, WOL by PME, PXE
Disk so softvérom

Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Operačný systém
Windows® 10 64-bit

Formát
ATX Form Factor
12.0 inch x 9.1 inch ( 30.5 cm x 23.1 cm )

Poznámka
* PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card.**
** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
*1 When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.
