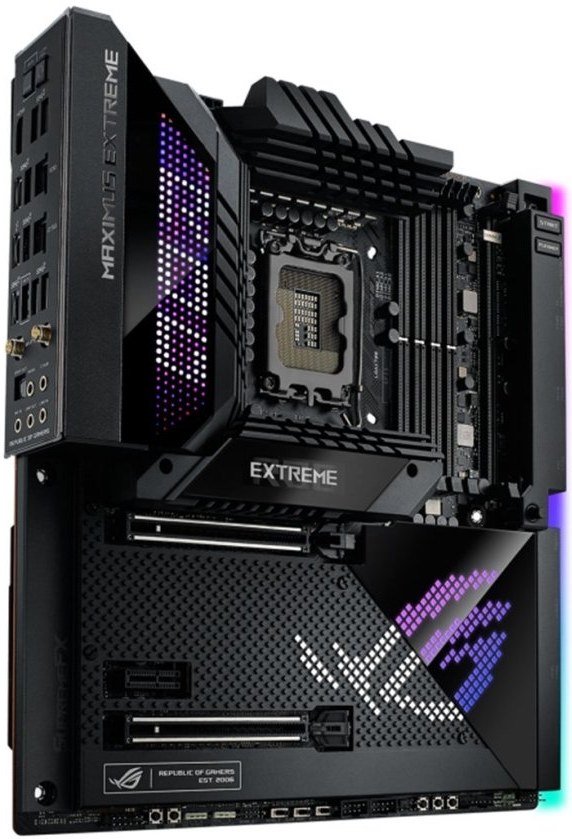

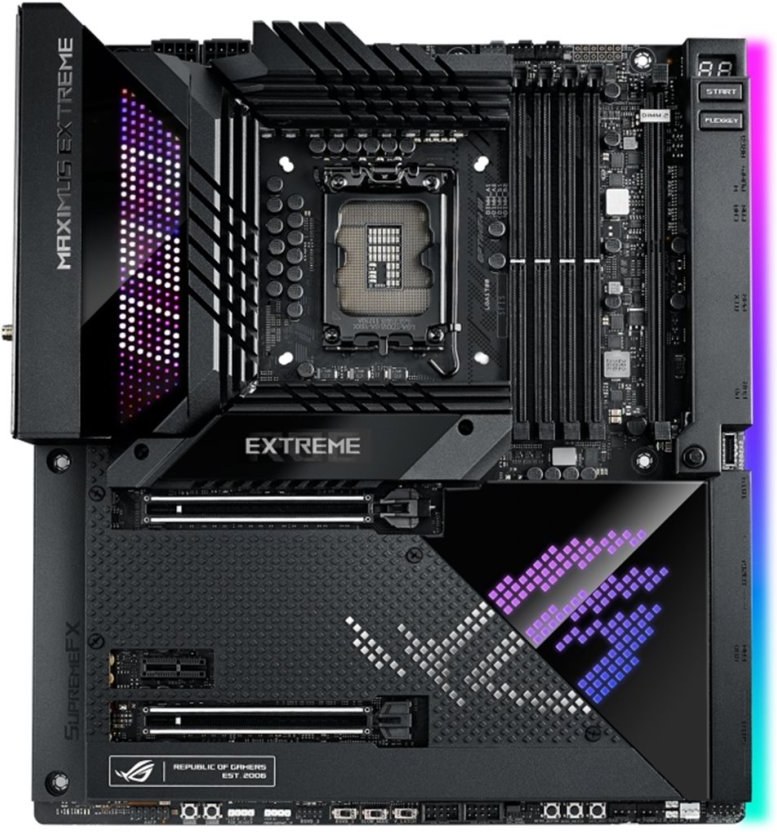

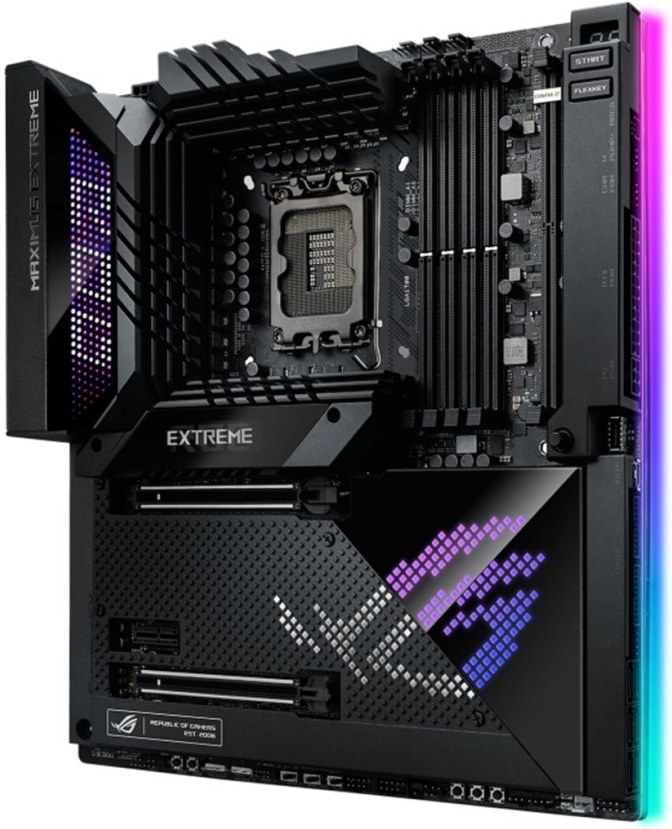

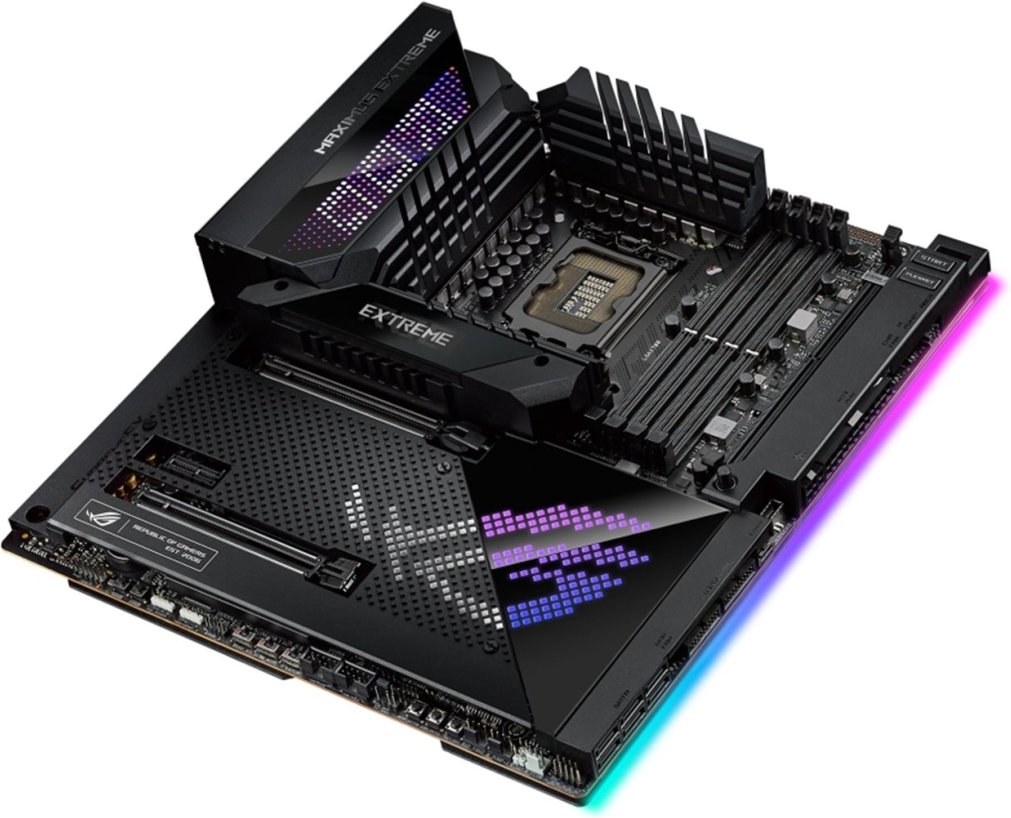

ASUS ROG MAXIMUS Z690 EXTREME

Chipset: Z690

Rozmerový formát: EATX (30.5 x 27.7 cm)
Podpora pre procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Pätica procesora: Intel Socket LGA1700

Pozícia na pamäti: 4 x DIMM
Podpora pre pamäte:
*DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un- buffered Memory
Max.veľkosť operačnej pamäte: 128GB
Podpora pre pamäte typu:
*DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/4800 Non-ECC, Un- buffered Memory
*Dual Channel Memory Architecture
*Supports Intel Extreme Memory Profile (XMP)
*OptiMom III

Grafická karta:
*2 x Intel Thunderbolt 4 porty (USB Type-C) support DisplayPort 1.4 a Thunderbolt video outputs

Zvuková karta:
*ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Sieťová karta:
*1 x Intel 2.5Gb Ethernet
*1 x Marvell 10Gb Ethernet
*Intel Wi-Fi 6E

Rozširujúce sloty:
Intel 12th Gen Processors:
*2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel Z690 Chipset:
*1 x PCIe 3.0 x1 slot

RAID radič: RAID 0/1/5, SATA RAID 0/1/5/10

SATA:
*6 x SATA 6Gb/s ports

M.2:
*5 x M.2 slots

USB:
* zadné USB porty ( celkom 10 )
*1 x Thunderbolt 4 port (1 x USB Type-C)
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
* predné USB porty ( celkom 10 )
*1 x Thunderbolt 4 konektor (1 x USB Type-C)
*1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interné porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*2 x 4-pin Chassis Fan headers
*2 x 4-pin Radiator Fan headers
*2 x W_PUMP+ headers
*1 x WB_SENSOR header
*1 x 2-pin Water In header
*1 x 2-pin Water Out header
*1 x 3-pin Water Flow header
*1 x 24-pin Main Power connector
*2 x 8-pin +12V Power connector
*1 x 6-pin PCIe Graphics Card connector
*3 x M.2 slots (Key M)
*1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
*6 x SATA 6Gb/s ports
*1 x Intel Thunderbolt 4 port (USB Type-C)
*1 x USB 3.2 Gen 2x2 konektor (supports USB Type-C)
*2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
*1 x Addressable Gen 2 header
*1 x AURA RGB header
*1 x BIOS Switch button
*2 x BCLK button
*1 x FlexKey button
*1 x Front Panel Audio header (AAFP)
*1 x LN2 Mode jumper
*1 x Osc sence header
*12 x ProbeIt Measurement Points
*1 x ReTry button
*1 x RSVD switch
*1 x RSVD header
*1 x Safe Boot button
*1 x Slow Mode switch
*1 x Štart button
*1 x V_Latch switch
*1 x 10-1 pin System Panel header
*1 x Thermal Sensor header

Externé porty:
*1 x Thunderbolt 4 USB Type-C port
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C)
*1 x HDMI port
*1 x ASUS Wi-Fi Module
*1 x Intel 2.5Gb Ethernet port
*1 x Marvell AQtion 10Gb Ethernet port
*5 x LED-illuminated audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack button
*1 x Clear CMOS button

BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobcu: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z690-extreme-model/spec
