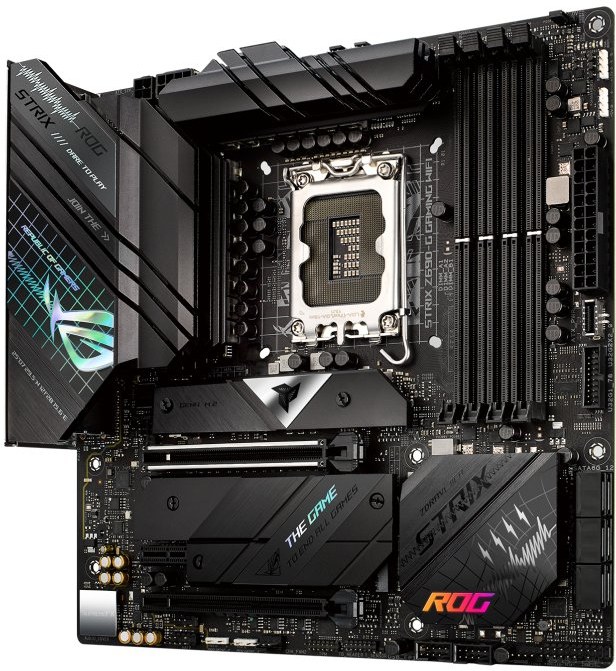

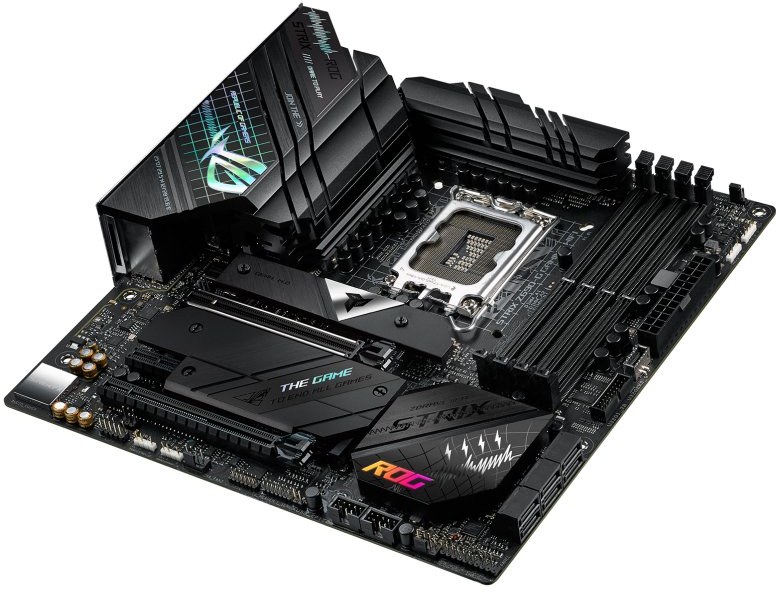

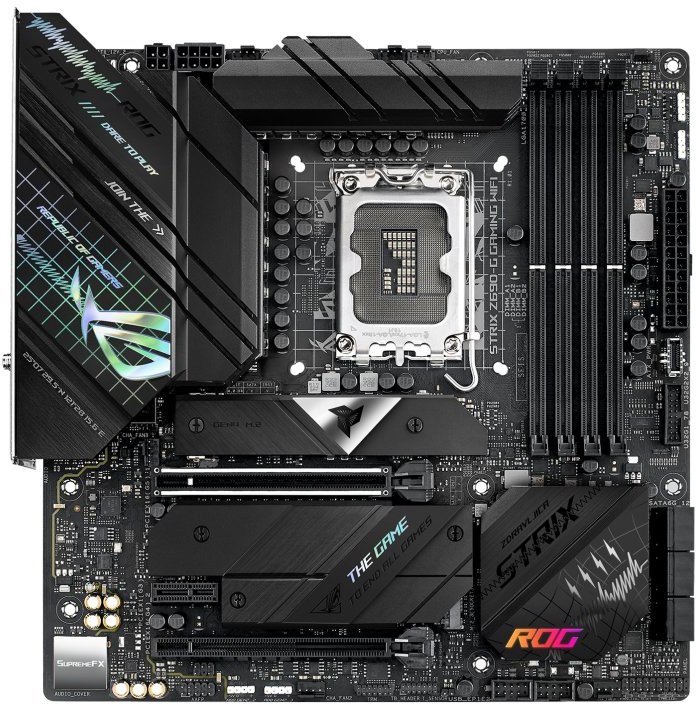

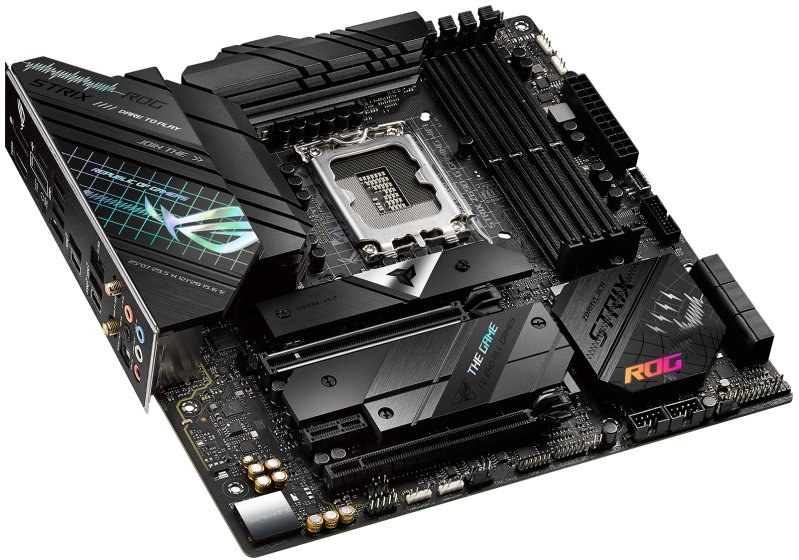

ASUS ROG STRIX Z690-G GAMING WIFI

ASUS ROG STRIX Z690-G GAMING WIFI

Základná doska Intel® Z690 LGA 1700 ATX s PCIe® 5.0, 14+1 DrMos, podpora pamäte DDR5, obojsmerné potlačenie hluku AI, pretaktovanie AI, chladenie AI, sieť AI, WiFi 6E (802.11ax), Intel® 2,5 Gb Ethernet, tri M.2 sloty s chladičmi, podpora PCIe® 4.0 NVMe® SSD, M.2 backplates, USB 3.2 Gen 2x2 Type-C®, SATA a AURA Sync RGB osvetlenie
Patica Intel® LGA 1700: Pripravená pre procesory Intel Core™, Pentium® Gold a Celeron® 12. generácie
Optimálne riešenie napájania: 14+1 DrMos s napájacím konektorom ProCool II, vysokokvalitné zliatinové tlmivky a odolné kondenzátory na podporu viacjadrových procesorov
Optimalizovaný tepelný dizajn: Integrovaný kryt I/O a chladiče VRM s tepelnou podložkou s vysokou vodivosťou, tri zabudované chladiče M.2 a zadné platne M.2 pre dva sloty M.2
Vysokovýkonná sieť: Integrovaná Intel® WiFi 6E (802.11ax) a Intel® 2,5 Gb Ethernet s ASUS LANGuard
Najlepšie herné pripojenie: Podporuje výstup HDMI® 2.1 a DisplayPort™ 1.4, tri sloty M.2, ako aj USB 3.2 Gen 2x2 Type-C®
Inteligentné ovládanie: exkluzívne pretaktovanie AI od spoločnosti ASUS a obojsmerné potlačenie hluku AI na zjednodušenie nastavenia a zlepšenie výkonu
Urob si svoj vlastný dizajn: M.2 Q-Latch, predmontovaný I/O štít, tlačidlo BIOS FlashBack™ a tlačidlo Clr CMOS
Bezkonkurenčná personalizácia: exkluzívne osvetlenie ASUS Aura Sync RGB vrátane hlavičky RGB a troch adresovateľných hlavičiek Gen 2
Špičkový herný zvuk: Vysoko verný zvuk s ALC4080 so zosilňovačom Savitech SV3H712 spolu s DTS® Sound Unbound a Sonic Studio III
Renomovaný softvér: Pribalený AIDA64 Extreme 60-dňová bezplatná skúšobná verzia a intuitívny ovládací panel UEFI BIOS s integrovaným MemTest86

Technické parametre

CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® 10 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Čipset
Intel® Z690 Chipset

Pamäť
4 x DIMM, Max. 128GB, DDR5 6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Grafika
1 x DisplayPort 1.4**
1 x HDMI® 2.1***
* Graphics specifications may vary between CPU types.
** Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates.
*** Support HDMI® 2.1 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates.

Sloty rozšírenia
Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x8 modes)
Intel® Z690 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Úložisko
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
"Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. "

USB
Rear USB (Total 15 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
