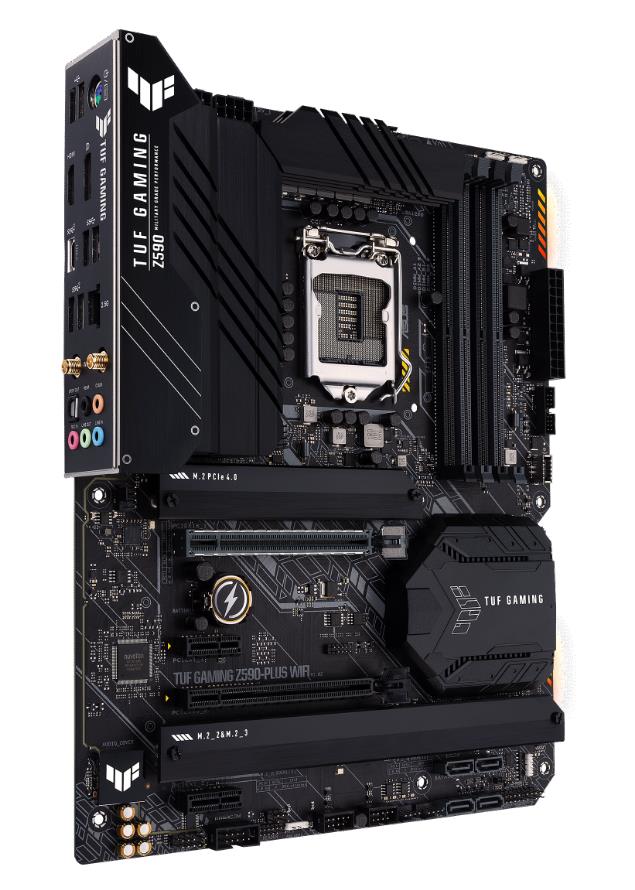

ASUS TUF GAMING Z590-PLUS WIFI, (rozbalené)

Chipset: Intel® Z590 Chipset Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *Intel® Extreme Memory Profile (XMP) *OptiMem II Grafická karta: *Integrated Graphics Processor (na základě procesoru) Zvuková karta: *Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *1x Intel® I225-V 2.5Gb Ethernet *Intel® Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax) *Bluetooth 5.0 Rozšiřující sloty: *1x PCIe 4.0/3.0 x16 slot *1x PCIe 3.0 x16 slot (supports x4 mode) *2x PCIe 3.0 x1 slots SATA: *6x SATA 6Gb/s ports M.2: *M.2_1 slot (Key M), type 2242/2260/2280/22110 *M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) *M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) USB: *zadní USB porty ( celkem 7 ) *1x USB 3.2 Gen 2x2 port (1 x USB Type-C®) *2x USB 3.2 Gen 2 ports (2 x Type-A) *2x USB 3.2 Gen 1 ports (2 x Type-A) *2x USB 2.0 ports (2 x Type-A) *přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 1 connector (suppports USB Type-C®) *2x USB 3.2 Gen 1 ports *4x USB 2.0 ports Interní porty: *1x 4-pin CPU Fan header *1x 4-pin CPU OPT Fan header *1x 4-pin AIO Pump header *3x 4-pin Chassis Fan headers *1x 24-pin Main Power connector *1x 8-pin +12V Power connector *1x 4-pin +12V Power connector *3x M.2 slots (Key M) *6x SATA 6Gb/s ports *1x USB 3.2 Gen 1 connector (supports USB Type-C®) *1x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports *2x USB 2.0 headers support additional 4 USB 2.0 ports *2x AURA Addressable Gen 2 headers *2x AURA RGB headers *1x Clear CMOS header *1x COM Port header *1x Front Panel Audio header (AAFP) *1x 20-3 pin System Panel header with Chassis intrude function *1x Thunderbolt™ header Externí porty: *1x USB 3.2 Gen 2x2 port (1 x USB Type-C®) *2x USB 3.2 Gen 2 ports (2 x Type-A) *2x USB 3.2 Gen 1 ports (2 x Type-A) *2x USB 2.0 ports (2 x Type-A) *1x DisplayPort *1x HDMI™ port *1x ASUS Wi-Fi Module *1x Intel® I225-V 2.5Gb Ethernet port *5x Audio jacks *1x Optical S/PDIF out port *1x PS/2 Keyboard/Mouse combo port Obsah balení: *2x SATA 6Gb/s cables *1x ASUS Wi-Fi moving antenna *2x M.2 Rubber Packages *1x M.2 SSD screw package *1x TUF Gaming sticker *1x Support DVD *1x TUF Certification card *1x User manual BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/All-series/TUF-Gaming-Z590-PLUS-WIFI https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
