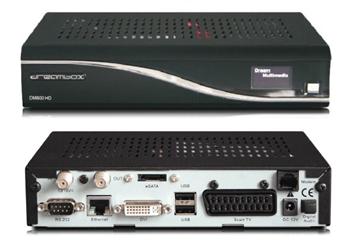

Dreambox DM-800 PVR

Dreambox DM-800 PVR

Satelitní příjmač Dreambox DM-800 PVR

   * 300 MHz MIPS Processor
   * Linux Operating System
   * OLED Display
   * MPEG-2 / H.264 Hardware decoding
   * Tuner: DVB-S, optional: DVB-C, DVB-T
   * Tuner Module, Plug&Play
   * 1 x Smartcard-Reader
   * V.24/RS232 Interface
   * 10/100Mbit Ethernet Interface
   * 1 x Scart (RGB, FBAS or S-Video)
   * DVI
   * 2 x USB 2.0
   * analog modem
   * S/PDIF Interface for digital bit stream out (AC-3)
   * 64 MByte Flash, 256 MByte RAM

SATA

   * for use either as internal SATA HDD 2,5“
   * or to use for extern eSATA
   * unlimited channel lists for TV/Radio
   * automatic service scan
   * directly bouquet-lists
   * EPG (electronic program guide)
   * multiple LNB-Switching control (supports DiSEqC)
   * OSD in many languages and skin-support
   * Videotext Decoder
   * extern 12V power supply

DreamBox DM800 technical data

DBS-Tuner mit DVB-S2:

   * Frequency Range 950 .... 2150 MHz
   * Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
   * Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
   * DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)

Video decoder:

   * Video Compression MPEG-2 and MPEG-1 compatible, H.246
   * Video Formats 4:3 / 16:9
   * Letterbox for 4:3 TV-Device

Audio decoder:

   * Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
   * Audio Mode Dual (main/sub), Stereo
   * Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog

Output digital:

   * S/PDIF-Output optical, Toslink

TV-Scart Output: FBAS, RGB, S-Video

Serielle Interface RS 232:

   * Typ RS232 bidirectional, Bitrate 115,2 kBit/s max., Plug Connector SUB-D-9, Function: Update of Firmware

Ethernet 0/100 MBit compatible interface, Function: Update of Firmware

Analoge modem analoge modem for Internet connection

SATA Interface for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD

2 x USB 2.0 Host

LNB power and polarisation per tuner:

   * LNB Current 500mA max.; short-circuit-protected
   * LNB Voltage vertical < 14V no load, > 11,5V at 400mA
   * LNB Voltage horizontal < 20V no load, > 17,3V at 400mA

Count of active satellite position:

   * DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
   * DiSEqC Rotor Control

Power consumption: < 15W at 12V

Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 3,0A

Size (W x D x H): 195 mm x 140 mm x 40 mm
Weight: 1,8 kg without HDD
