Gigabyte GA-X99-UD3, X99, QuadDDR4-2133, SATA Express, SATA3, RAID, ATX

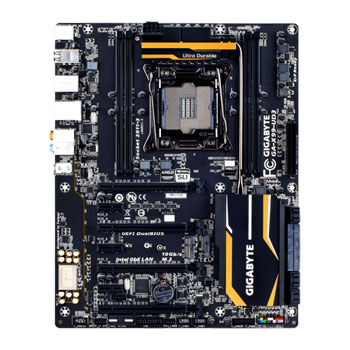

Gigabyte GA-X99-UD3

   Supports New Intel® Core™ i7 Processor Extreme Edition
   4 Channel DDR4, 4 DIMMs
   Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage® ICs
   4-Way Graphics with Premium PCIe Lane
   Dual M.2 Technology for SSD Drive and WIFI card
   6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots
   Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier
   Independent Right and Left Audio Channel PCB Layers
   LED lighting for the audio guard light path
   All Stainless Steel connectors on rear panel
   High end quality audio capacitors
   SATA Express support for up to 10 Gb/s data transfer
   Long lifespan Durable Black™ Solid caps
   APP Center including EasyTune™ and Cloud Station™ utilities
   Thunderbolt™ Ready
   GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port
   Safer design around screw mounting holes

CPU

   Support for Intel® Core™ i7 processors in the LGA2011-3 package
   L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset

   Intel® X99 Express Chipset

Memory

   4 x DDR4 DIMM sockets supporting up to 32 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
   4 channel memory architecture
   Support for DDR4 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modules
   Support for non-ECC memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   Support for RDIMM 1Rx8 memory modules (operate in non-ECC mode)

(Please refer "Memory Support List" for more information.)
Audio

   Realtek® ALC1150 codec
   High Definition Audio
   2/4/5.1/7.1-channel
   Support for S/PDIF Out

LAN

   Intel® GbE LAN chips (10/100/1000 Mbit)

Expansion Slots

       2 x PCI Express x16 slots, running at x16 (PCIE_1, PCIE_2)
       * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.


       2 x PCI Express x16 slots, running at x8 (PCIE_3, PCIE_4)
       * The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.
       * When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.
       (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
       ?


       3 x PCI Express x1 slots
       (The PCI Express x1 slots conform to PCI Express 2.0 standard.)


   1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Multi-Graphics Technology

   Support for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology
   * The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration."

Storage Interface Chipset:

   1 x M.2 PCIe connector
   (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support)
   1 x SATA Express connector
   6 x SATA 6Gb/s connectors (SATA3 0~5)
   Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.
   (M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)

Chipset:

   4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only
   (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)

USB Chipset:

   4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset + Renesas®uPD720210 USB 3.0 Hub:

   4 x USB 3.0/2.0 ports on the back panel

Internal I/O Connectors

   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x PCIe power connector
   1 x M.2 Socket 3 connector
   1 x SATA Express connector
   10 x SATA 6Gb/s connectors
   1 x CPU fan header
   1 x water cooling fan header (CPU_OPT)
   3 x system fan headers
   1 x front panel header
   1 x front panel audio header
   1 x USB 3.0/2.0 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module (TPM) header
   1 x Thunderbolt add-in card connector
   1 x Clear CMOS jumper

Back Panel Connectors

   1 x PS/2 keyboard port
   1 x PS/2 mouse port
   6 x USB 3.0/2.0 ports
   4 x USB 2.0/1.1 ports
   1 x RJ-45 port
   1 x optical S/PDIF Out connector
   5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
   2 x Wi-Fi antenna connector holes

I/O Controller

   iTE® I/O Controller Chip

H/W Monitoring

   System voltage detection
   CPU/System/Chipset temperature detection
   CPU/CPU OPT/System fan speed detection
   CPU/System/Chipset overheating warning
   CPU/CPU OPT/System fan fail warning
   CPU/CPU OPT/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

   2 x 128 Mbit flash
   Use of licensed AMI UEFI BIOS
   Support for DualBIOS™
   Support for Q-Flash Plus
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

   Support for APP Center
   * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
   @BIOS
   Ambient LED
   EasyTune
   EZ Setup
   Fast Boot
   Cloud Station
   ON/OFF Charge
   Smart TimeLock
   Smart Recovery 2
   System Information Viewer
   USB Blocker
   V-Tuner
   Support for Q-Flash
   Support for Smart Switch
   Support for Xpress Install

Bundle Software

   Norton® Internet Security (OEM version)
   Intel® Smart Response Technology
   cFosSpeed

Operating System

   Support for Windows 8.1/8/7

Form Factor

   ATX Form Factor; 30.5cm x 24.4cm
