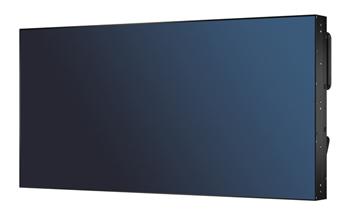

LCD NEC X461UNV 46"

LCD NEC X461UNV 46"

DISPLAY
Panel Technology S-PVA, jossa CCFL-taustavalot
Active Screen Area (W x H) [mm] 1,018 x 573
Screen Size [inch/cm] 46 / 117
Aspect Ratio 16:9
Brightness (shipping) [cd/m^(2)] 390, (450 max)
Contrast Ratio (typ.) 3000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 8 (grey-to-grey)
Kuvanvaihtotaajuus [Hz] 60
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz] 50 - 85
RESOLUTION
Native Resolution 1366 x 768 at 60 Hz
Supported on digital and analogue inputs (PC) 1024 x 768; 1140 x 900; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1360 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600
Supported on digital inputs (Video) 1280 x 720p (50)16:9 ; 1920 x 1080i (59.94/60)16:9 ; 1920 x 1080p (23.97/24)16:9 ; 1920 x 1080p (25)16:9 ; 1920 x 1080p (29.97/30)16:9 ; 1920 x 1080p (50)16:9 ; 1920 x 1080p (59.94/60)16:9 ; 1920 x 720p (59.94/60)16:9 ; 720 x 480p (59.94/60)16:9 ; 720 x 576p (50)16:9
CONNECTIVITY
Input Video Analogue 1 x D-sub 15 pin; 1 x S-Video; Component (RCA); Composite (BNC + RCA); RGBHV for PC
Input Video Digital 1 x DVI-D (with HDCP); 1 x HDMI 1.3; 1 x DisplayPort
Input Audio Analogue 2 x Cinch (RCA); 1 x 3,5 mm jack
Input Audio Digital 1x HDMI
Input Control LAN 100Mbit; RS232; remote control wire (3,5mm jack)
Output Video Analogue Composite (BNC); RGBHV
Output Audio Analogue 1 x RCA
Output Control RS232; remote control wire (3,5mm jack)
Option Slot Technology STv1
Remote Control LAN with SNMP ; RS-232C (9-pin D-sub) Input and Output; Remote Control IR (internal/external (optional) sensor)
ELECTRICAL
Power Consumption on Mode [W] 125 shipping; 260 (max.)
Power Savings Mode [W] < 0.5 (ECO Standby); < 1
Power Management VESA DPMS
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +5 to +40
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to +60
MECHANICAL
Dimensions (W x H x D) [mm] Without stand: 1,025.7 x 579.8 x 128.1
Bezel Width [mm] 2.7 bottom/right; (Sisältö sisältöön: 7,3 alh./oik.; 7,3 ylh./vas.)
VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6
MECHANICAL
Bezel Width [mm] 4.6 top/left
Weight [kg] 26.8
AVAILABLE OPTIONS
Option Slot Built-in PC; CAT 5 receiver; DVBT-Tuner; DVI daisy chain board; HD-SDI board; Mediasoitin
Accessories Jalat (ST-4620); Kalibrointisarja (KT-X46UN-CC); Kaukosäädinsarja (KT-RC); Kehyssarja (KT-46UN-OF); Seinäasennus (WM-46UN-L;WM-46UN-P)
ADDITIONAL FEATURES
Colour Versions Black Front Bezel, Black Back Cabinet
Shipping Content Display; Power Cable; VGA-kaapeli; interface cover; CD-ROM (User Guides/Manuals)
Signal Cable: 3,5 mm jack
Warranty 3 years warranty incl. backlight
