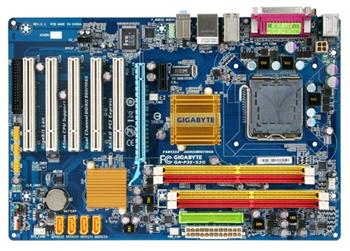

MB GIGABYTE P35-S3G

MB GIGABYTE P35-S3G

Specifications
CPU

  1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
     (Go to GIGABYTE's website for the latest CPU support list.)
  2. L2 cache varies with CPU

Front Side Bus

  1. 1333/1066/800 MHz FSB

Chipset

  1. North Bridge: Intel® P35 Express Chipset
  2. South Bridge: Intel® ICH9

Memory

  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR2 1066/800/667 MHz memory modules
     (Go to GIGABYTE's website for the latest memory support list.)

Audio

  1. Realtek AL662 codec
  2. High Definition Audio
  3. 2/4/5.1-channel
  4. Support for S/PDIF Out
  5. Support for CD In

LAN

  1. Realtek 8111B chip (10/100/1000 Mbit)

Expansion Slots

  1. 1 x PCI Express x16 slot
  2. 1 x PCI Express x1 slot
  3. 5 x PCI slots

Storage Interface South Bridge:

  1. 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII4, SATAII5) supporting up to 4 SATA 3Gb/s devices

JMicron 368 chip:

  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8718 chip:

  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

  1. Integrated in the South Bridge
  2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 4 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
 10. 1 x front panel audio header
 11. 1 x CD In connector
 12. 1 x S/PDIF Out header
 13. 3 x USB 2.0/1.1 headers
 14. 1 x power LED header
 15. 1 x chassis intrusion header

Back Panel Connectors

  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x parallel port
  4. 1 x serial port
  5. 6 x USB 2.0/1.1 ports
  6. 1 x RJ-45 ports
  7. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

  1. iTE IT8718 chip

H/W Monitoring

  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU samrt fan control

BIOS

  1. 1 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS

Bundle Software

  1. Norton Internet Security (OEM version)

Operating System

  1. Support for Microsoft® Windows® Vista/XP/2000

Form Factor

  1. ATX Form Factor; 30.5cm x 20.7cm

Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
  3. To enable hot plug capability for the SATA connectors controlled by the ICH9 South Bridge, you must install Windows Vista (on ICH9, hot plug is supported in Windows Vista only) and configure the SATA connectors for AHCI mode. (Refer to manual Chapter 2, "BIOS Setup," "Integrated Peripherals," for details on enabling AHCI.)
