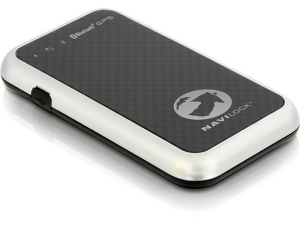

NaviLock GPS Bluetooth Receiver BT-399

NaviLock GPS Bluetooth Receiver BT-399

Dostupnost od 31.8.2011

Chipset/type SiRF star III GSC3FLP
Channels 20 channel
Sensibility -158dBm
Frequency L1, 1575.42MHz
C/A Code 1.023MHz Chip Rate

Accuracy:
Horizontal position 5m CEP (S/A off)
Time 1 micro-sec synchronized to GPS-time
Speed 0.1m/sec 95% (SA off)
Date: WGS-84
Protocol: NMEA-0183 V3.01 GGA(1sec), GSA(1sec),
GSV(5sec), RMC(1sec)

Acquisition rate:
Hot start 3.5s average (with ephemeris and almanac)
Warm start 38s average (with almanac but without ephemeris)
Cold start 42s average (either almanac nor ephemeris)
Reacquisition 1s average (recovery time after interruption)
UP-DATE Rate: 1Hz

Dynamic requirements:
Acceleration less than 4g
Altidue 18000 meter (60000 feet) maximum
Speed 515 meter/sec. (1000 knots) maximum

Performance:
Operation time maximum 10 hours
Rechargeable battery 3,7 Volt 700mA Li-ION battery
Connector: USB
Bluetooth: CSR BC4 Bluetooth Chipset V1.1 (Class 2) Serial Port
Operation temperature: -10°C ~ 60°C
Weight: 30g with battery
Dimensions: 40.0 mm x 70.0 mm x 9.2 mm

Package content*
1x Navilock BT-399
1x Power supply
1x Car-Charger
1x USB Mini cable
1x 3,7 Volt 850mA rechargeable battery (internal)
1x User manual
1x 8cm CD ROM
1x Navilock key strap
