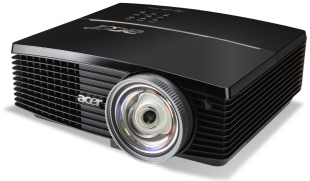

Projektor Acer DLP 3D S5301WB Ultra Short Throw

Projektor Acer DLP 3D S5301WB Ultra Short Throw

Acer S5301WB DLP 3D, (ECO, CBII+), UST Lens, WXGA 1280x800, 4500:1, 3000LUMENS, 3,5Kg, 2xHDMI, brašna

Ideálnu vzdialenosť projektora od plátna v rôzne veľkých miestnostiach sa dozviete na adrese http://www.acer-euro.com/pjcalculator/

Specifications / Model Name Acer S5301WB
EMI/Safety Model No. QWX1026
Projection System DLP®
Display Panel 0.65" DarkChipTM 3 DMD
Resolution "Native WXGA (1,280 x 800)
Maximum UXGA (1,600 x 1,200), 1080p (1,920 x 1,080)"
Computer Compatibility IBM PC and Compatibles, Apple iMac/MacBook, and VESA Standards  1080p (1,920x1,080), WSXGA+ (1,680 x 1,050), WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), UXGA (1,600 x 1,200), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480)
Video Compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect Ratio 16:10 (Native), 4:3, 16:9
Contrast Ratio 4500:1
Displayable Colors 1.07 Billion Colors
Brightness 3,000 ANSI Lumens (Standard), 2,400 ANSI Lumens (ECO)
Projection Lens "F = 2.6, f = 6.90mm,
Manual Focus"
Projection Screen Size (Diagonal) 47" (120cm) ~ 300" (762cm)
Projection Distance 1.6' (0.5m) ~ 10.4' (3.2m)
Throw Ratio 87"@92cm (0.49:1)
Horizontal Scan Rate 30k ~ 100k Hz
Vertical Refresh Scan Rate 50 ~ 120 Hz
Lamp Type Philips 230 W user replaceable UHP lamp
Lamp Life 3,500 Hours (Standard), 5,000 Hours (ECO)
Keystone Correction +/-40 Degrees (Vertical ), Manual
Projection Mode Front, Rear, Front-Ceiling, Rear-Ceiling
Ceiling Mounting Capability Yes
Audio 10 watts speaker (Two internal speaker with 5 watts output)
Weight 7.6 lbs (3.5Kg)
Dimensions 290 x 254 x 99 mm (11.4" x 10" x 3.9")
Remote Control IR remote control with laser pointer & PgUp/PgDn functions
Digital Zoom 2X
PIP N/A
Lens Shift N/A
Wireless Optional (By separate USB wireless adapter)
Power Supply AC input 100~240V auto-switching power supply
Power Consumption 352 Watts (Operation), <1 Watts (Standby, LAN off)
Operating Temperature 5°C ~ 35°C / 41°F ~ 95°F
Operating Humidity 80%RH (Max.)
Noise Level 33 dBA (Standard mode), 28 dBA (ECO mode)
Uniformity 90%
Input Interface Analog RGB/Component Video (D-sub) x 2
Composite Video (RCA) x 1
S-Video (Mini DIN) x 1
HDMI (Video, HDCP) x 2
PC Audio (Stereo mini jack) x 2
USB (Type A) x 2
USB (Mini-B) x 1
Mic In (Stereo mini jack) x 1


Output Interface Analog RGB (D-sub) x 1
PC Audio (Stereo mini jack) x 1



Control Interface USB (Mini-B) x 1, shared with the one of Input Interface
RS232 (Mini DIN) x 1
12V DC (Screen control) x 1

Network Interface Ethernet port (RJ45) x 1



Standard Accessories AC power cord
VGA cable
Composite video cable
Remote control
Battery x 2 for remote control
Lens cap
Carrying case
User's guide (CD-ROM)
Network/Multimedia guide (CD-ROM)
Quick start guide
Security card
