RICOH SP C320DN, 25str./min, 384 MB, LAN, Duplex

RICOH SP C320DN

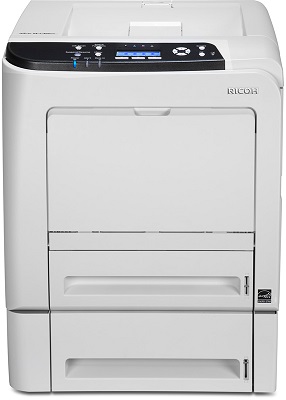

The highly productive Aficio™SP C320DN prints 25 colour and black-and-white pages per minute, with is no loss of speed when printing in duplex mode for double sided output. Paper up to 220gsm as well as envelopes, labels and card stock can be printed on by this versatile colour laser printer. Print resolution is excellent at 1,200 x 1,200 dpi producing high-quality colour documents. Paper capacity is an outstanding 1,100 sheets when the bypass and optional paper trays are installed.


Specifications

Technology Laser beam scanning & electro-photographic printing

Print speed Full colour 25 prints per minute

B/W 25 prints per minute

Warm-up time Less than 20 seconds

First print speed 13.5 seconds

Dimensions (W x D x H) 400 x 480 x 387 mm

Weight Less than 29 kg

Power source 220 - 240 V, 50 - 60 Hz

Power consumption Maximum Less than 1.3 kW

Energy saver mode Less than 5.5 W

Duty cycle 75,000 pages per month


CONTROLLER

Processor 533 MHz

Printer language Standard PCL5c, PCL6, PostScript® 3™2, PDF

Option PictBridge

Printer resolution 600 x 600 dpi/600 x 600 dpi (2 bit)/1,200 x 1,200 dpi

Memory Standard 384 MB

Maximum 768 MB

Fonts PCL 45 fonts + 13 International Fonts

PostScript® 3™2 80 fonts


CONNECTIVITY

Network protocol TCP/IP, AppleTalk, IPX/SPX, IP SEC

Supported environments Windows® 2000/XP/Vista/7/Server 2003/Server 2008

Citrix Presentation Server 4.0/4.5

Macintosh OS 8.6-9.2.X (OS X Classic)

Macintosh OS X v10.2. or later (native mode)

Novell® Netware® v6.5 or later

Interface Standard USB 2.0, 10 base-T/100 base-T Ethernet, USB 2.0 Host

Option Bi-directional IEEE 1284/ECP, Gigabit Ethernet, Wireless LAN (IEEE 802.11a/g)


SOFTWARE SOLUTIONS

•Font Manager 2000, Web Image Monitor


PAPER HANDLING

Paper input capacity Standard 500-sheet paper tray

100-sheet bypass tray

Maximum 1,100 sheets

Paper output capacity Up to 150 sheets (75 g/m2)

Paper size Standard paper tray A5 - A4 (minimum: 148 x 210 mm, maximum: 216 x 356 mm)

Bypass tray A6 - A4 (minimum: 64 x 125 mm, maximum: 216 x 1,260 mm)

Optional paper tray A4

Paper weight Paper trays 60 - 163 g/m2

Bypass tray 60 - 220 g/m2

Media Standard paper tray Plain paper, middle thick/thick paper, recycled paper, colour paper, letterhead, pre-printed/thin paper, coated paper (glossy & matted), special paper, label paper

Optional paper tray Plain paper, middle thick/thick paper, recycled paper, colour paper, letterhead, pre-printed/thin paper

Bypass tray Plain paper, (middle) thick paper, recycled paper, colour paper, letterhead, pre-printed/thin paper, coated paper (glossy/thick, matted/thick), special paper, label paper, envelopes



CONSUMABLES


Toner C, M, Y 6,600/2,800 pages1 (high/short yield)

K 7,200/2,800 pages1 (high/short yield)

Maintenance kit 90,000 prints per unit

Transfer belt unit 90,000 prints per unit

Waste toner bottle 55,000 prints per bottle

Consumable yield measuring method ISO/IEC 19798

The Aficio™SP C320DN ships with a 2,800-sheet starter kit.



OTHER OPTIONS


Internal options 256/512 MB memory, 80 GB HDD with HDD encryption unit & Data Overwrite Security Unit), Wireless LAN (IEEE 802.11a/g), PictBridge, VM card, Bi-directional IEEE 1284/ECP, Gigabit Ethernet Board, NetWare

External option 500-sheet paper tray

 2The SP C320DN does not run genuine PostScript® but an emulation.

For availability of models, options and software, please consult your local Ricoh supplier.
