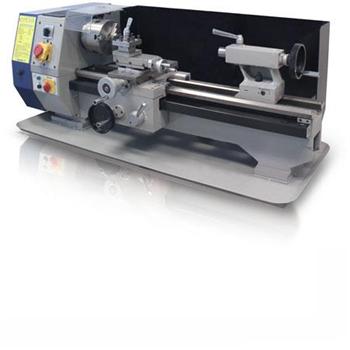

Sústruh univerzálny - 230V, 550mm
viac o produkteZobraziť viac
Produkt je vyradený !
V našej ponuke nájdete podobné modely. S výberom pomôžeme.
Kód tovaru
Výrobca
Záruka
24 mesiacov
OPÝTAJTE SA PORADCU
Zaradenie produktu
Popis produktu
Sústruh univerzálny - 230V
Distance between centers: 550mmDistance over bed: 125mm
Swing over bed: 250mm
speed range: 125-2000rpm, 6 steps
spindle bore: 19,8mm
Top slide travel: 74mm
Movement of tailstock quill: 70mm
Taper of spindle bore: MK2
Metric threads: (12) 0,4 – 3 mm
Whitworth threads: (8) 10 - 44Gg/1"
Feedrates longitudinal metric: (2) 0,1 – 0,3 mm U
Engine power: 600Watt/ 400V~50Hz
Main dimension (LxWxH): 1180 x 600 x 380mm
Basic Equipment:
machine bed, headstock, tailstock, compound -and cross slide
with four steel holder, lathe chuck (with changing jaws,
chuck key and fixing flange 125mm) that is mounted directly
on the main spindle with a cylinder mating and 3 screws,
10pcs. gears with the following number of teeth:
30/40/42/50/52/60/66/70/75/80
1pc. gear with mounting mandrel,
dead centre MK2, dead centre MK3, drive motor,
electric equipment, handling tools, user manual
short description:
An ideal machine for multi-purpose use, working on
different material. This machine can also be used for
drilling and milling in combination with an appropriate unit
which can be bought additionally and mounted on the
lathe machine.
Special made for precision mechanic, mechanical
workshops-schools, Optical-Electric- and Car-workshops.
Industrial machine according to EAG-VO, not released
Delivery without drilling and milling unit and underframe!
large choice of lathe accessories at Erba!
TAoV/GS - CE approved
