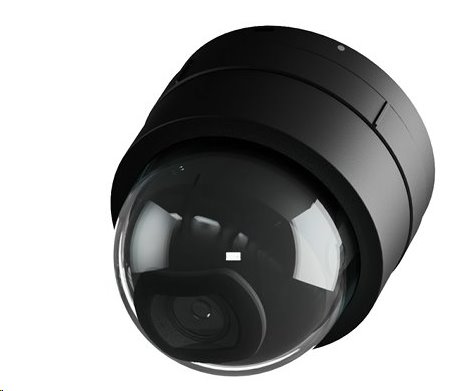

UBNT G5 Dome Ultra

UBNT G5 Dome Ultra

Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.

2K (4MP) video resolution
Ultra-wide viewing angle (102.4°)
20 m (65 ft) IR night vision
AI event detections
Connect and power using PoE
Optional Flush Mount for in-ceiling installation


Technical Specifications
Mechanical
Dimensions O63.6 x 68.2 mm (O2.5 x 2.7")
Weight 175 g (6.2 oz)
Enclosure material Aluminum alloy, polycarbonate
Mount material Stainless steel
Resistance IK06
Optics
Sensor 1/2.4" CMOS
Lens Fixed focal length
View angle H: 102.4°, V: 54.9°, D: 120.6°
Night mode Built-in IR LED illumination and IR cut filter
IR distance 20 m (65 ft)
Video
Resolution 4MP 2688 x 1512 (16:9)
Max. frame rate 30 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor Dual-core Arm® Cortex®-A7 based chip
Networking interface 10/100 MbE RJ45 port
Max. power consumption 4.2W
Power method PoE
Supported voltage range 37–57V DC
Button Factory reset
Mounting Surface mount
Ambient operating temperature -20 to 40o C (-4 to 104o F)
Ambient operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Software
Web application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
