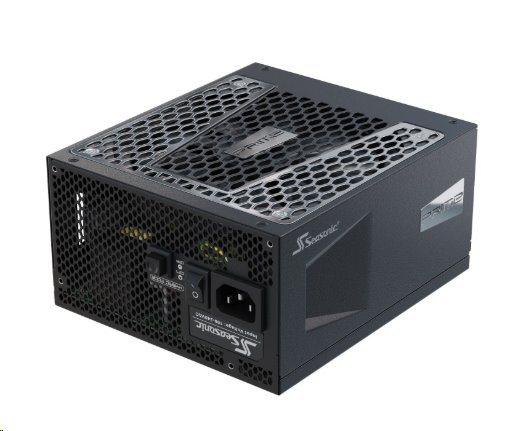

Zdroj 650W, Seasonic PRIME-GX-650 Gold 80+ (SSR-650GD2)

Zdroj 650W

80 PLUS® Gold certified
Micro Tolerance Load Regulation (0.5 %)
Cable-free Connection Design
Premium Hybrid Fan Control - Fanless until 40 % load
Multi-GPU setup
Gold plated connectors
12 years warranty


PRIME-GX-650
Technical Specifications
80PLUS®    Gold
Cybenetics Efficiency Level    TBA
Cybenetics Noise Level    TBA
Form Factor    Intel ATX 12 V
Dimensions    140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information    Fan Size    135 mm
Fan Control    Premium Hybrid Fan Control
Fan Bearing    Fluid Dynamic Bearing
Life Expectancy    50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information    Modularity    Fully Modular
Cable type    Flat black cables
Electrical Features    Operating Temperature    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan    150,000 hours
AC Input    Full Range
Protection    OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental    Safety and EMC    cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance    Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty    12 Years
Power Output
AC Input    Voltage: 100 V - 240 V
Current: 9 - 4.5 A
Frequency: 50 Hz - 60 Hz
DC Output    Rail    +3.3 V    +5 V    +12 V    -12 V    +5 VSB
Maximum Power    20 A    20 A    54 A    0.3 A    3 A
100 W    648 W    3.6 W    15 W
Total continuous power    650 W

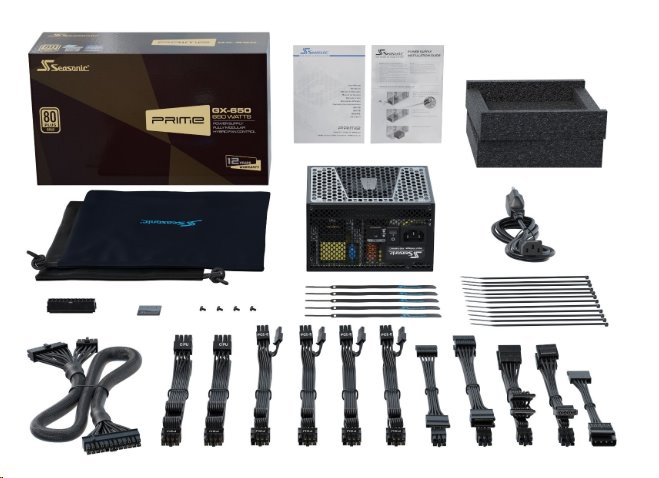

CABLES
Cable type    Connector(s) per cable    Total Length (mm)    Number(s) of cable(s) included
MB-610    MB (24/20 pins)    1    610    1
CPU-650    CPU (8/4 pins)    1    650    2
PCIe-750-2x    PCIe (8/6 pins)    2    750    0
PCIe-750-1x    PCIe (8/6 pins)    1    750    4
SATA-810-4x-90    SATA    4    810    1
SATA-800-4x-180    SATA    4    860    1
SATA-760-4x-90    SATA    4    760     0
SATA-700-2x-90    SATA    2    700    0
SATA-570-2x-180    SATA    2    570    0
SATA-470-2x-180    SATA    2    470    0
SATA-450-2x-180    SATA    2    450    1
Molex-690-3x    Molex    3    690    1
Molex-470-2x    Molex    2    470    0
Molex-to-SATA-3-3-300    Molex to SATA 3.3 Adapter    2    300    1
Molex-to-FDD-101    Molex to FDD Adapter    1    101     0
