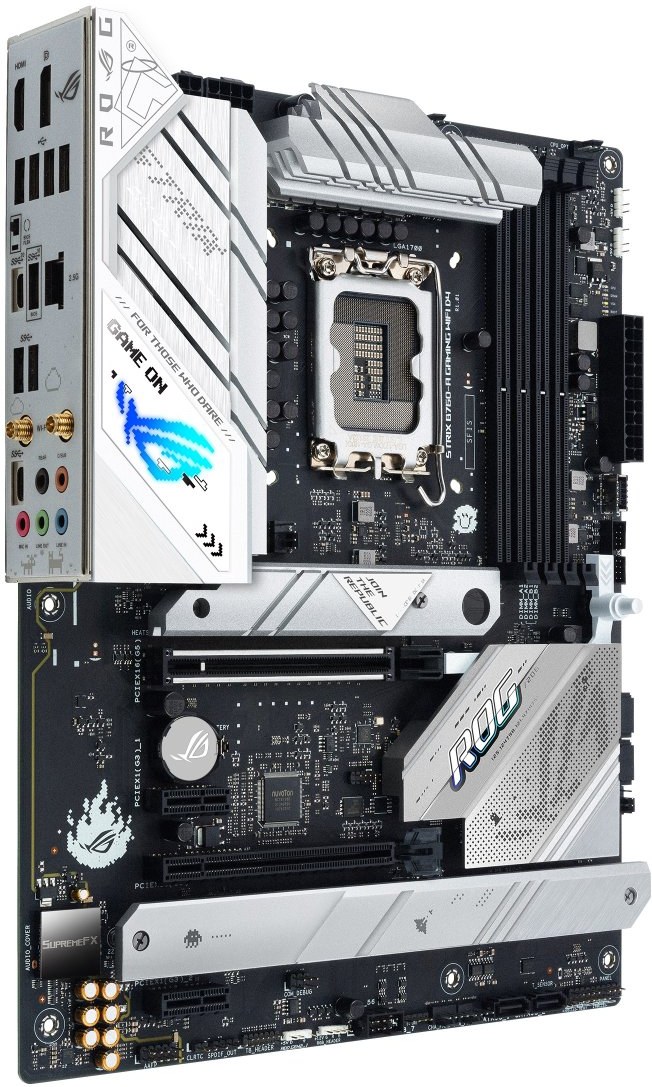

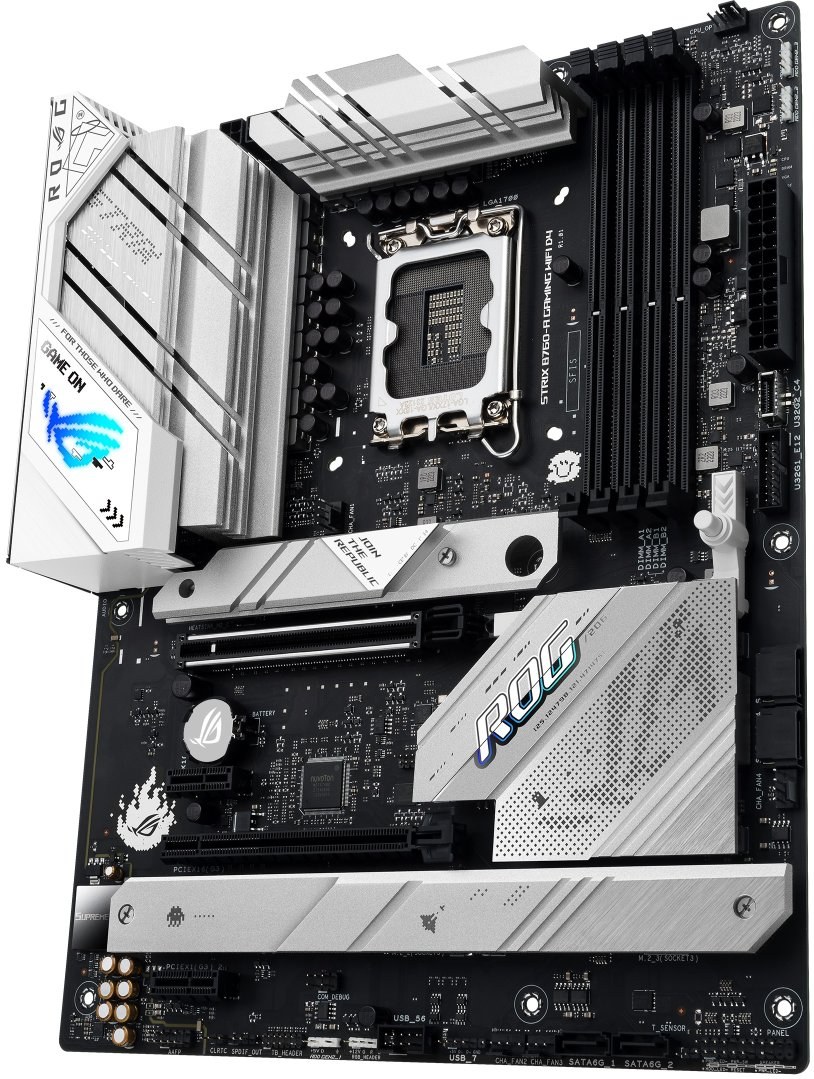

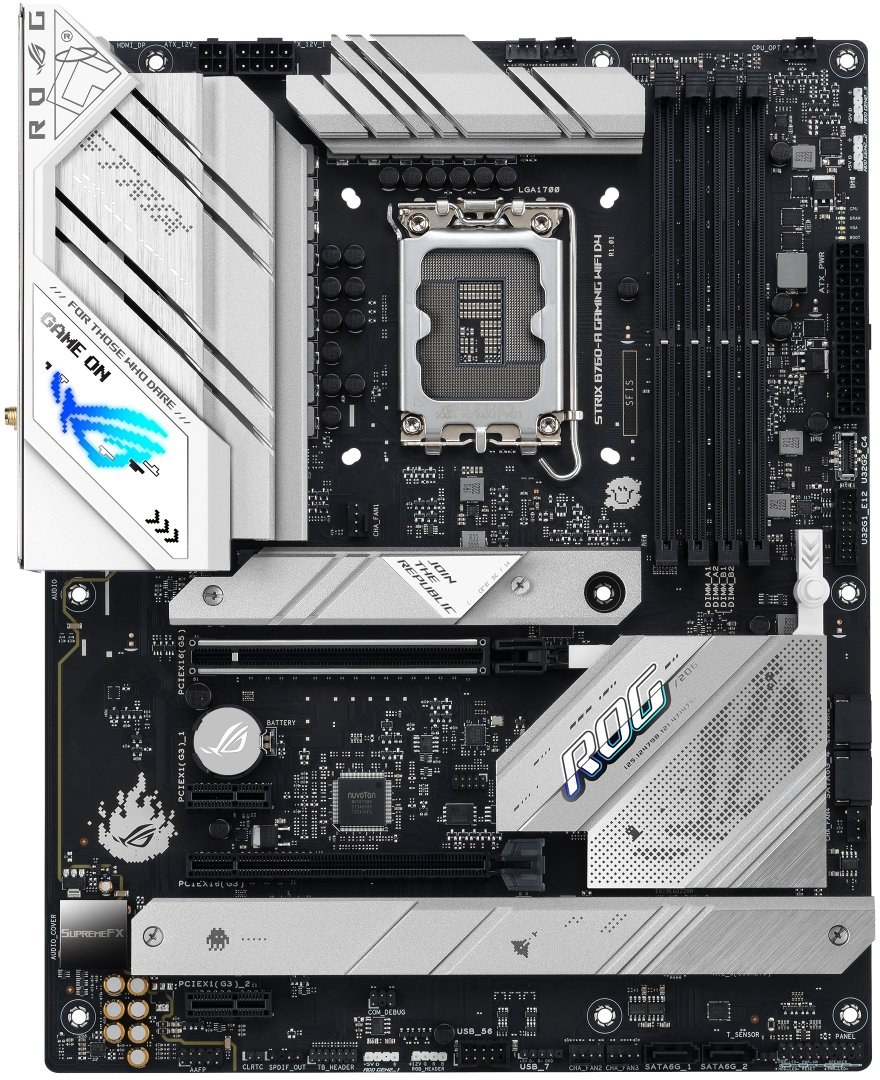

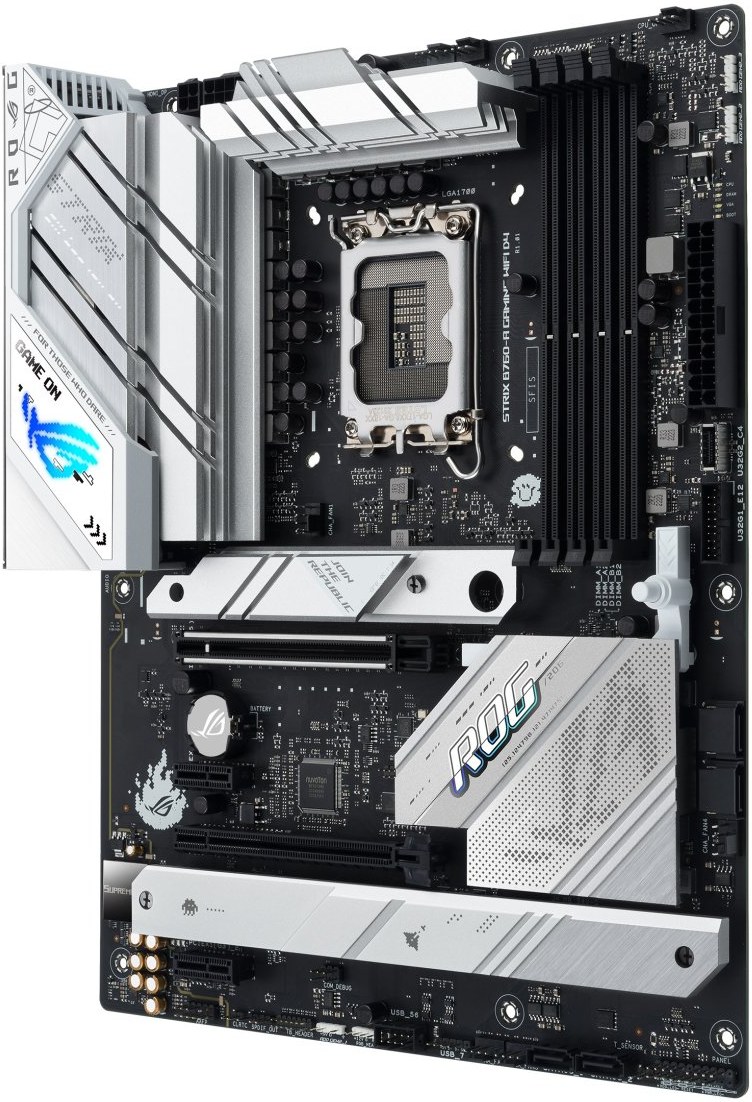

Asus ROG STRIX B760-A GAMING WIFI D4

Asus ROG STRIX B760-A GAMING WIFI D4

Technické parametre:

CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

Graphics

    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. // Please refer to AMD CPU specifications.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4
    *** Supports 4K@60Hz as specified in HDMI 2.1.
    **** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

    Intel® 13th & 12th Gen Processors
    1 x PCIe 5.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 3.0 x16 slot (supports x4 mode)*
    2 x PCIe 3.0 x1 slots*
    * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

    Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

    1 x Intel® 2.5Gb Ethernet
    ASUS LANGuard // TUF LANGuard
Wireless & Bluetooth®    "Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

USB

    Rear USB (Total 9 ports)
    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 6 ports)
    1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

Audio

  "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
    Audio Features
    - SupremeFX Shielding Technology
    - Savitech SV3H712 AMP
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Audio cover

Back Panel I/O Ports

    1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
    1 x USB 3.2 Gen 2 port (1 x Type-A)
    3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    5 x Audio jacks
    1 x BIOS FlashBack™  button

Internal I/O Connectors

    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    1 x 4-pin +12V Power connector
    Storage related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x 20-5 pin System Panel header
    1 x Thunderbolt™ (USB4®) header

Special Features

    Extreme Engine Digi+
    - 5K Black Metallic Capacitors
    ASUS Q-Design
    - M.2 Q-Latch
    - PCIe Slot Q-Release
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - CPU Socket lever protector
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers

Software Features

    ROG Exclusive Software
    - GameFirst VI
    - ROG CPU-Z
    - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
    - Sonic Radar III
    - DTS® Sound Unbound
    ASUS Exclusive Software
    Armoury Crate
    - AIDA64 Extreme (60 days free trial)
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4
    - Power Saving
    - Two-Way AI Noise Cancellation
    AI Suite 3
    - DIGI+ VRM
    - PC Cleaner
    MyAsus
    Norton 360 for Gamers
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    FlexKey
    MemTest86

BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME

Accessories

    Cables
    2 x SATA 6Gb/s cables
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    1 x M.2 Rubber Packages
    Documentation
    1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Dimension

Product (mm)_ L*W*H    305mm*244mm*50mm
Color Box (mm)_ L*W*H    355mm*275mm*70mm
 Weight
Motherboard only    1.239kg
Full package    1.698 kg
