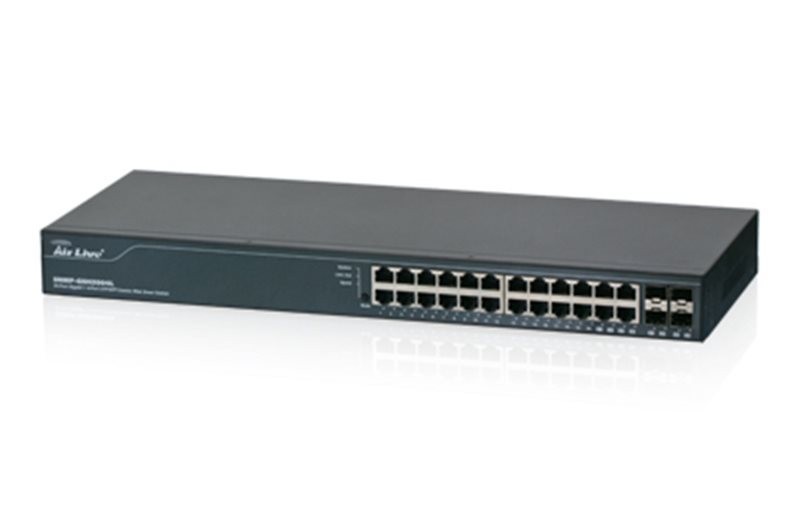

AirLive 24xGbit + 4xUTP/SFP 802.3AT PoE switch

L2 WEB Sarmt switch (24P-10/100/1000, 4*UTP/SFP, total 24P), SNMPv1,v2c WEB Smart Function: 802.1Q VLAN, IGMP Snooping, Spaning Tree, Trunking, QoS, VLAN, Broadcase Control, Password Access Protection, MAC Binding SNMP-GSH2004L: 24 Port Gigabit with 4 UTP/SFP combo Web Smart Switch PŘEHLED the SNMP-GSH2004L is a 24-port Gigabit SNMP Web smart Switch with 20 10/100/1000Base-T ports and 4 x 10/100/1000Base-T or 100M/1000MSFP combo ports. This Switch can be used to build high-performance switched workgroup networks. The switch can be managed through Ethernet port using Web-based management unit, associated with SNMP agent. In addition, the switch features comprehensive and useful functions such as VLAN, Trunk/Aggregation, QoS , RSTP, IGMP Snooping, SNMP, Loop Detection, Broadcast Strom via the intelligent software. It is suitable for both metro- LAN and office applications. QoS with four priority queues The switch supports not only Layer 2 802.1p Priority Queue control, but also supports programmable higher layer classification and prioritization to enable enhanced Quality of Service (QoS) support for real time applications based on information taken from Layer 2 to Layer 4, such as VoIP Support 802.1d Spanning Tree and 802.1w Rapid Spanning Tree For mission critical environments with multiple switches supporting STP, you can configure the switches with a redundant backup bridge path so transmission and reception of packets can be guaranteed in event of any fail-over switch on the network. Broadcast/Multicast/unknown- unicast Storm Control To limit too many broadcast/multicast//unknown- unicast flooding in the network, these storm control functions is used to restrict excess traffic. Threshold values are available to control the rate limit for each port. Packets are discarded if the count exceeds the configured upper threshold. *24 port 10/100/1000Mbps including 4 port UTP/SFP combo ports *Built-In Power Supply 802.1Q Tag-based VLAN, Port-based VLAN, IGMP Snooping *Web smart features provide easier manageability, security, QoS, and performance *Supports SNMPv1/v2c, trap for management *Supports broadcast storm filtering *Supports (IEEE802.3az EEE Energy Efficient Ethernet standard) for green Ethernet application TECHNICKÁ SPECIFIKACE Model *SNMP-GSH2004L Standards *IEEE 802.3 10BaseT *IEEE 802.3u 100BaseTX *IEEE 802.3ab 1000BASE-T *IEEE 802.3z 1000BASE-X *IEEE 802.3x Flow Control *IEEE 802.3az Energy Efficient Ethernet *IEEE 802.1q VLAN (Port Based and Tag Based) *IEEE 802.1p Class of Service, Priority Protocols *IEEE 802.1d Spanning Tree Protocol *IEEE 802.1w Rapid Spanning Tree Protocol Hardware *Number of Ports: 24 *MAC Address: 8K *Buffer Memory: Embedded 512 K Bytes frame buffer *Jumbo frames: 9KB *Transmission Method: Store and Forward Features *Trunking >Static trunk (Link Aggregation) >Up to 12 groups >Up to 24 ports per group *Spanning Tree Protocol (STP) >Standard Spanning Tree 802.1d >Rapid Spanning Tree (RSTP) 802.1w *VLAN >Support up to 16 VLANs simultaneously (out of 4096 VLAN IDs) >802.1Q tag-based VLAN >Port-based VLAN >Port Isolation >Management VLAN *IGMP v1/v2 Snooping >Supports 64 multicast groups (source-specific multicasting is also supported) *Port mirroring >Supports 64 multicast groups (source-specific multicasting is also supported) *Loop detection >Supports 64 multicast groups (source-specific multicasting is also supported) *Broadcast Storm protection >Supports 64 multicast groups (source-specific multicasting is also supported) *Quality of Service(QoS) >8 hardware queues >Scheduling >Strict priority >Queue assignment based on DSCP and class of service (802.1p/ CoS) *SNMP >SNMP version1, 2c with support for traps *Reset Button >SNMP version1, 2c with support for traps Filtering/Forwarding Rates *1000Mbps port - 1,488,000pps *100Mbps port - 148,800pps *10Mbps port - 14,880pps Transmission Media *10BaseT Cat. 3, 4, 5, 6 UTP/STP *100BaseTX Cat. 5, 6 UTP/STP *1000BaseT Cat. 5, 6 UTP/STP *1000BASE-X SX/LX SFP Led Indicators *Per Port UTP: Link/Act, Speed *Per Port SFP: Link/Act, Speed *Per Unit: Power Power Input *100-240 VAC 50~60 Hz, internal , universal Power Consumption *System=17.41W (Full loading) Dimensions *442 (W)x 44 (H) x 170.3 (D) mm Weight *2.4 Kg
