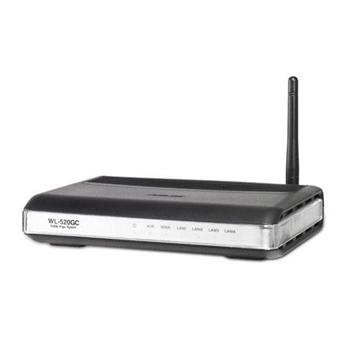

Asus WL-520gC BroadRange Wi-Fi router/GW/AP

Asus WL-520gC BroadRange Wi-Fi router/GW/AP

Network Standard IEEE 802.11b?IEEE 802.11g?IEEE 802.3?IEEE802.3x?IEEE 802.3u?IEEE 802.1x?IEEE 802.11i?IPv4?CSMA/CA?CSMA/CD?ICMP
Funkce

Wi-Fi Enhancement:

   * BroadRangeTM delivers 300% more signal coverage than standard 802.11g
   * 125 High Speed Mode(HSM) technology enables 135% faster transfer speed when compared to standard 11g product

EZSetup Button:

   * Automatically SSID and WEP or WPA configuration

Quality of Service:

   * WMM (Wi-Fi multimedia)

Provozní frekvence 2.4G ~ 2.5GHz
Provozní kanál 11 for N. America, 14 Japan, 13 Europe (ETSI)
LAN porty WAN x 1, LAN x 4 RJ45 for 10/100 BaseT
USB rozhraní No
LED Indicator Power x 1, AIR x 1, WAN x 1, LAN x 4
Authentication MAC address, 802.1x
Firewall NAT Firewall, SPI (Stateful Package Inspection) Firewall, WAN ping control, Single Port and Port Range filter, URL based filter, MAC Address filter
VPN funkce IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through
Network Protocol Support UPnP, DHCP, DNS Proxy, NTP Client, DDNS, Port Trigger, Virtual Server, Virtual DMZ, VPN Pass-Through, WDS
Nástroje

   * Device Discovery: Discovers WL520GU in network and help user to invoke Web Configuration page
   * Firmware Restoration: Restores firmware while system enters rescue mode
   * EZSetup: Helps user setup wireless and Internet connection easily

All PC utilities support Microsoft XP, 2000, Vista
Napájecí adaptér WL-520GC: DC Input: +9V with max 1A current
Note: Use only the adapter included in the package. Using other adapters may damage the device.
Teplota Operating: 0°~40°C
Storage: -30°~50°C
Vlhkost Operating: 50~90%
Storage: 20~90%
Rozměry 164 x 116.5 x 31 (L x W x H) mm
Weight 262g
