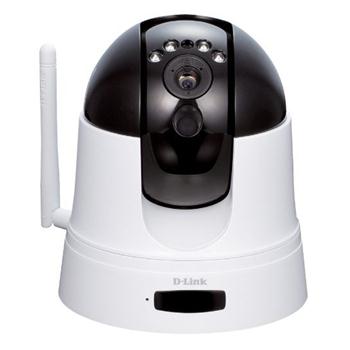

D-Link DCS-5222L/E Securicam Wireless N HD Day & Night PTZ Camera, H.264, MJPEG, IR LED,ICR, Micro SD Card w/mydlink

D-Link DCS-5222L/E Securicam Wireless N HD Day & Night PTZ Camera

Cloudová kamera s funkcemi otáčení/naklánění/zoom (PTZ)

Cloudová kamera DCS-5222L s funkcemi otáčení/naklánění/zoom (PTZ) je univerzální monitorovací řešení pro váš dům nebo malou kancelář. Na rozdíl od běžných webkamer přenáší i nahrává obraz v HD rozlišení spolu se zvukem dokonce i při úplné tmě díky vestavěnému infračervenému LED osvětlení. Pomocí služby mydlink™ Cloud Services můžete kameru používat a ovládat na dálku prostřednictvím aplikací mydlink™, které jsou k dispozicí pro iPhone®, iPad® a zařízení se systémem Android™.

Sensor and lens
•1/4” Megapixel Progressive CMOS sensor
•Fixed length 4.57 mm, F1.9 lens



Night vision
•4x IR LEDs
•5 m. IR illumination distance
•Built-in Infrared-Cut Removable (ICR) filter



Video features
•Image size, quality, frame rate, and bit rate
•Shutter speed, brightness, saturation, contrast, mirror, flip
•Time stamp and text overlays
•Motion detection windows
•Three configurable privacy mask zones



Video Compression
•JPEG for still images
•H.264/MPEG4/MJPEG multi-streaming
•H.264/MPEG4 multicast streaming



Image Resolution
•HD 720p resolution
•Max. 1280x720 @ 30 fps



Pan/Tilt/Zoom1
•Pan Range: -170° to 170°
•Tilt Range: -25° to 90°
•Digital Zoom: 4x
•Pre-set setting: 10 points



Audio Features
•Built-in microphone
•Speaker output
•ADPCM/PCM compression



Network Protocol Support
•IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP Server, PPPoE, RTP, RTSP, RTCP, 3GPP



Remote Access and Management
•Configuration accessible via web browser
•mydlink™ Cloud Services



Security
•Administrator and user group protected
•Password authentication
•HTTP and RTSP digest encryption



Recording options
•Continuously
•Weekly schedule
•On motion detection



Network Interfaces
•IEEE 802.11n
•Fast Ethernet port



Input/Output
•Passive Infra-Red (PIR) sensor
•DI x1, DO x1
•microSD card slot



System Requirements
•Operating System: Microsoft Windows 7/Vista/XP SP3
•Browser: Internet Explorer 6 or higher, Firefox 3.5, Safari 4.0



Supported Mobile Devices2
•mydlink™ app requires a mobile device running iOS or Android™



Power
•12 V/1.25 A, 50/60 Hz
•10.5 Watts (maximum)



Dimensions (L x W x H)
•114 x 114 x 125 mm



Weight
•540 grams



Temperature
•Operation: 0 to 40 oC
•Storage: -20 to 70 oC



Humidity
•20% to 80% non-condensing



Certifications
•FCC Class B
•CE
•CE LV D
•C-Tick



1 4x digital zoom enlarges an image by magnifying the pixels in a selected portion of the image by 4 times.

2 The mobile device must have a mobile or WiFi data connection. Non-iOS/Android devices must be equipped with 3G video playback software such as RealPlayer™ or PacketVideo™.
