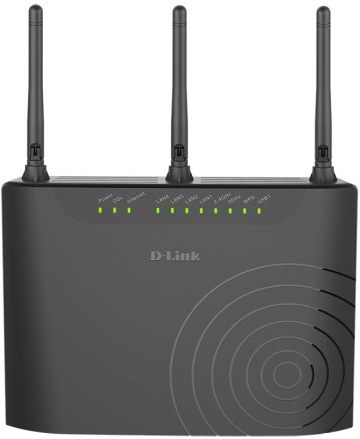

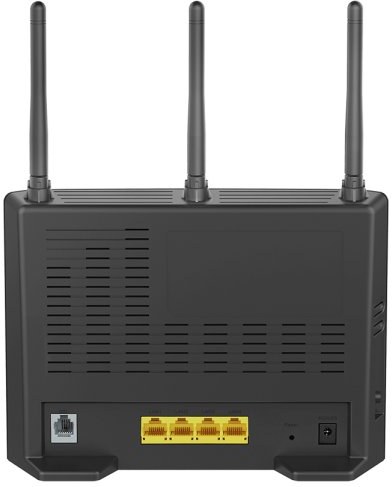

D-Link DSL-3682/E, VDSL, Modem, Router

DSL-3782/E nepodporuje annex B fall back - v ČR funguje pouze jako VDSL modem Popis High-Speed Connectivity *The latest 802.11ac wireless specification delivers blazing fast wireless connectivity with increased range and reliability *RJ11 VDSL/ADSL port for speedy Internet access *Four 10/100 Fast Ethernet LAN ports give you high-speed wired connectivity Flexible Bandwidth *Concurrent dual-band wireless for combined connections of up to 750 Mbps *QoS engine to prioritise important traffic and deliver uninterrupted bandwidth Setup and Management *Setup wizard to guide you through the configuration process *Firewall and access control options to prevent attacks and restrict access to your network Technická specifikace Device Interfaces · 802.11 ac/n/g/b Wireless LAN · Four 10/100 Fast Ethernet LAN ports · One RJ-11 Broadband port · One USB 2.0 port ADSL Compliance · ADSL Standards o Multi-mode o Full-rate ANSI T1.413 Issue 2 o ITU-T G.992.1 (G.dmt) Annex A/C/I o ITU-T G.992.2 (G.lite) Annex A/C o ITU-T G.994.1 (G.hs) · ADSL 2 Standards o ITU-T G.992.3 (G.dmt.bis) Annex A/J/L/M · ADSL 2+ Standards o ITU-T G.992.5 Annex A/L/M VDSL Compliance · ITU-T G.993.1 · ITU-T G.993.2 · 8a, 8b, 8c, 8d, 12a, 12b, 17a ATM/PPP Support · Multiprotocol over AAL5 (RFC 1483/2684) · Bridged and routed Ethernet encapsulation · LLC encapsulation · VC-based multiplexing · ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) · ATM Cell Format ITU-T Rec. I.361 · ATM Adaptation Layer Type 5 (AAL5) · PPPoA (RFC2364) · PPPoE (RFC2516) · PPP Link Control Protocol (RFC 1661) · Internet Protocol Control Protocol (RFC 1332) · PPP Authentication Protocol (RFC 1334) · PPP Challenge Handshake Authentication Protocol (RFC 1994) · Microsoft PPP CHAP extensions (RFC 2433) WLAN Specifications · Wi-Fi Protected Setup (WPS) · Multiple SSIDs · Automatic rate adapting · Auto channel selection · WMM support · 64-bit & 128-bit WEP · WPA-PSK & WPA2-PSK · MAC address filtering Antenna Type · Three fixed external antennas Data Signal Rate · 2.4 GHz 802.11 n/g/b o Up to 300 Mbps* · 5 GHz 802.11 ac/a o Up to 433 Mbps* Network Services · IPv4 · DHCP server/client/relay · DNS relay · Dynamic DNS (DDNS) · Routing Information Protocol (RIP) v1/v2 · NAT AGLs o PPTP o L2TP o FTP o RTSP (RealTime Streaming Protocol) o SIP v1/v2 o IPsec · Internet Control Message Protocol (ICMP) · Virtual server (Port forwarding) · Simple Network Time Protocol (SNTP) · 802.1d MAC Bridge (up to 256*8 MAC addresses) · QoS o IPP/ToS o DSCP QoS in 4-priority queues o Application QoS in 4-priority queues o Strict priority o VLAN QoS in 4-priority queues o QoS remarking based on IPP/ToS, DSCP and 802.1p o TOS transparency through NAT o Mapping to queue according to DSCP bits and physical port o 802.1Q · IGMP proxy v1/v2 · IGMP snooping v1/v2/v3 Standards · IEEE 802.11ac · IEEE 802.11n · IEEE 802.11g · IEEE 802.11b · IEEE 802.3 · IEEE 802.3u Minimum System Requirements · Windows 8/7/Vista/XP SP3 or Mac OS X 10.4 or higher · Microsoft Internet Explorer 6 or higher, Firefox 1.0 or higher, Safari 1.2 or higher, or other Java-enabled browser · Ethernet network interface · Subscription with an Internet Service Provider (ISP) Functionality Universal Plug and Play Support · UPnP based auto-configuration · UPnP based port forwarding · UPnP IGD 1.0 Device Management · Web configuration · Telnet management · Webpage/TFTP firmware upgrade · Diagnostic tools for ADSL and IP Ping Advanced Features · Dual-active firewall o Network Address Translation (NAT) o Stateful Packet Inspection (SPI) · UPnP support · 802.1p QoS Physical Dimensions · 198 x 146 x 54 mm Weight · 302 grams Power · Input: 100 ~ 240 V AC · Output: 12 V DC, 1A Temperature · Operating: 0 to 40 °C · Storage: -20 to 65 °C Humidity · 5 % to 95 % non-condensing Certifications · CE · Wi-Fi · Wi-Fi Protected Setup (WPS)
