    Hikvision DS-2CD2141G1-IDW1 (2.8 mm)

    Hikvision DS-2CD2141G1-IDW1 (2.8 mm)
    Hikvision DS-2CD2141G1-IDW1 (2.8 mm) Hikvision DS-2CD2141G1-IDW1 (2.8 mm)

    Vypredané

    bezdrôtová kamera s infra videním
    IP kameraZobraziť viac
    Produkt je vyradený !

    V našej ponuke nájdete podobné modely. S výberom pomôžeme.

    Zobraziť podobné
    Kód tovaru

    333060

    PN kód

    DS-2CD2141G1-IDW1

    Výrobca
    HIKVISION
    Záruka
    36 mesiacov

    Alternatívy pre Hikvision DS-2CD2141G1-IDW1 (2.8 mm)

    Zobraziť kategóriu Kamery s infra nočným videním

    Popis produktu

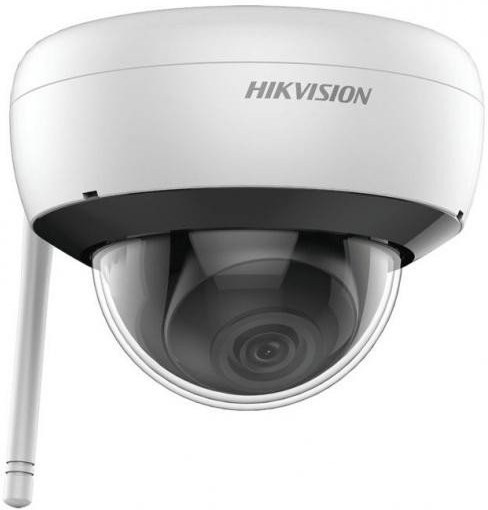

    Hikvision DS-2CD2141G1-IDW1 (2.8 mm)

    DS-2CD2141G1-IDW1

    4 MP IR Fixed Network Dome Camera

    Vlastnosti:

    • 1/3" Progressive Scan CMOS
    • 2560 × 1440 @ 20 fps
    • 2.8/4 mm fixed lens
    • Wi-Fi Connection
    • H.265+, H.265, H.264+, H.264
    • Color: 0.01 Lux @ (F1.2; AGC ON), 0.028 Lux @ (F2.0; AGC ON)
    • 3D Digital Noise Reduction
    • Audio I/O: 1 built-in mic, mono sound
    • IP 66

    Technické parametre

    Camera
    Image Sensor: 1/3" Progressive Scan CMOS
    Signal System: PAL/NTSC
    Min. Illumination: Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
    Shutter time: 1/3 s to 1/100,000 s
    Slow shutter: Support
    Lens: 2.8 mm, horizontal FOV: 100°, vertical FOV: 55°, diagonal FOV: 117°
    4 mm, horizontal field of view: 75°, vertical FOV: 41°, diagonal FOV: 88°
    Lens Mount: M12
    Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°
    Day& Night: IR cut filter with auto switch
    Wide Dynamic Range: Digital WDR
    Digital noise reduction: 3D DNR

    Compression Standard
    Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
    Video bit rate: 32Kbps~8Mbps
    Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
    Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

    Max. Image Resolution: 2560 × 1440
    Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Frame Rate: 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
    Image Enhancement: BLC/3D DNR
    Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
    ROI: 1 fixed region for main stream and sub-stream
    Day/Night Switch: Auto/Scheduled/Day/Night

    Network
    Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
    Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
    Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour
    General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
    mask, Watermark, IP address filtering
    System Compatibility: ONVIF (Profile S, Profile G),ISAPI

    Interface
    Communication Interface: 1 RJ45 10M / 100M Ethernet interface
    On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
    Reset Button: Yes

    Wi-Fi Specification (-W)
    Wireless Standards: IEEE802.11b, 802.11g, 802.11n
    Frequency Range: 2.412 GHz to 2.4835 GHz
    Channel Bandwidth: 20/40MHz Support
    Modulation Mode: 802.11b: CCK, QPSK, BPSK
    802.11g/n: OFDM
    Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
    Transmission Rate: 11b: 11Mbps
    11g: 54Mbps
    11n: up to 150Mbps
    Wireless Range: 50m(depend on environment)

    General
    Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
    Humidity 95% or less (non-condensing)
    Power Supply: 12 V DC ± 25%
    Power Consumption: 12 VDC, 0.5 A, Max: 6W
    Weather Proof: IP66
    IR Range: Up to 30m

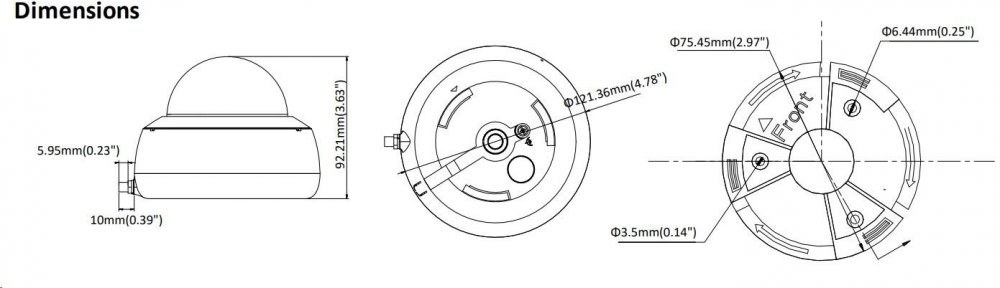

    Dimensions: Camera: ? 121.4 mm × 92.2 mm (? 4.8" × 3.6")
    With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
    Weight: Camera: 467g (1 lb.)
    With package: 725g (1.6 lb.)


    Quick Start Guide na stránkach výrobcu
    Otvoriť prepojenie
    Datasheet DS-2CD2141G1-IDW1 na stránkach výrobcu
    Otvoriť prepojenie
    User Manual na stránkach výrobcu
    Otvoriť prepojenie

    Stránky o produkte Hikvision DS-2CD2141G1-IDW1 (2.8 mm):

    www.hikvision.com/europe/products/IP-Products/Network-Cameras/Wi-Fi-Series/DS-2CD2141G1-ID

    Parametre

    Sieťové produkty

    Výrobca SIE

    		 Hikvision

    Prevedenie kamery

    		 dome

    Rozlíšenie kamery v MPx

    		 4MPx (2560x1440)

    Horizontálny uhol záberu

    		 do 120°

    Infra

    		 10 - 30 m

    Kompresný štandard

    		 H.265+
