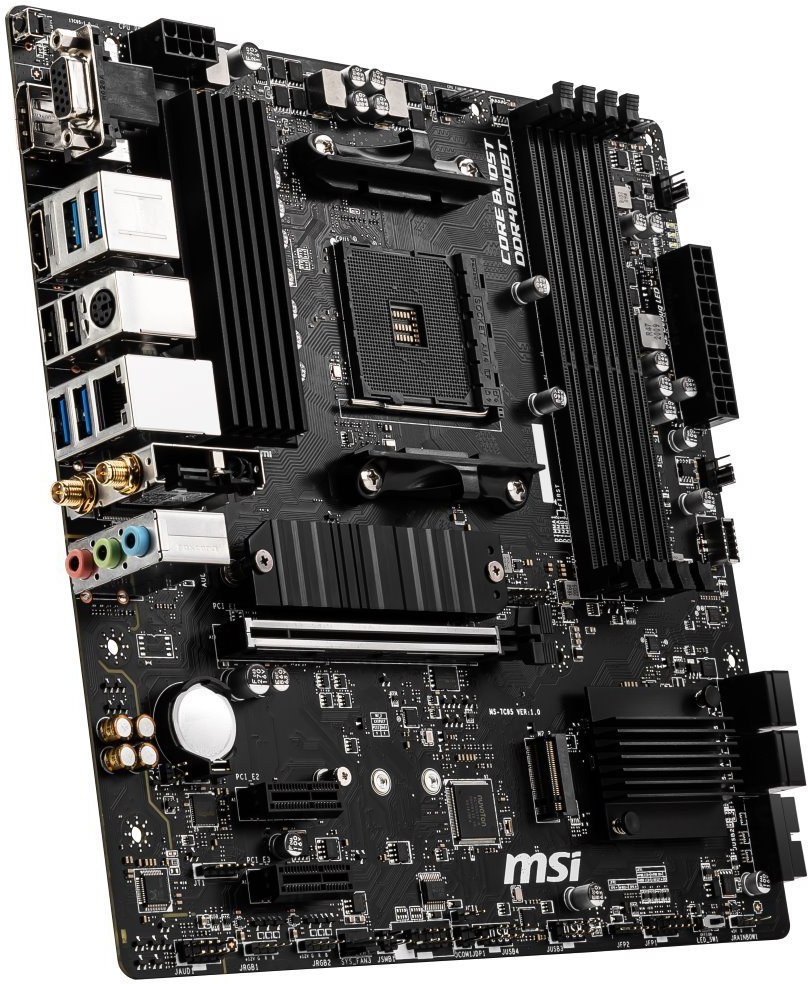

MSI B550M PRO-VDH WIFI

Doska je vybavená grafickými výstupmi na použitie s procesormi s integrovaným grafickým jadrom. Základná doska grafickú kartu neobsahuje a bez použitia zodpovedajúceho procesora, budú tieto výstupy nefunkčné.

Chipset: AMD B550

Rozmerový formát: Formát Micro-ATX (244 mm x 244 mm)
Podpora pre procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Pätica procesoru: AM4

Pozície na paměti: 4x DDR4
Podpora pre pamäte:
*Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
*Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Max.veľkosť operačnej pamäte: 128 GB
Podpora pre pamäte typu: DDR4
*Dual channel memory architecture
*Supports non-ECC UDIMM memory
*Supports ECC UDIMM memory
*Supports un-buffered memory

Grafická karta: na základe procesoru
*1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
*1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
*1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

Zvuková karta:
*Realtek® ALC892 Codec

Sieťová karta:
*1x Realtek® 8111HN Gigabit LAN controller
*Intel® Wireless-AC 3168
*Bluetooth 4.2


RAID:
*Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
*Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Rozširujúce sloty:
*1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
*2x PCIe 3.0 x1 slots

SATA:
*4x SATA 6Gb/s ports

M.2:
*2x M.2 slots (Key M)

USB:
*zadné USB porty ( celkom 6 )
*2x USB 2.0 ports
*4x USB 3.2 Gen 1 5Gbps Type-A ports
*predné USB porty ( celkom 7 )
*1x USB 3.2 Gen 1 5Gbps Type-C port
*2x USB 3.2 Gen 1 5Gbps ports
*4x USB 2.0 ports

Interné porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*4x SATA 6Gb/s connectors
*2x M.2 slots (M-Key)
*1x USB 3.2 Gen 1 5Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*3x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Serial port connector
*1x Chassis Intrusion connector
*2x 4-pin RGB LED connectors
*2x 3-pin RAINBOW LED connectors
*1x TPM module connector
*1x Clear CMOS jumper

Externé porty:
*VGA
*PS/2 Keyboard / Mouse
*1x LAN
*Flash BIOS Button
*DisplayPort
*HDMI
*2x USB 2.0
*4x USB 3.2 Gen 1 5Gbps Type-A
*Wi-Fi Antenna connectors
*3x Audio jacks

Stránka výrobcu: https://www.msi.com/Motherboard/B550M-PRO-VDH-WIFI
