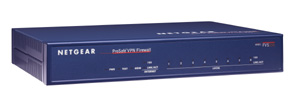

Netgear firewall FVS338GE, VPN FW 50 W/8 port

Netgear firewall FVS338GE

NETGEAR - VPN FW 50 W/8 PORT 10/100 SWITCH

PROSAFE™ VPN FIREWALL 50 W/8 PORT 10/100 SWITCH AND DIAL BACK-UP
FVS338

Hardware Specifications

   * Processor Speed: 266 MHz
   * Memory: 16Mb Flash, 32 Mb DRAM
   * Power adapter: 12VDC, 1.2A -plug is localized to country of sale
   * Dimensions: 25.4 x 17.8 x 3.96 cm (10 x 7 x 1.56 in.) Weight: 1.7 kg (3.7 lb.)

Physical Interfaces

   * LAN ports: Eight (8) 10/100 Mbps auto-sensing, Auto Uplink™ RJ-45 ports
   * WAN ports:

o 10/100 Mbps Ethernet RJ-45 port to connect to any broadband modem, such as DSL or cable
o RS-232 serial port with DB-9 connector for an external analog modem

Security Features

   * SPI Firewall: Stateful Packet Inspection (SPI) to prevent notorious Denial of Service (DoS) attacks, Intrusion Detection System (IDS) including logging, reporting and e-mail alerts, address, service and protocol, Web URL keyword filtering, prevent replay attack (reassembly attack), port/service blocking. Advanced features include block Java/URL/ActiveX based on extension, FTP/SMTP/RPC program filtering
   * VPN Functionality: Fifty (50) dedicated VPN tunnels, Manual key and Internet Key Exchange Security Association (IKE SA) assignment with pre-shared key and RSA/DSA signatures, key life and IKE lifetime time settings, perfect forward secrecy (Diffie-Hellman groups 1 and 2 and Oakley support), operating modes (Main, Aggressive, Quick), fully qualified domain name (FQDN) support for dynamic IP address VPN connections.
   * IPSec Support: IPSec-based 56-bit (DES), 168-bit (3DES), or 256-bit (AES) encryption algorithm, MD5 or SHA-1 hashing algorithm, AH/AH-ESP support, PKI features with X.509 v.3 certificate support, remote access VPN (client-to-site), site-to-site VPN, IPSec NAT traversal (VPN pass-through)
   * Mode of Operation: One-to-one/many-to-one Multi-Network Address Translation (NAT), classical routing, unrestricted users per port
   * IP Address Assignment: Static IP address assignment, internal DHCP server on LAN, DHCP client on WAN, PPPoE client support

Performance Features

   * Throughput: Up to 90 Mbps WAN-to-LAN, up to 60 Mbps for 3DES throughput

Management Features

   * Administration Interface: SNMP (v2c) support, Telnet, web graphic user interface, Secure Sockets Layer (SSL) remote management, user name and password protected; secure remote management support authenticated through IP address or IP address range and password; configuration changes/upgrades through web GUI.
   * Configuration and Upgrades: Upload and down load configuration settings, firmware upgradeable flash memory
   * Logging: SYSLOG, e-mail alerts

Functions

   * VPN Wizard to simplify configuration of the VPN, Smart Wizard to automatically detect ISP Address type (static, dynamic, PPPoE), Port Range Forwarding, Port Triggering, Exposed Host (DMZ), Enable/Disable WAN Ping, DNS Proxy, MAC Address cloning/spoofing, Network Time Protocol NTP support, Keyword Content Filtering, email Alerts, DHCP Server (Info and display table), PPPoE login client support, WAN DHCP Client, Diagnostic tools (ping, trace route, other), Port/service, Auto-Uplink on switch ports and Quality of Service (QoS)

Protocol Support

   * Network: IP routing, TCP/IP, UDP, ICMP, PPPoE
   * IP Addressing: DHCP (client and server)
   * Routing: RIP v1, RIPv2 (Static Routing, Dynamic Routing)
   * VPN/Security: IPSec (ESP, AH), MD5, SHA-1, DES, 3DES, IKE, PKI, AES

User support

   * LAN: Up to 253 users

Maintenance

   * Save/Restore Configuration, Restore Defaults, Upgrades via Web Browser, Display Statistics, Logging, SYSLOG support.

Package Contents
––ProSafe VPN Firewall (FVS338)
––Ethernet cable
––Installation guide
––Resource CD with single user ProSafe VPN Client
––Software license
––Warranty/support information card
