QNAP TS-877-1700-16G, 6-Bay TurboNAS, SATA 6G, AMD Ryzen 7 1700 8-core

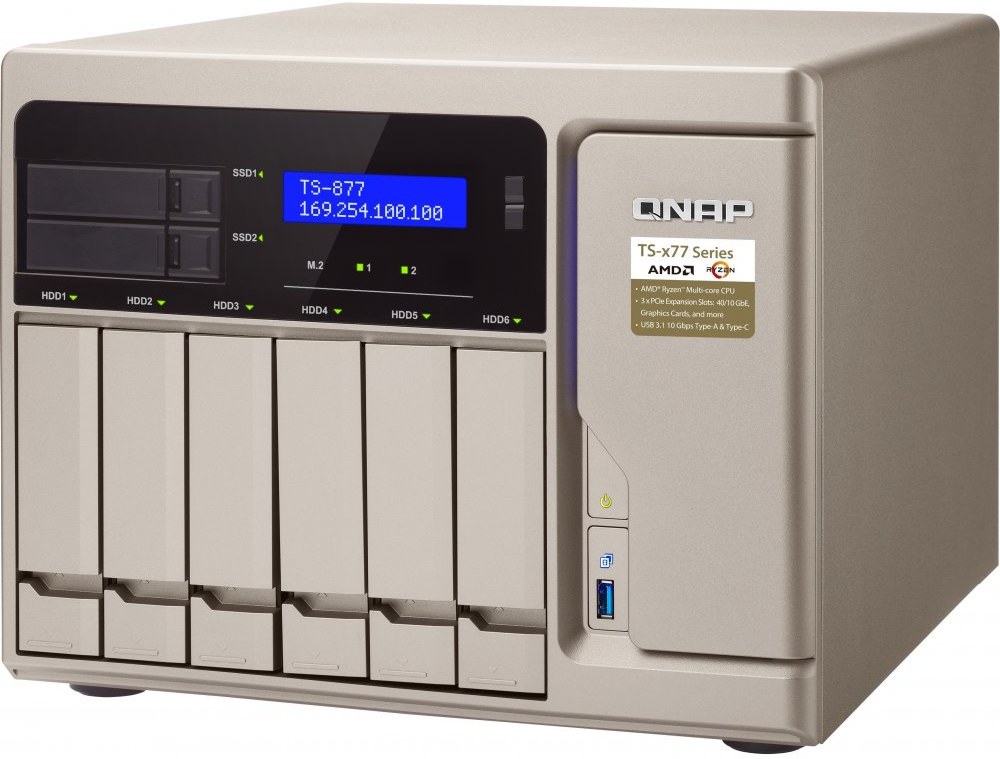

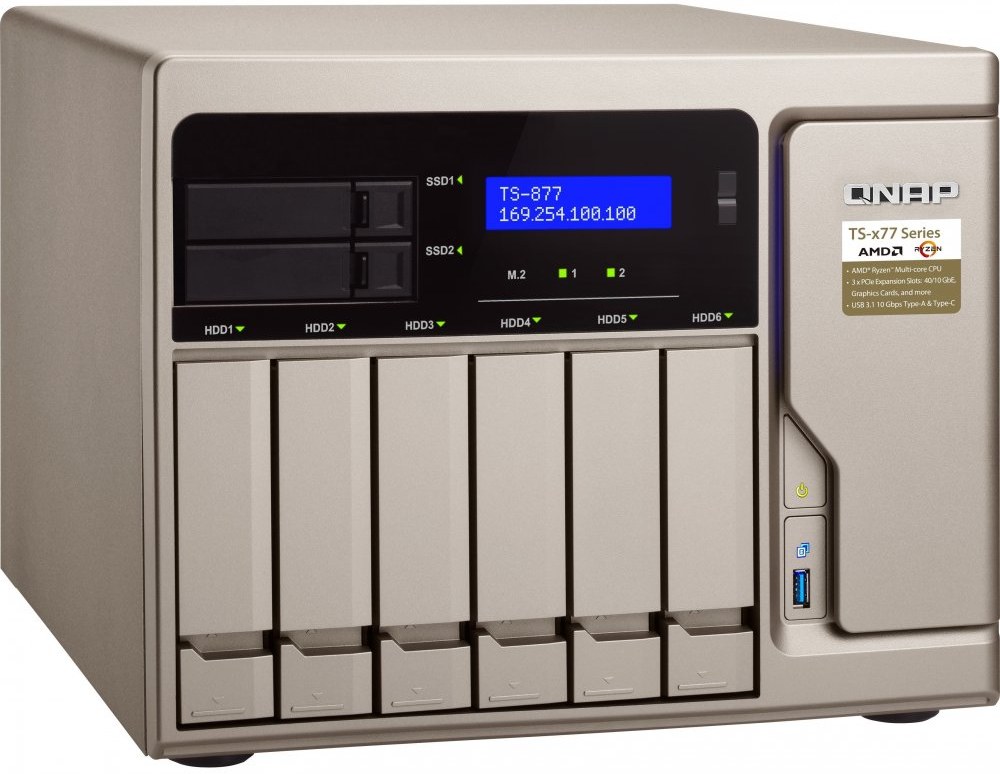

QNAP TS-877-1700-16G

Popis produktu

The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences
TS-877-1700-16G
CPU Processor: AMD Ryzen™ 7 1700 8-core/16-thread 3.0 GHz processor, Turbo Core 3.7 GHz
Architecture: 64-bit
Graphics: Optional (with PCIe expansion card)
Encryption Engine: AES-NI
System Memory 16 GB DDR4 (2 x 8 GB)
Maximum Memory 64 GB (4 x 16 GB)
Memory Slot 4 x UDIMM DDR4
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory 5GB (DOM for dual OS)
Drive Bay 6 x 3.5-inch SATA 6 Gbps bays
2 x 2.5-inch SATA 6 Gbps bays, max 9.5mm drive height
Drive Compatibility 3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

2.5-inch bays:
• 2.5-inch solid state drives
M.2 SSD Slot 2 x M.2 2240/2260/2280/22110 SATA 6Gb/s SSDs

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support • 3.5-inch drive bays 1 to 6
• 2.5-inch drive bays 1 to 2
• M.2 slots 1 to 2
• Optional: SSD using PCIe expansion slot
Hot-swappable Yes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
10 Gigabit Ethernet Port Optional: With PCIe expansion card
Gigabit Ethernet Port 4 x RJ45
PCIe Slot 1 x PCIe 3.0 x8
1 x PCIe 3.0 x4
1 x PCIe 2.0 x4
USB Port 2 x USB 3.1 10 Gbps
• Back: 1 x USB 3.1 10 Gbps Type-C
• Back: 1 x USB 3.1 10 Gbps Type-A

6 x USB 3.0
• Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button)
• Back: 5 x USB 3.0 Type-A
HDMI Output Optional: With PCIe expansion card
Audio • 2 x 3.5 mm dynamic microphone jacks
• 1 x 3.5 mm line-out jack
• 2 x speakers
Note: You cannot use the speakers and the line-out jack simultaneously.
IR sensor Yes
Note: Requires an optional graphics card and RM-IR004 remote control
Display Panel Monochrome backlit LCD display with Enter and Select buttons
USB One Touch Copy Front: USB 3.0 Type-A
Form Factor Tower
Dimensions (H x W x D) 231.9 x 292.8 x 319.8 mm
9.13 x 11.53 x 12.59 inch
Net Weight 8.86 kg (19.53 lbs)
Shipping: 10.69 kg (23.57 lbs)
Power Supply Unit 450W, 100-240V AC, 50/60Hz
Fan System: 2 x 80 mm
CPU: 2 x 90 mm
Operating Temperature & Relative Humidity 0 ~ 40°C ( 32°F ~ 104°F ), 5 ~ 95% RH non-condensing, wet bulb: 27°C (80.6°F)
Security Slot Kensington security slot
