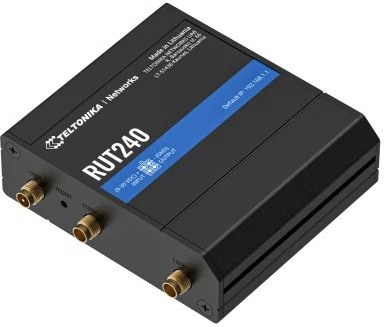

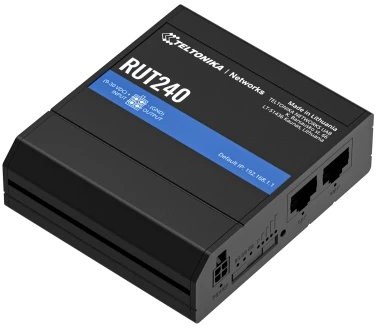

Teltonika RUT240 Industrial 4G/LTE WiFi Router (M)

Teltonika RUT240 Industrial 4G/LTE WiFi Router (M)

Technické parametre

MOBILE
Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
3GPP Release: Release 10/11 depending on the hardware version
Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list: Operator black/white list
Multiple PDN: Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN

WIRELESS
Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wi-Fi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID: SSID stealth mode and access control based on MAC address
Wi-Fi users: Up to 50 simultaneous connections
Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd
Wireless MAC filter: Whitelist, blacklist

ETHERNET
WAN: 1 x WAN port  10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

SYSTEM CHARACTERISTICS
CPU: Atheros Hornet, MIPS 24Kc, 400 MHz
RAM: 64 MB, DDR2
FLASH storage: 16 MB, SPI Flash

INPUT / OUTPUT
Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events: Email, RMS, SMS
I/O juggler: Allows to set certain I/O conditions to initiate event

PHYSICAL INTERFACES

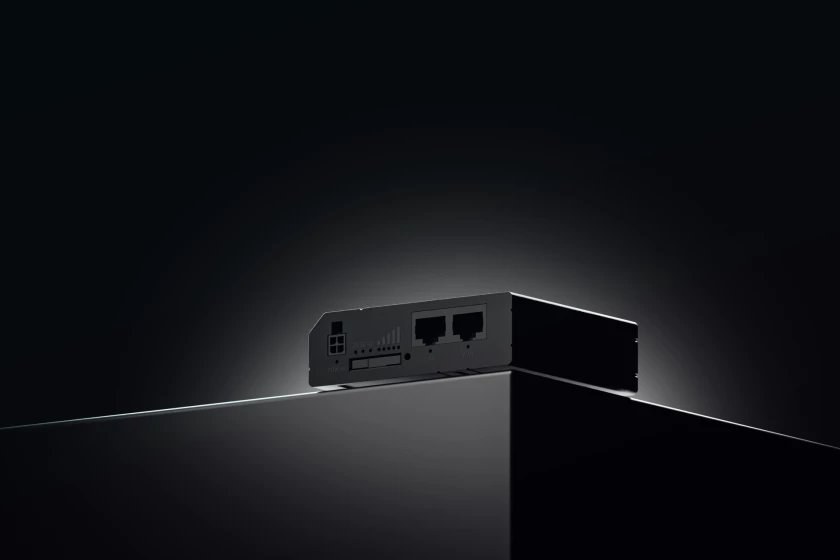

Ethernet: 2 x RJ45 ports, 10/100 Mbps
I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power: 1 x 4-pin power connector

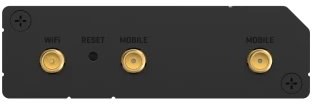

Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
Reset: Reboot/User default reset/Factory reset button
