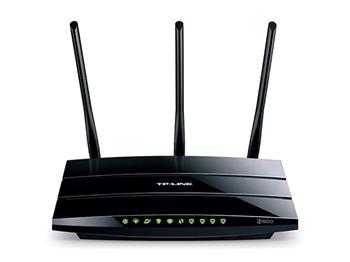

TP-Link TD-W9980 N600 Wireless Dual Band Gigabit VDSL2/ADSL2+ Modem Router

TP-Link TD-W9980 N600 Wireless Dual Band Gigabit VDSL2/ADSL2+ Modem Router

ANNEX A

HARDWARE FEATURES
Interface 4 10/100/1000Mbps RJ45 Ports
1 RJ11 Port
2 USB 2.0 Ports
Button 1 Power On/Off Button
1 WPS Button
1 Wi-Fi On/Off Switch
1 RESET Button
Dimensions (W X D X H) 9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm)
External Power Supply 12VDC/1.5A
IEEE Standards IEEE 802.3, 802.3u, 802.3ab
VDSL2 Standards ITU-T G.993.2
ADSL Standards Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.994.1 (G.hs)
ITU-T G.995.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards ITU-T G.992.5
Antenna Type Three 5GHz 5dBi detachable antennas (RP-SMA)
Two 2.4GHz 3.5dBi internal antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a,802.11b, 802.11g, 802.11n
Frequency 2.4GHz and 5GHz
Transmit Power <20dBm(EIRP)
Wireless Security Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control (IP QoS)
Security NAT Firewall,
SPI Firewall,
MAC / IP / URL Filtering
IPv6 IPv6 and IPv4 dual stack
Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP V1/V2C,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
Port Forwarding Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
PVC - Up to 8 PVCs
Advanced Features Parent Control
Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Grouping
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS
USB Sharing Storage Sharing
FTP Server
Media Server
Print Server
IGMP IGMP snooping V1/V2/V3
IGMP Multicast
IPSec VPN 10 IPSec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
OTHERS
Certification CE, FCC, RoHS
Package Contents TD-W9980
External Splitter
RJ-11 Telephone Line
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
System Requirements Windows 8/7/Vista/XP or Mac OS or Linux-based operating system
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
