Ubiquiti UniFi Switch Pro Max 48 PoE, (rozbalené)

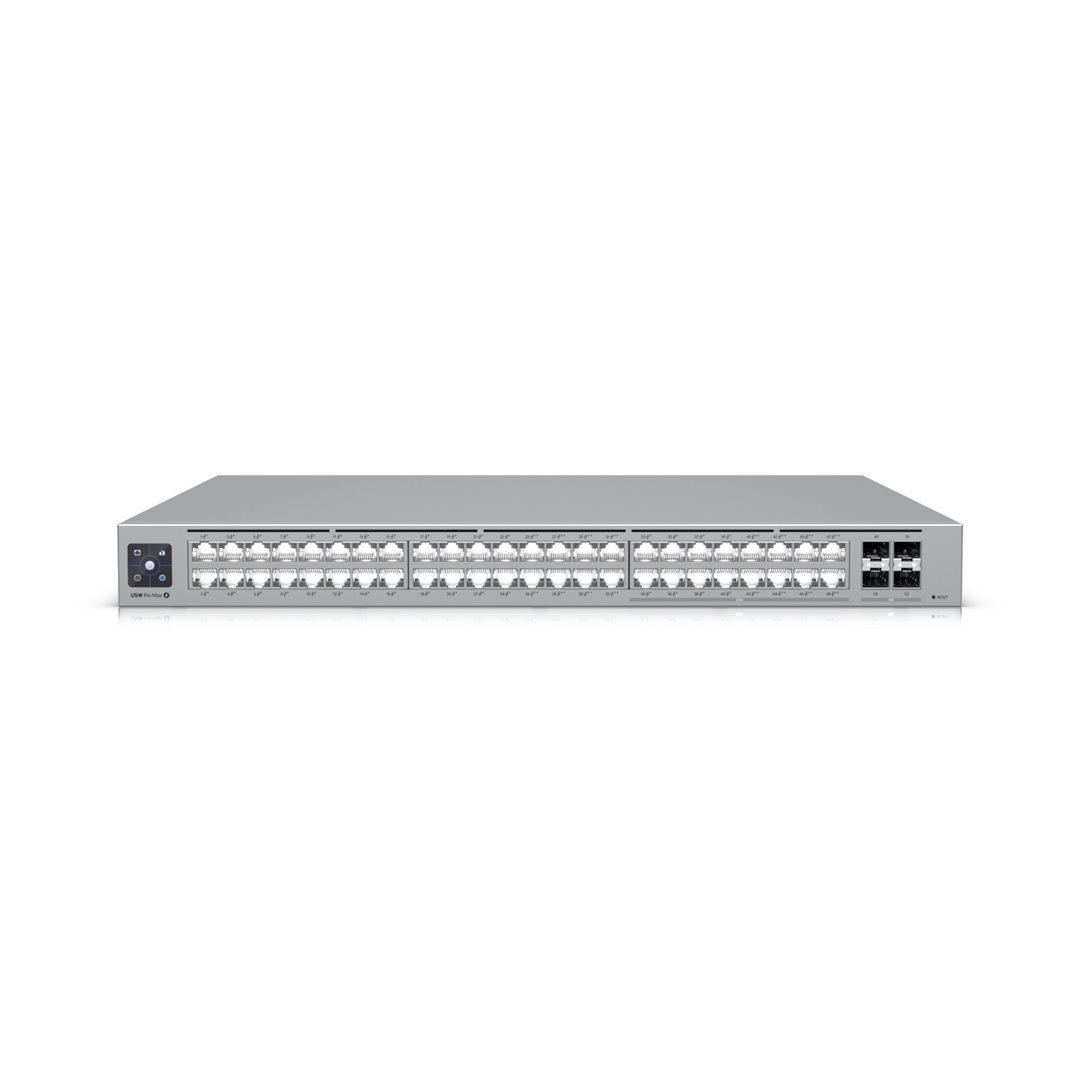

Ubiquiti UniFi Switch Pro Max 48 PoE

48-portový Layer 3 Etherlighting™ switch s výstupmi 2,5GbE a PoE++

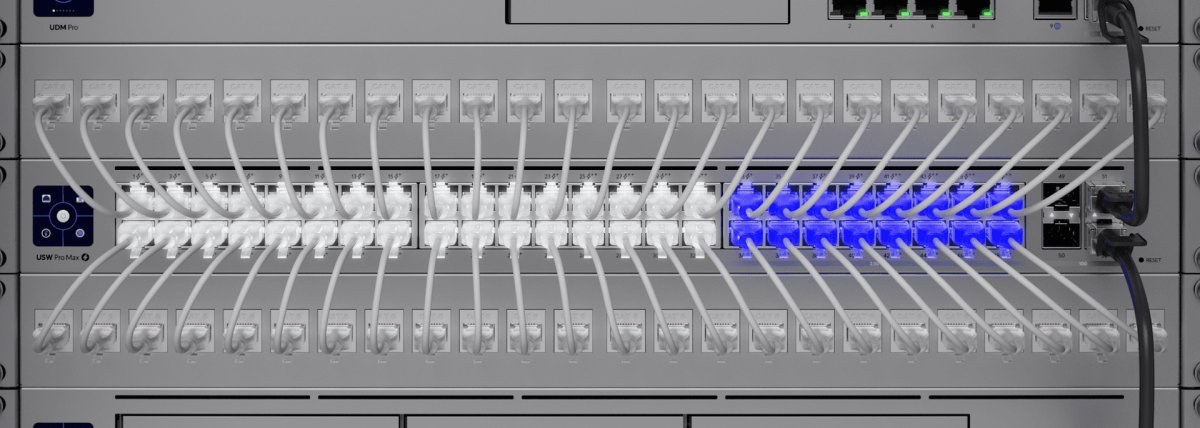

Etherlighting™ - porty s podsvietením, ktoré indikujú umiestnenie portu, rýchlosť/linku a natívne VLAN/sieť
podpora záložného napájania

Technické parametre
Sieťové rozhranie:

32x GbE RJ45
16x 1/2,5 GbE RJ45
4x 10G SFP+

Rozhranie PoE:

32x PoE/PoE+ (piny 1, 2+; 3, 6-)
16x 60W PoE++ (pár A 1, 2+; 3, 6-) (pár B 4, 5+; 7, 8-)

Rozhranie pre správu: Ethernet In-Band
Kapacita switchu: 224Gb/s
Celková neblokujúca priepustnosť: 112Gb/s
Celková napájacia PoE: 720W
Max. PoE výkon na port

PoE: 15,4W
PoE+: 30W
PoE++: 60W

Rozsah napätia režim PoE

PoE: 44-57V
PoE+: 50-57V

Max. spotreba energie: 100W (bez PoE výstupu)
LCM displej: 1,3" dotykový

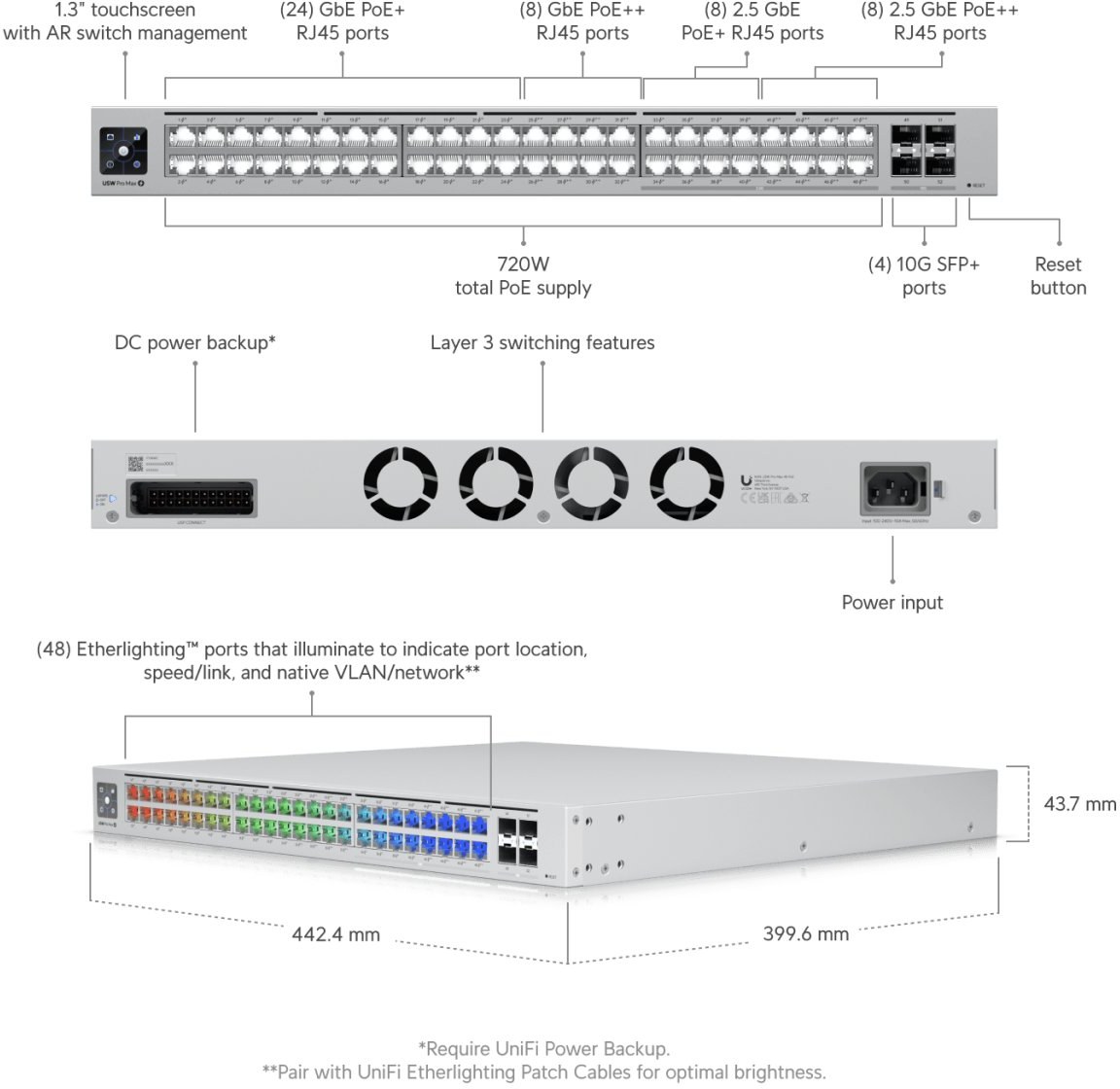

Rozmery: 442,4x399,6x43,7mm
Hmotnosť:

6,2kg bez úchytov
6,3kg s úchytmi

Technické parametre

Mechanical
Dimensions442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
WeightWithout mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)
Enclosure materialSGCC steel

Hardware
Management interfaceEthernet In-Band
Networking interface(32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
PoE interface(32) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput112 Gbps
Switching capacity224 Gbps
Forwarding rate166.656 Mpps
Power method(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supplyAC/DC, internal, 820W
Supported voltage range100—240V AC
Max. power consumption100W (Excluding PoE output)
Total available PoE720W
Max. PoE wattage per port by PSEPoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE modePoE: 44—57V
PoE+: 50—57V
LCM display(1) 1.3" touchscreen
ButtonFactory reset
Ambient operating temperature-5 to 40° C (23 to 104° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC

Switching Features
Layer 2 featuresIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 featuresDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

Etherlighting™
EthernetLocating
Speed/link
Native VLAN/network
SFP+Locating
Speed/link
Native VLAN/network

LEDs
SystemStatus
RPSStatus

Application Requirements
UniFi NetworkVersion 8.0.24 and later
