Ubiquiti UniFi Switch Pro Max 48, (rozbalené)

Ubiquiti UniFi Switch Pro Max 48

48-portový Layer 3 Etherlighting™ switch s 2,5 GbE

Etherlighting™ - porty s podsvietením, ktoré indikujú umiestnenie portu, rýchlosť/linku a natívne VLAN/sieť
podpora záložného napájania

Technické parametre
Sieťové rozhranie:

32x GbE RJ45
16x 1/2,5 GbE RJ45
4x 10G SFP+

Rozhranie pre správu: Ethernet In-Band
Kapacita switchu: 224Gb/s
Celková neblokujúca priepustnosť: 112Gb/s
Max. spotreba energie: 100W
LCM displej: 1,3" dotykový

Rozmery: 442,4x325x43,7mm
Hmotnosť:

4,8kg bez úchytov
4,9kg s úchytmi

Technické parametre

Mechanical

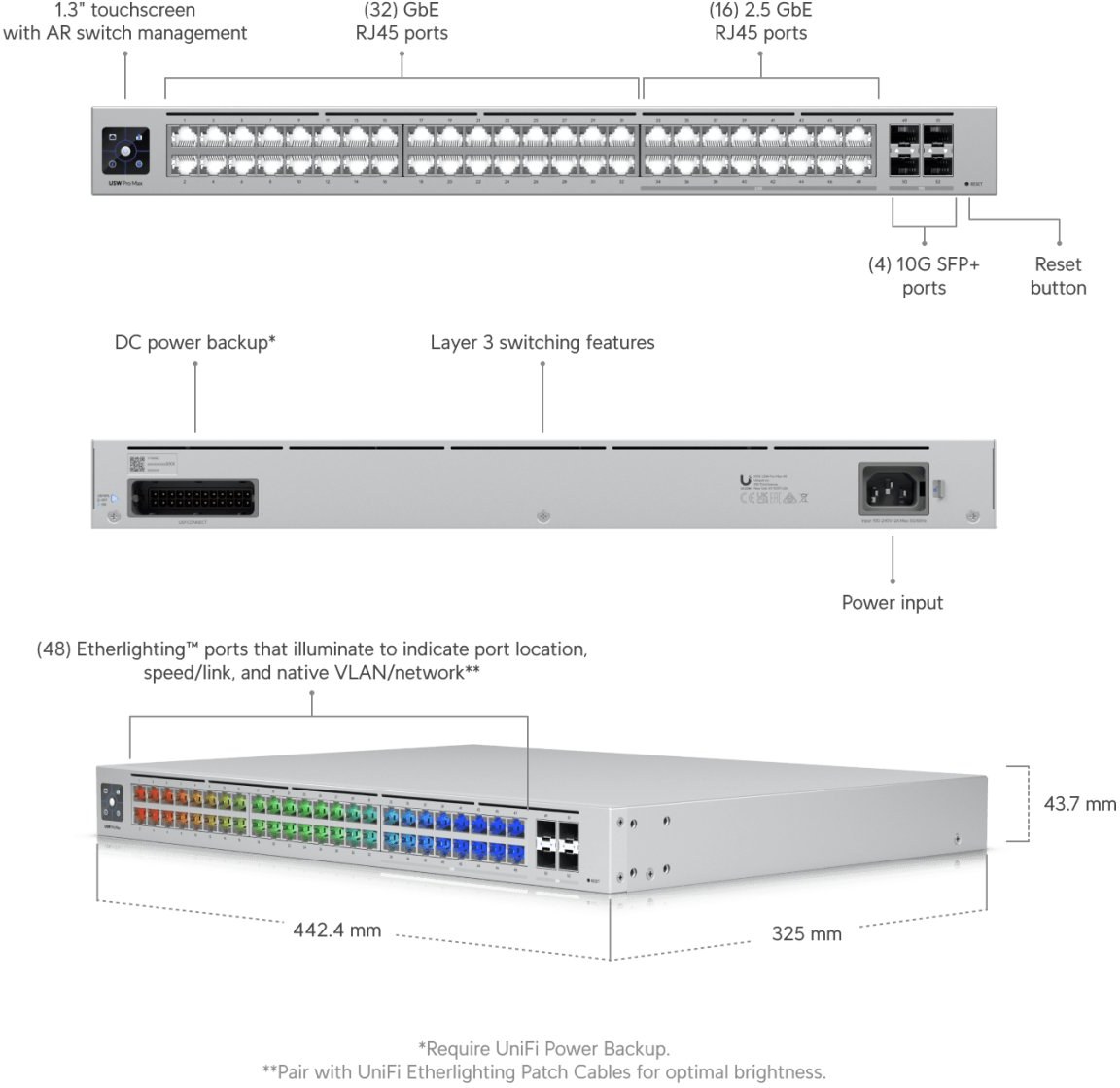

Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 4.8 kg (10.6 lb)
With mounting brackets: 4.9 kg (10.8 lb)
Enclosure material SGCC steel

Hardware
Management interface Ethernet In-Band
Networking interface (32) GbE RJ45 ports
(16) 1/2.5 GbE RJ45 ports
(4) 10G SFP+ ports
Total non-blocking throughput 112 Gbps
Switching capacity 224 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 100W
Supported voltage range 100—240V AC
Max. power consumption 100W
LCM display  (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs

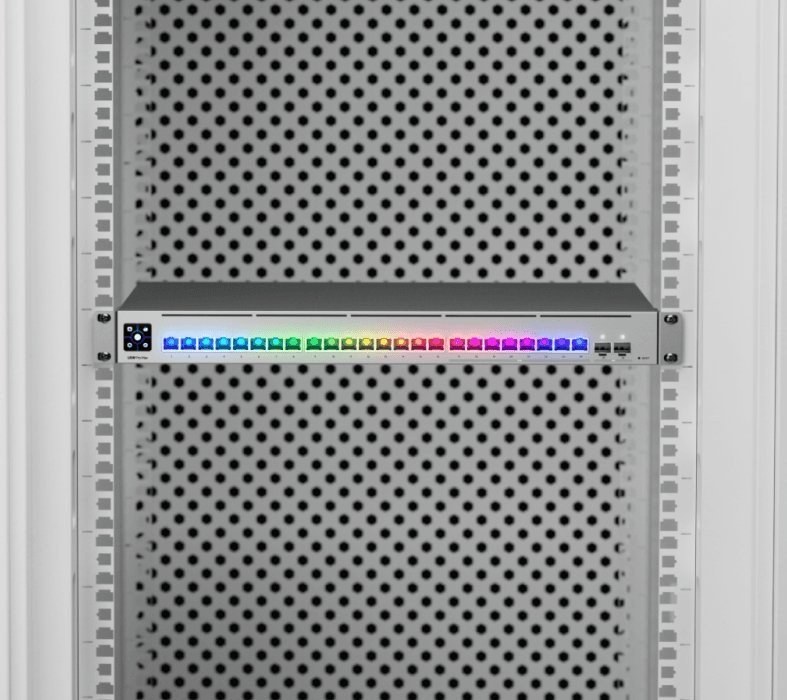

Etherlighting™
Ethernet  Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network

LEDs
System Status
RPS Status

Application Requirements
UniFi Network  Version 8.0.24 and later
