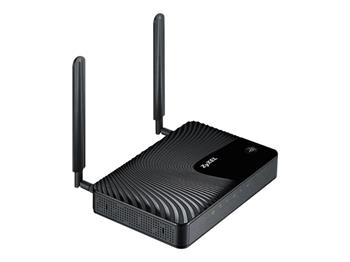

ZYXEL LTE3301 v3, N300 router/bridge

Technické špecifikácie:
Štandard: 802.11 b/g/n
Rýchlosť : 300 Mbps
Počet WAN: 0
Počet LAN: 4
Rýchlosť LAN portov: 10/100
Mobilná komunikácia: LTE (4G)
USB: Nie

LTE Air Interface
Standard 3GPP release 9, category 4
Supported mode Single-mode (LTE) or Multiple-mode (LTE/3G/2G)
Supported frequency Multiple-band support and varied by countries
LTE antenna 2 external
Antenna gain Vary by different frequencies
Spatial stream 2 streams (2x2)
Peak data rate 150 Mbps DL within 20 MHz bandwidth; 50 Mbps UL within 20 MHz bandwidth
Wi-Fi Air Interface
Standard IEEE 802.11 b/g/n (2.4 GHz)
Wi-Fi antenna 2 internal
Antenna gain 2 dBi
Spatial stream 2 streams (2x2)
Peak data rate 300 Mbps
Hardware Interface
SIM card slot UICC/USIM card slot x 1
Power On/off button x 1
WPS WPS button x 1
Reset Reset button x 1
LAN port 10/100 Mbps RJ-45 x 4
Wi-Fi on/off On/Off button x 1 -
LED Power, Internet, LTE status, LTE signal strength,
Wi-Fi status, LAN status
Power supply 110 - 240 VAC/12 VDC adaptor
Power consumption 12 W (peak)
IP Networking
Bridge mode Yes
Router mode Yes
IPv4/IPv6 IPv4/IPv6 dual stack
DHCP Client/server/relay
IP assignment Static or dynamic IP assignment
VPN pass through PPTP/L2TP/IPSec pass through
NAT NAT server (port forwarding), max. 4096 sessions
QoS Yes
VLAN Yes (At LAN side)
Wi-Fi Security
WEP 64/128-bit
WPA/WPA2/WPA2-PSK Yes
MAC filtering 32 address supported
Firewall Yes
Management
Remote management Secure management via Web
Firmware upgrade Over-The-Air (OTA) by HTTP/GUI or TR-069
Physical Specifications
Item Dimensions (WxDxH)(mm/in.) 186 x 120 x 30/7.32 x 4.72 x 1.18
Included accessories • LTE antenna x 2 • Power adaptor • Ethernet cable
Environmental Specifications
Operating Temperature 0°C to 40°C/32°F to 104°F
Humidity 10% to 90% (non-condensing)
Storage Temperature -10°C to 70°C/14°F to 158°F
Humidity 0% to 95% (non-condensing)
