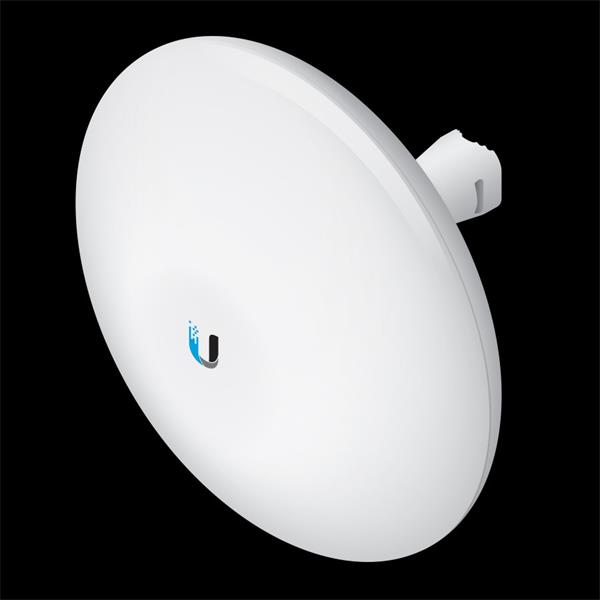

Ubiquiti NanoBeam 5GHz 19dbi AC

Ubiquiti NanoBeam 5GHz 19dbi AC

Technická specifikace:
Dimensions (Mount Included) 189 x 189 x 125 mm
Weight (Mount Included) 530 g
Operating Frequency Worldwide: 5150 - 5875 MHz
Gain 19 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Loading 45.4 N @ 200 km/h
Wind Survivability 200 km/h
Certifications CE, FCC, IC
Mounting Pole-Mount (Kit Included)
Wall-Mount (Not Included)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 80° C
Operating Humidity 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4
Equivalent: MIL-STD-810 G Method 506.5
