AEROCOOL Xpredator II Black

AEROCOOL Xpredator II Black

Špičkový FullTower připravený pro dokonalé chlazení pomocí až 6-ti ventilátorů nebo dvou vodních chlazení.

SHELL-LIKE VENT
Shell-like vent structure design give an unique look.
Open and shut switch for the top ventilation.

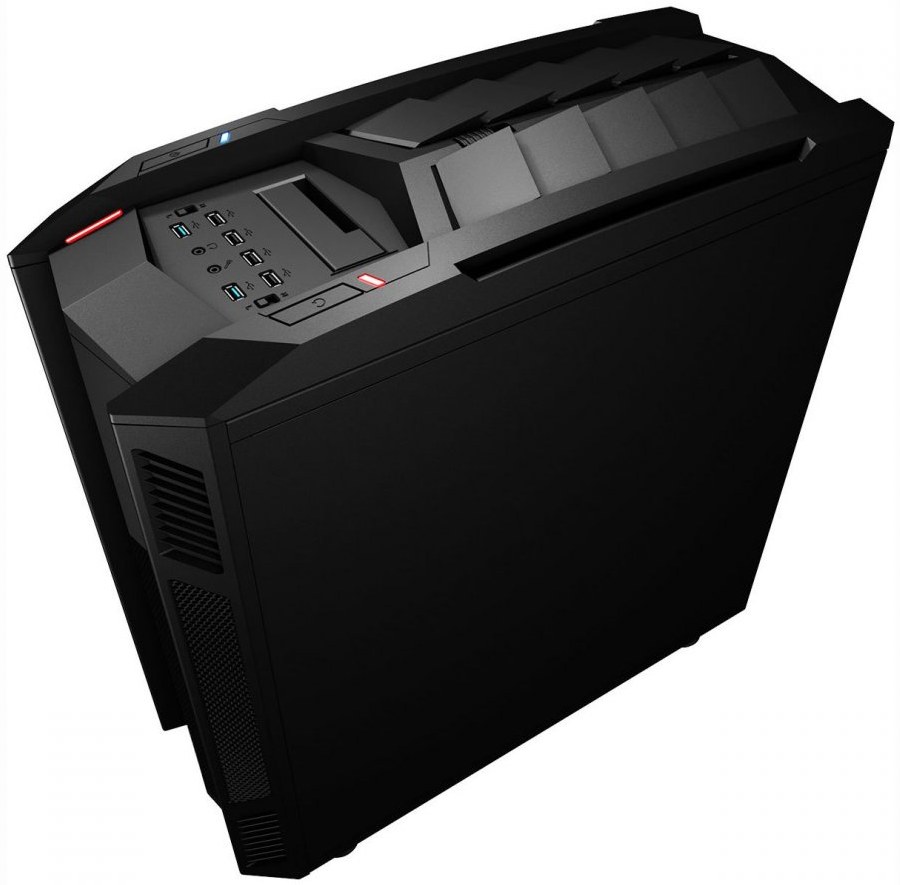

TOP PANEL I/O
External 2.5”/3.5” HDD docking on top panel for easy access.

DUAL WATER-COOLING
Top panel supports the installation of either 240mm or 280mm water-cooling system.
Accommodates an internal 120mm radiator at the rear plate.

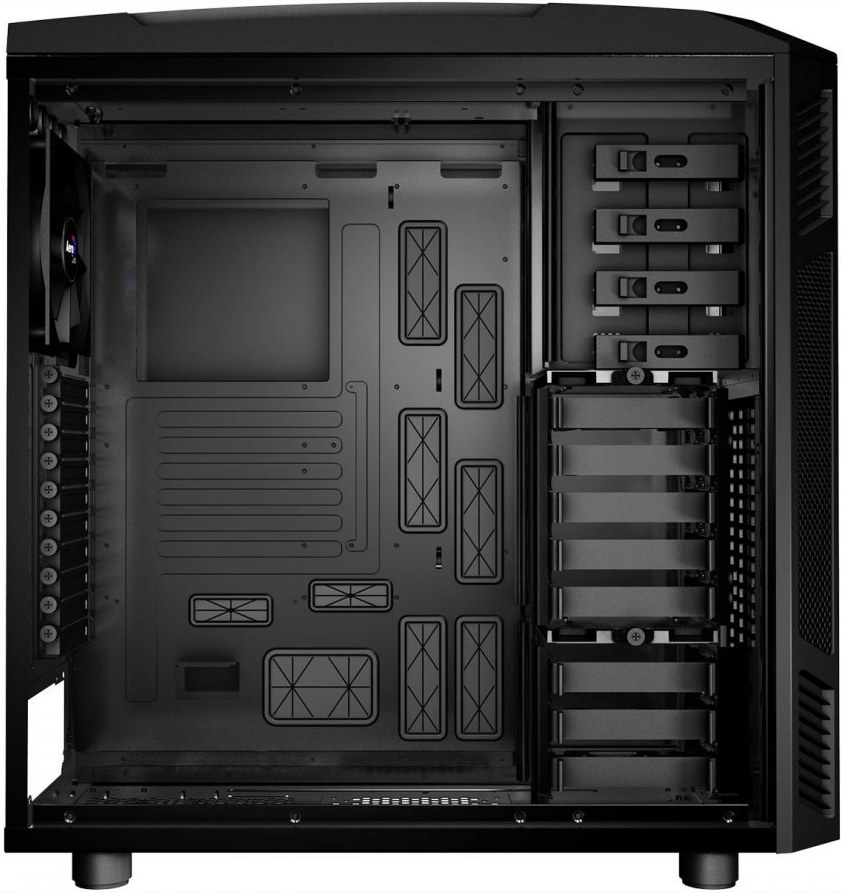

REMOVABLE CAGE
Removable 3.5" HDD cage can support long VGA card up to 465mm.
Install either 3 x 2.5" HDD/SSD or 3 x 3.5" HDD.(Without the HDD cage)

PSU DUST FILTER
Washable dust filter included.

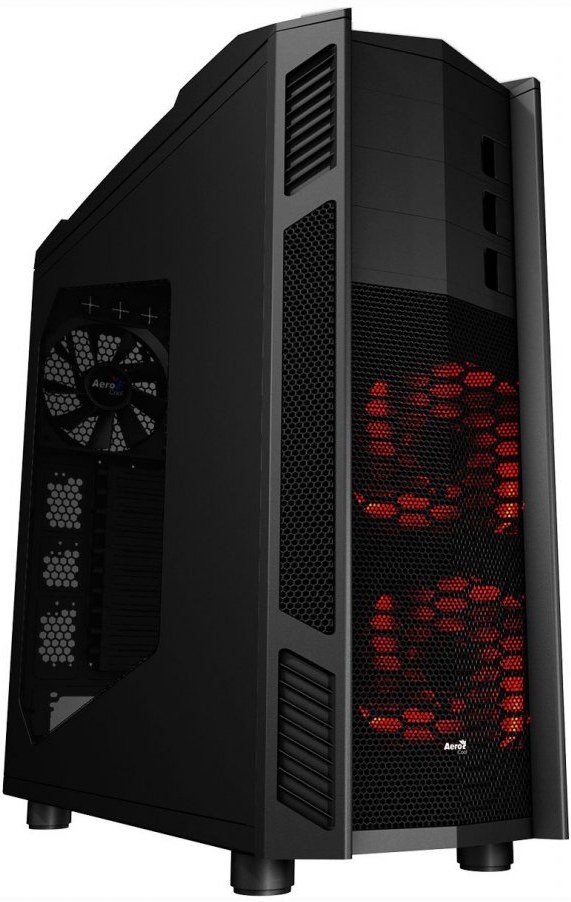

ULTRA-AIR COOLING
Large acrylic side window design .
Superb airflow system install up to 6 fans !

SPECIFICATION



Model Name XPredator II
Case Type Full Tower
Steel Thickness 1.0 / 0.8 mm
Motherboards E-ATX / XL-ATX / ATX / Micro ATX / Mini ITX
Case Dimensions 232 x 559 x 595 mm(W x D x H ) Overall
5.25” Drive Bays 3 (Exposed)
3.5” Drive Bays 8 (Hidden, Internal 3.5” HDD Tray)
2.5” Drive Bays 8 (Hidden, Internal 3.5” HDD Tray)
Expansion Slots 10
GPU Clearance 342 mm / 465 mm (Without HDD Cage)
I/O Ports 2 x USB3.0, 4 x USB2.0 , HD Audio + MIC, 2 x Fan Controller, HDD Docking
Height limit for CPU coolers 170mm
Air Cooling System
Top : 120/140mm fan x2 (2 x 140mm Black fan Included )

Front : 120/140mm fan x2 (2 x 140mm LED fan Included )

Rear : 120mm/140mm fan x1 (1 x 140mm Black fan Included )

Bottom : 120mm/140mm fan x1 (Optional)

Water Cooling System
Rear : 120mm Radiator Installation

Top : 1 x 240/280mm Radiator Installation

Net Weight 13.34Kg (Gross Weight 15.3kg)
Power Supply Standard ATX PS2 (Optional)



COOLING SYSTEM

XPredator II [ Rear ] [ Front ] [ Top ]
Black Edition    LED Fan
White Edition    LED Fan


Fan 140 x 140 x 25 mm 140 x 140 x 25mm 140 x 140 x 25mm
Rated voltage 12V 12V 12V
Operating Voltage Range 10.8~13.2V 10.8~13.2V 10.8~13.2V
Starting voltage 7V 7V 7V
Rated current 0.16A+10%Max 0.20A+10%Max 0.16A+10%Max
Power consumption 1.92W+10%Max 2.4W+10%Max 1.92W+10%Max
Speed 1200+-200RPM 1200+-200RPM 1200+-200RPM
Max AirFlow 48.7CFM 48.7CFM 48.7CFM
Max Static Pressure 1.43mm-H2O 1.43mm-H2O 1.43mm-H2O
Noise (dBA) 24.8dBA 24.8dBA 24.8dBA
MTBF 30,000 hours 30,000 hours 30,000 hours
