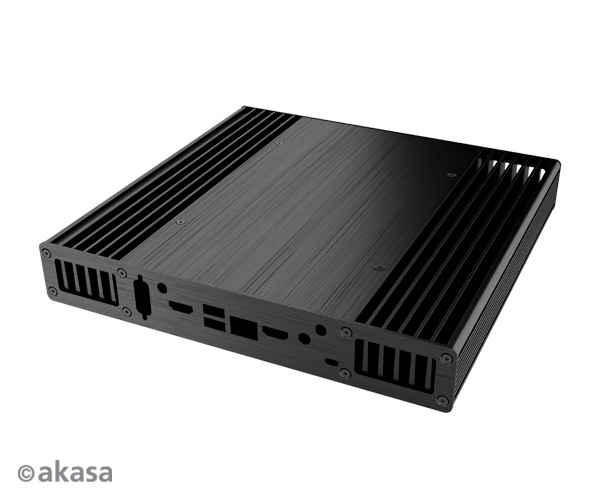

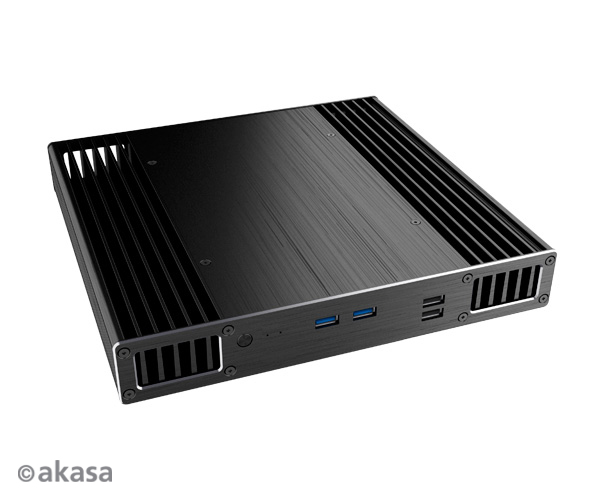

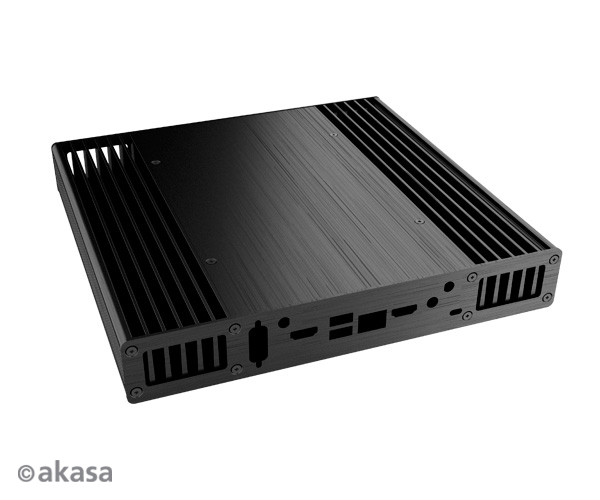

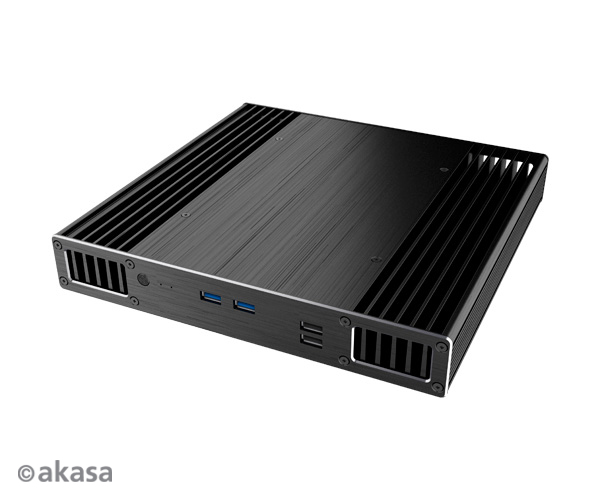

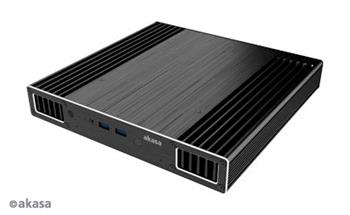

AKASA A-NUC39-M1B Plato X7D Low profile fanless case for Intel® NUC support 7th Generation Intel® NUC board

AKASA A-NUC39-M1B Plato X7D Low profile fanless case for Intel® NUC support 7th Generation Intel® NUC board

Plato X7D - Nízkoprofilová pasívní skříň pro Intel® NUC podporující 7th Generation Intel® NUC základní desky (Dawson Canyon)

Plato X7D - Low profile fanless case for Intel® NUC support 7th Generation Intel® NUC board (Dawson Canyon)

support 2.5" SATA HDD / SSD• Aluminium fanless CPU cooling design
• Stylish front panel diamond effect
• Provide one rear serial port
• Compatible with the following Intel® NUC Board:
  NUC7i7DNBE / NUC7i7DNKE / NUC7i7DNHE
  NUC7i5DNBE / NUC7i5DNKE / NUC7i5DNHE
  NUC7i3DNBE / NUC7i3DNKE / NUC7i3DNHE

* Stylish front panel diamond edge finish
* Two front panel USB 3.0 ports
* Provide one rear serial port

Material Aluminium
Motherboards types UCFF 4" X 4"
Motherboard support Intel® NUC Board (kit):
NUC7i7DNBE / NUC7i7DNKE / NUC7i7DNHE
NUC7i5DNBE / NUC7i5DNKE / NUC7i5DNHE
NUC7i3DNBE / NUC7i3DNKE / NUC7i3DNHE
Dimensions 247 x 240 x 38.5mm (W x D x H)
Drive bays 2.5" SSD/HDD (up to 9.5mm high)
Front I/O Power button, power and HDD led, USB 3.0 port x 2, USB 2.0 port x 2
Antenna fitting holes 2
Serial port 1
Security Kensington lock
VESA mounting Support
Optional power adaptor AK-PD065-01M
Product code A-NUC39-A1B
A-NUC39-M1B
