Asus TAM11 Second Edition

Asus TAM11 Second Edition

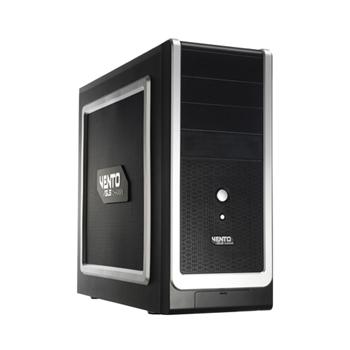

TA-M1

TA-M1
Metal Mesh Panel for Excellent Heat Dissipation
The VENTO TA-M1 chassis combines maximum thermal performance and user-friendly setup in stylish, elegant outlook

Metal Mesh Panel for Excellent Heat Dissipation

The TA-M1 chassis utilizes a well-built yet aesthetically pleasing design that incorporates a user-friendly screw-less design for easy installation; while providing an advanced ventilation system that maximizes thermal efficiency for key components – especially the CPU and graphics cards.

Excellent Ventilation for Maximized Thermal Efficiency
The TA-M1 features a metal mesh design for maximum ventilation; while supports four 12cm fans for optimal airflows, and unique venting holes around the HDD racks enhances ventilation. Also, the removable side fan rack enables easy adjustments for the best thermal advantages. It is even able to support either a single graphics card of up to 380mm or SLI/Crossfire cards of up to 280mm that enables long and continuous operations for the most powerful processing platforms.

Considerate Design for Easy Installation
Built around user-convenience, the TA-M1 provides a patented screw-less design for the ODD and PCI slots to make it simple and fast for users to install their PCs. Furthermore, dust filters for the ODD cover and the front fan rack are easily removable – allowing for easy cleaning and maintenance; while the addition of a 5.25" rack that is convertible into a 3.5" version suitable for card readers and FDDs - allows for great expandability options.

Exquisite Design Details
The TA-M1 employs a matte black-coated paint finish and a silver frame that exudes an elegant feel to lend an air of distinguished computing to any environment. Stylish Vento logos are embossed into both sides of the chassis; while the VENTO logo plate is subtly highlighted on the front plate. The TA-M1 also utilizes foot stands that are derived from stereos - enhancing the overall stability of the whole chassis.

Specifications
Dimension w/Bezel (W x H x D) 196 (W) x 437 (H) x 472 (D) mm
Case Size ATX Mid Tower
MB Form Factor ATX; microATX
Drive Bays  4 x Ext x 5.25" Bay

4 x Int x 3.5" Bay

System Fan (mm) Support Front: 120 mm x 1
Rear: 120 mm x 1
Side: 120 mm x 2

Expansion Slots 7
Weight N.W. 6.2 kg
G.W. 7.1 kg
Color Options (Front/Band/Side)  Black/Black/Black

Front I/O Configuration USB2.0 + HD Audio

Note One of the external 5.25" drive bays is converitable to 3.5" drive bay
