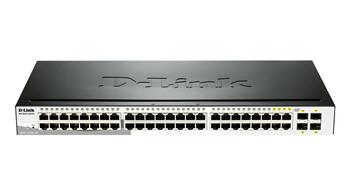

D-Link DGS-1210-52P 48x10/100/1000 Smart Sw,4x SFP

D-Link DGS-1210-52P 48x10/100/1000 Smart Sw,4x SFP OVERVIEW D-Link’s DGS-1210 Series Gigabit Smart+ Switch with Fibre Uplinks integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility, and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritised for a smoother voice performance. The DGS-1210-28P/52/52P feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance. SPECIFICATIONS INTERFACE Number of 10/100/1000BASE-TX ports * 48 ports Number of SFP ports * 4 ports PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget) * 802.3af/802.3at/24 ports/193W PERFORMANCE Switch Capacity * 104 Gbps 64-Byte Packet Forwarding Rate * 77.4 Mpps MAC Address Table Size * 16K Packet Buffer * 3 MB per device Jumbo Frame * Up to 9,216 Bytes PHYSICAL & ENVIRONMENTAL Power Consumption (Standby/Maximum) * 28.2W / 270.2W (PoE) Power Input * 10 to 240 VAC, 50/60HZ internal universal power supply Dimensions (W x D x H) * 440 x 430 x 44 mm Weight * 5.66 kg Ventilation * smart fans Heat Dissipation * 912.96 BTU per hour Temperature * Operating: -5° to 50°C * Storage: -20° to 70°C Humidity * Operating: 0% ~ 95% non-condensing * Storage: 0% ~ 95% non-condensing Certification * CE Class A, VCCI Class A, FCC Class A, BSMI, CCC, C-Tick, cUL, CE (LVD) SOFTWARE FEATURE L2 FEATURES * MAC Address Table - 16K entries * IGMP Snooping - IGMP v1/v2 Snooping - Supports 256 IGMP groups - Supports at least 64 static multicast addresses - IGMP per VLAN - Supports IGMP Snooping Querier * Loopback Detection * 802.3ad Link Aggregation: - Maximum of 26 groups/8 ports per group * LLDP * LLDP-MED * Jumbo Frame - Up to 9,216 bytes * Spanning Tree Protocol - 802.1D STP - 802.1w RSTP * Flow Control - 802.3x Flow Control - HOL Blocking Prevention * Port Mirroring - One-to-One - Many-to-One - Supports Mirroring for Tx/Rx/Both * Multicast Filtering - Forwards all unregistered groups - Filters all unregistered groups * Configurable MDI/MDIX - MLD snooping v1/v2 (256 groups) VLAN * 802.1Q * VLAN Group - Max. 256 static VLAN groups * Configurable VID from 1 - 4094 * Asymmetric VLAN * Auto Voice VLAN - Max. 10 user-defined OUI - Max. 8 default OUI * Auto Surveillance VLAN Quality of Service (QoS) * 802.1p Quality of Service * 8 queues per port * Queue Handling - Strict - Weighted Round Robin (WRR) * Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) * QoS based on: - 802.1p Priority Queues - DSCP - ToS - IPv6 Traffic Class - TCP/UDP port L3 Features * IP Interface - Supports 1 interface * IPv6 Neighbor Discovery (ND) Access Control List (ACL) * Max. 50 access list * Max. 768 rules shared by IPv4, MAC and IPv63 * Each rule can only be associated with a single port * ACL based on - 802.1p priority - VLAN - MAC address * Ether type * IP address * DSCP * Protocol type * TCP/UDP port number * IPv6 Traffic Class Security * Broadcast/Multicast/Unicast Storm Control * D-Link Safeguard Engine * DHCP Server Screening * IP-MAC-Port Binding (Smart Binding) - Supports 512 address binding entries - ARP Inspection - ARP + IP Inspection - Supports DHCP Snooping * 802.1X Port-based Access Control * ARP Spoofing Prevention - Max. 64 entries * Traffic Segmentation * SSH v2 * SSL - Supports v1/v2/v3 * Port Security - Supports up to 64 MAC addresses per port * Duplicate address detection AAA * 802.1X Authentication - Supports local/RADIUS database - Supports port-based access control - Supports EAP, OTP, TLS, TTLS, PEAP * IPv6 RADIUS Server * Support MD5 authentication MIB/RFC Standards * RFC 783 TFTP * RFC 951 BootP/DHCP Client * RFC 1157 SNMP v1, v2, v3 * RFC 1213 MIB II * RFC 1215 MIB Traps Convention * RFC 1350 TFTP * RFC 1493 Bridge MIB * RFC 1769 SNTP * RFC 1542 BootP/DHCP Client * RFC 1901 SNMP v1, v2, v3 * RFC 1907 SNMP v2 MIB * RFC 1908 SNMP v1, v2, v3 * RFC 2131 BootP/DHCP Client * RFC 2138 RADIUS Authentication * RFC 2139 RADIUS Authentication * RFC 2233 Interface Group MIB * RFC-2246 SSL * RFC 2475 * RFC 2570 SNMP v1, v2, v3 * RFC 2575 SNMP v1, v2, v3 * RFC 2598 CoS * RFC 2618 RADIUS Authentication * RFC 2819 RMON v1 * RFC 2865 RADIUS Authentication * RFC 3164 System Log * RFC 3195 System Log * RFC 3411-17 SNMP * D-Link Private MIB * LLDP MIB * Zone Defense MIB * 2233 Interface Group MIB OAM * Cable Diagnostics * Factory Reset Management * Web-based GUI * D-Link Network Assistant Utility * Compact CLI * Telnet Server * TFTP Client * Configurable MDI/MDIX * SNMP - Supports v1/v2c/v3 * SNMP Trap * Backup/Upgrade firmware * Smart Wizard * Upload/Download Configuration file * System Log - Max. 500 log entries * BootP/DHCP Client * SNTP * ICMP v6 * IPv4/v6 Dual Stack * DHCP Auto Configuration * Time Setting - SNTP * RMONv1 * Trusted Host GREEN V3.0 TECHNOLOGY Power Saving by: * Link Status * Time-based PoE: PoE ports can be turned on/off by port or system through schedule * LED Shutoff * System Hibernation * Port Shutoff
