D-Link DIR Wireless 501 Router with 4 Port 10/100 Switch

D-Link DIR Wireless 501 Router with 4 Port 10/100 Switch

DIR-501 Wireless N 150 Router

Specifications
Standards • Based on IEEE 802.11n Technology
• IEEE 802.11g
• IEEE 802.3
• IEEE 802.3u

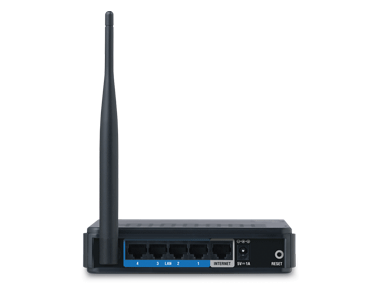

Interface Type • 4 10/100 LAN Ports
• 1 10/100 WAN Port

Antenna Type • External Antenna

Security • Wi-Fi Protected Access (WPA™, WPA2™)
• Wi-Fi Protected Setup™ (WPS)• Push Button
• PIN


Advanced Firewall Features • Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec

Device Management • Internet Explorer® v7 or later; Mozilla Firefox® v3.0 or later; or other Java-enabled Browsers

LEDs • Power
• Internet
• WLAN (Wireless Connection)
• LAN (10/100)

Certifications • FCC Class B
• IC
• Wi-Fi®

Dimensions • Item: 5.7” x 4.4” x 1.2” (113.2mm x 147.5mm x 31.5mm)
• Packaging: 2.7” x 10.8” x 8.2” (68.6mm x 274.3 mm x 208.3mm)

Temperature • Operating: 32°F to 104°F (0°C to 40°C)
• Storage: -4°F to 149°F (-20°C to 65°C)

Humidity • Operating: 10% - 90% Non-condensing
• Storage: 5% - 95% Non-condensing

Weight • Item: 1 lbs
• Packaging: 1.5 lbs

Warranty • 1 Year Limited2

Recommended System Requirements • For Optimal Wireless Performance:
Use with Wireless N USB Adapter (DWA-135)

Minimum System Requirements • Computer with:• Windows® 73, Windows Vista®, Windows® XP SP33, or Mac OS® X (v10.4)4
• Internet Explorer® v7 or Mozilla® Firefox® v3.0
• Network Interface Card

• For Internet Access:• Cable or DSL Modem
• Subscription with an Internet Service Provider (ISP)


Package Contents • Wireless N 150 Router
• Ethernet Cable
• Power Adapter
• Quick Install Guide
