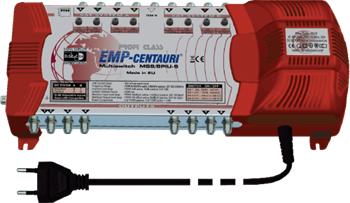

DiSEqC prepínač EMP-CENTAURI MS9/8PIU-6 V10 Multiswitch - 2 satelitné

DiSEqC prepínač EMP-CENTAURI MS9/8PIU-6 V10 Multiswitch - 2 satelitné

9in/8out standalone multiswitch for distribution of 8 SAT IF signals including terrestrial for up to 8 users

Specifications of MS9/ 8PIU-5 V10
Frequency range LNB inputs   950-2300 MHz
Terr. input   5-862 MHz (passive)

40-862 MHz (active)
Outputs   5-2300 MHz (passive)

40-2300 MHz (active)
Control   DiSEqC 1.0 (2.0) commands
Insertion loss 950-2300 MHz   0 dB avg
5-862 MHz (passive)   16 dB avg
40-862 MHz (active)   0 dB avg
Sat. inputs isolation Between V/H polarisations   20 dB min
Between low/high bands   20 dB min
Between sat. systems   25 dB min
Maximum input level* Sat.   90 dBµV avg
Terr.   100 dBµV avg (passive)

90 dBµV avg (active)
Maximum output level* Sat.   90 dBµV avg
Terr.   84 dBµV avg (passive)
90 dBµV avg (active)
Power consumption From each receiver   50 mA (18 V)
From internal power supply   3 W (passive)
4.5 W (active) + LNB
Terr. preamplifier supply 150 mA max (12 V DC)
Dimensions (w,d,h) 34.7 x 15.2 x 8.7 cm
(power cord length 130 cm)
Temperature range -30 ~ +70 °C

*Terr.: EN 50083-3/60dB IMA3 [dBµV]; SAT: EN 50083-3/35dB IMA3 [dBµV]
