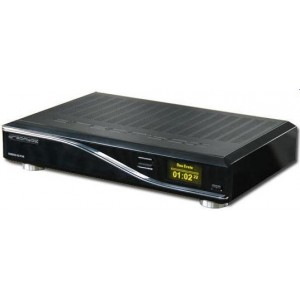

Dreambox DM-8000HD PVR

Dreambox DM-8000HD PVR

Dreambox 8000HD - Hi-End HDTV prijímač s operačným systémom LINUX so 400MHz procesorom, 2 x čítačka kariet Dreamcrypt, 4x DVB CI šachta, 2 x tuner DVB-S2 (plug&play, podpora formátov MPEG-2, MPEG-4, rozlíšenie: 1080i, 720p, 576p, 2x SATA možnosť priameho nahrávania na 3,5 HDD (nie je v dodávke), čítačka kariet Compact Flash, prepojenie s PC pomocou Ethernet 10/100, 3 x USB 2.0, RS 232, S/PDIF, DVI výstup, S-Video výstup, 2x Scart.

Technické data

400 MHz MIPS Procesor
Enigma 2, Linux Operačný systém
Veľký  OLED - Displej
MPEG-2 /H.264 Hardware decoding
Dvojitý DVB-S2 tuner
2 x Plug&Play tuner zásuvka
pre možnosť vloženia DVB-S, DVB-C alebo DVB-T tunera
4 x DVB Common-Interface Slot
2 x Čítačka kariet (Dreamcrypt CA)
V.24/RS232 Interface
Vstavaný Compact Flash a SD Card Slot
10/100 MBit Ethernet Interface
3 x USB 2.0 (1 x vpredu, 2 x vzadu)
S/PDIF Interface pre digitalny bit stream výstup (AC-3)
2 x Scart rozhranie
S-Video
YPrPb (Component)
DVI
Audio/Video cinch out
128 MByte Flash, 256 MByte RAM
2 x SATA
    - podpora pre interný HDD 3,5"
    - podpora pre SATA SlimLine DVD mechaniku
vstavané WiFi
nelimitovaný zoznam programov pre TV/Radio
zmena programu za menej ako 1 sekundu
automatické vyhľadávanie programov
priamy zoznam buketov
EPG (elektronický programový sprievodca)
Videotext Dekóder
viacúrovňové ovládanie LNB (DiSEqC)
OSD vo viacerých jazykoch a podpora skinov


DreamBox DM8000HD technical data

DBS-Tuner:
Frequency Range 950...2150 MHz
QPSK Demodulation EN 302 307
Signal Level - 65 dBm...- 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK and 8PSK
FEC Viterbi and Reed-Solomon
Viterbirate 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
Roll-off Factor 35 %

Common-Interface:
Common-Interface Power Consumption max. 0,3A/5V

Video decoder:
Video Compression MPEG-2 / H.264 and MPEG-1 compatible
Video Standard PAL G/ 25 Hz, NTSC
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, coaxial (AC3)

Video parameter:
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:
Output: FBAS, RGB, S-Video

VCR-Scart:
FBAS

Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware

Ethernet:
10/100 MBit compatible interface
Function: Update of Firmware

USB:
USB 2.0 connector (3x)

SATA Interface:
for internal HDD
Compact Flash - Reader
SD Card - Reader

LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
LNB power off in Standy mode

Count of active satellite position:
DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)

Power consumption:
< 30W (in operation, horizontal polarization / 400mA LNB current)
< 25W (in operation, no LNB)
< 1W (Deep-Standby-Mode)

Input voltage:
230V / 50 Hz alternating current +/- 15%
110V / 60 Hz alternating current +/- 15%

Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 430 mm x 280 mm x 90 mm
Weight: 3,0 kg  without HDD a. DVD
