Epson Interactive Unit - ELPIU01

Epson Interactive Unit - ELPIU01

Works with:
http://www.epson.com/cgi-bin/Store/jsp/Product.do?sku=V12H415020#1

Interactive learning made easy and affordable.

Get premium interactive whiteboard quality and functionality at a fraction of the price. The Epson BrightLink Solo is an interactive module that connects directly to your computer, via a USB cable, and works with new or existing projectors. No need to worry about which size interactive board you can afford. The BrightLink Solo gives you an interactive area as large as 96" (WXGA) and 102" (XGA), all for one low price. Now, it’s easy to transform virtually any wall or whiteboard into an interactive learning area. With easy installation and setup, the Epson BrightLink Solo offers an affordable interactive solution that will help you engage your audience and bring interactivity to more students and classrooms than ever before.

Key Features
   Affordable interactive solution — premium interactive whiteboard quality and functionality, at a fraction of the price

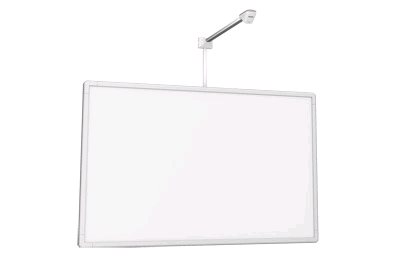

   The practical way to maximize classroom space — works with your new or existing projector, plus any plain wall or standard whiteboard
   Maximize your interactive area — set the size, as needed, without being limited by the budget; up to 96" (WXGA) or 102" (XGA)

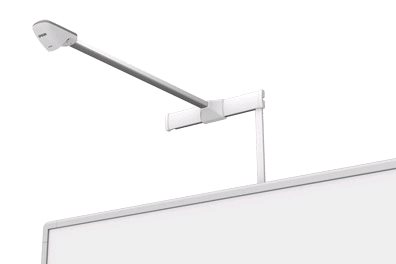

   Easy installation — mounts on a flat wall with just a few simple steps (wall mounting plates included)
   Everything you need to get started — includes two interactive pens with rechargeable batteries and charger, plus easy-to-use interactive annotation software
   Easy integration — cross-compatible with most instructional software applications; optional RM Easiteach solution also available

What's in the Box

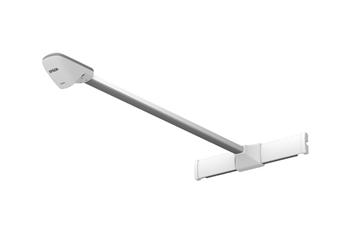

   BrightLink Solo™ Interactive Module (IU-01)
   Two interactive pens
   Pen tray
   USB cable (attached)
   Easy Interactive driver CD
   User's Guide CD
   TeamBoard Draw CD
   Long wall plate
   Short wall plate
   Wall plate cover and cover caps
   Four AAA batteries
   Four AAA rechargeable NiMH batteries with charger
   Quick Setup Guide
   Registration cards
   PrivateLine card


Size (projected distance):

   XGA (4:3) – 63" to 102"
   WXGA (16:10) – 60" to 96"
   Widescreen (16:9) – 58" to 93"

Input Signal: Input/Output: I/F: USB Slave-A Type

Interactivity:

   Technology: Infrared
   Input Device: Digital infrared pen
   PC Connection: USB
   Multiple Input Support: No
   Easy Interactive Driver Requirements — Windows® 2000 SP4 or later, Windows XP SP2 or later (Home Edition/Professional), Windows Vista® (All editions except for Starter 32 bit only), Windows 7 (32 or 64 bit), Mac OS® X 10.3.x, 10.4.x, 10.5.x, 10.6.x
   TeamBoard Draw Software Requirements — Windows 7 (32 or 64 bit), Windows Vista (32 or 64 bit), Windows XP SP3 (32 bit), Mac OS X 10.5 or later
   RM Easiteach Educational Software Option Available

Operating Temperature:

   41° to 95° F (5° to 35° C)
   Storage: 14° to 140° F (10° to 60° C)

Power Supply Voltage: 5 V

Power Consumption: 180 mA

Dimensions:

   Receiver unit: 41.4" x 4.7" x 3.5" (W x D x H)
   Long wall plate: 19.0" x 0.6" x 2.8" (W x D x H)
   Short wall plate: 4.8" x 0.6" x 2.8" (W x D x H)

Weight:

   Without wall plate: Approx. 3.2 lb
   With long wall plate: Approx. 5.08 lb
   With short wall plate: Approx. 3.97 lb
